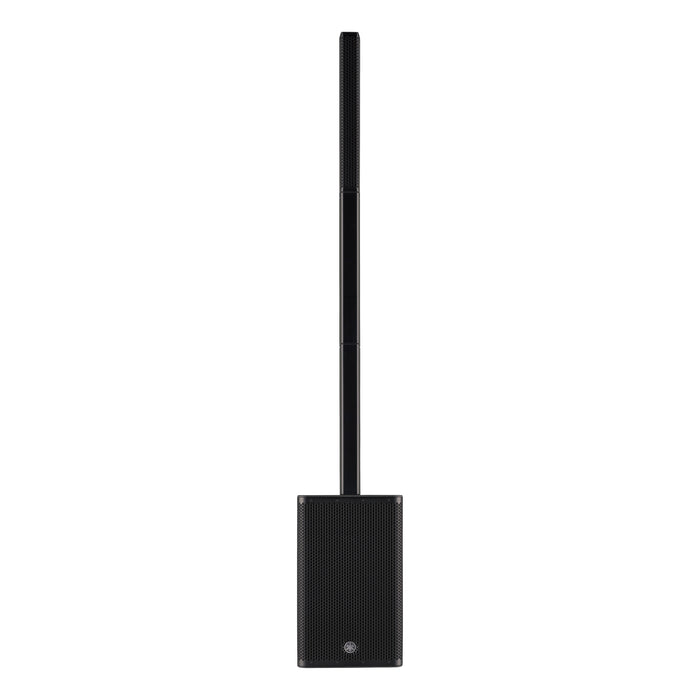

Yamaha Stagepas 1K MKII 1100-Watt Bluetooth Portable PA System with Cover (Stagepas1K MK2)

The STAGEPAS 1K mkII is an all-in-one portable PA system that allows you to quickly and easily transform any location into your stage, delivering professional-level audio performance with a simple setup that enables aspiring artists to focus on their music and get the most out of their performances. Adding an even higher sound pressure level and more flexible remote functionality than its predecessor, the second-generation STAGEPAS 1K mkII boasts the same combination of lightweight cabinet design, professional mixing functions, and simple operability, that has elevated the STAGEPAS all-in-one package above all other portable PAs. By adopting a concert-quality mixer and speaker, we have raised the bar for portable PA by utilizing Yamaha’s unique experience and know-how developed over decades of producing innovative, professional audio equipment from every stage of music engineering and production.

VIDEO

FEATURES

• 1100W power output
• Biggest in the class 12-inch subwoofer for low frequency
• 1.5-inch x10 slim line array speaker for high frequency

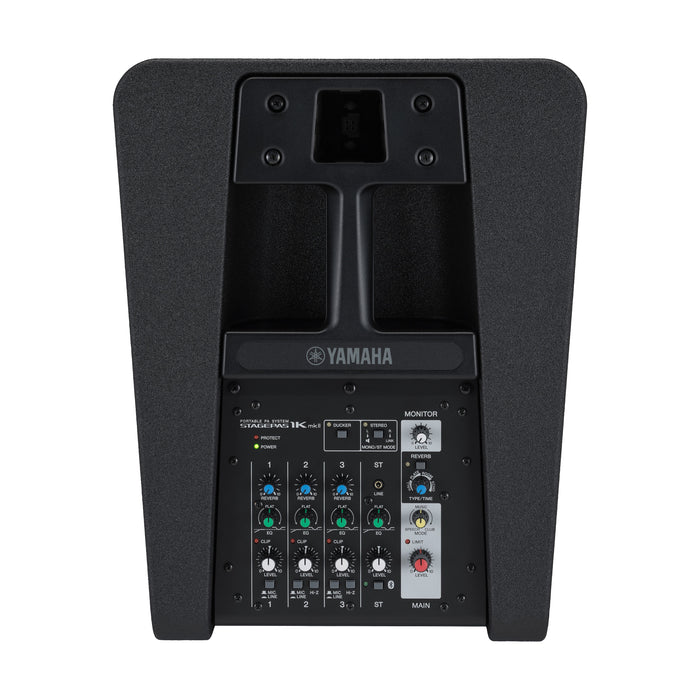

• Digital mixer (3 mono mic/line + 1 stereo line)
• Multi band comp “MODE” for master output
• 1-knob EQ per channel
• High resolution SPX digital reverb (4 types, parameter control)
• Priority Ducker for stereo channel
• 4 band PEQ per channel via remote control APP “STAEGPAS Controller”
• 2x Hi-Z (high impedance) inputs
• Link out and monitor out
• Dedicated cover included

SPECIFICATIONS

• Outline
• Type
• Powered subwoofer with a line array speaker
• Mixing capability
• Mixing channels
• 5 (Mono x3 + Stereo x1)
• Input channel functions
• Hi-Z: CH2/3, 1-knob EQ: CH1-3/ST
• Output channel functions
• MODE (SPEECH/MUSIC/CLUB)
• I/O
• Inputs
• Mono x3 (mic/line) + Stereo x1 (line) / Mono x2 (line), Link in x1
• Outputs
• Link out x1, Monitior out x1
• Bluetooth
• Bluetooth Ver.5.0, A2DP (SBC, AAC)
• Control and others
• Reverb foot switch, STAGEPAS Controller (iOS/Android app)
• On-board processors
• DSP
• SPX digital reverb (4 program, parameter control)
• General specifications
• Speaker type
• Powered subwoofer: Bass-reflex type, Line array speaker: Enclosed
• Frequency range (-10dB)
• 37 Hz - 20 kHz
• Coverage area
• H170ﾟ x V30ﾟ
• Crossover
• 240 Hz
• Maximum output level (1m; on axis)
• 125 dB SPL
• Components
• LF
• Powered subwoofer: 12” (30 cm) Cone
• HF
• Line array speaker: 1.5” (3.8 cm) Cone x 10
• Amplifier class
• Class-D
• Power rating
• Dynamic
• 1100 W
• Power consumption
• 25 W (Idle), 91 W (1/8 power)
• Power requirements
• Depending on area of purchase: 100 V 50 Hz/60 Hz, 110-120 V 60 Hz, 220 V-240 V 50 Hz/60 Hz
• Handle
• Top of powered subwoofer x1
• Dimensions (W x H x D)
• System: 334 x 2,000 x 418 mm (maximum), Line array speaker: 67 x 582 x 86 mm, Powered subwoofer: 334 x 550 x 418 mm, Spacer: 67 x 555 x 86 mm (each)
• Weight
• System: 23.0 kg (maximum), Line array speaker: 1.8 kg, Powered subwoofer: 20.0 kg, Spacer: 0.6 kg (each)
• Accessories
• Power cord x 1, Cover x 1
• Options
• Yamaha DL-SP1K (Dedicated dolly), FC5 (foot switch for reverb ON/OFF)
