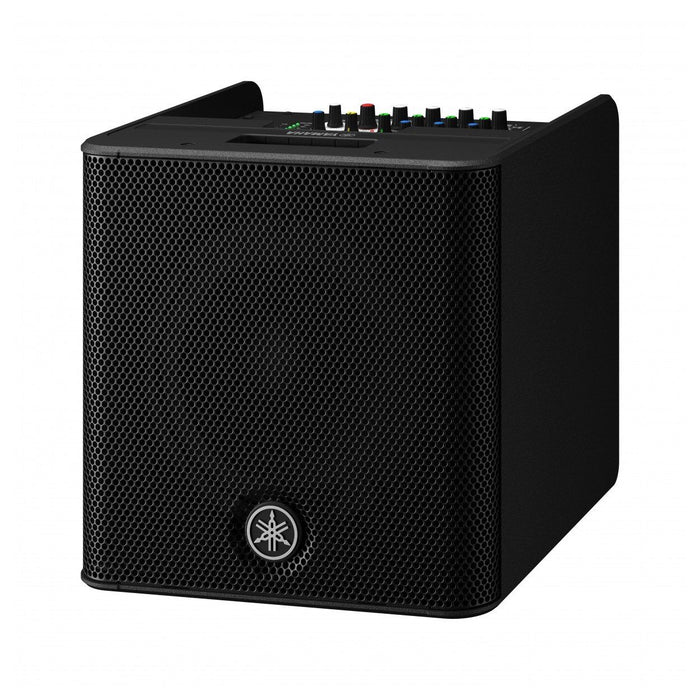

Yamaha StagePas 200 Portable PA System

With astonishing high-quality sound and mixing capability far beyond what you would expect from its minimalist design, the STAGEPAS 200 is a premium portable PA system that performs well above its weight class. With fast, intuitive operation of crucial live sound features, and superb overall performance, your audience will be stunned by your sound, and likely puzzled by your diminutive setup. The STAGEPAS 200 comes in two models— one with a high-capacity lithium-ion battery, the other compatible with optional batteries, giving you the flexibility to inspire performers and audiences alike in virtually any environment you choose, from street performances with 1-3 performers, to events, parties, and speeches.

FEATURES

• 180 W (HF: 30 W + LF: 150 W) Class-D amplifier
• 1.4” HF + 8” LF high-quality coaxial compression driver

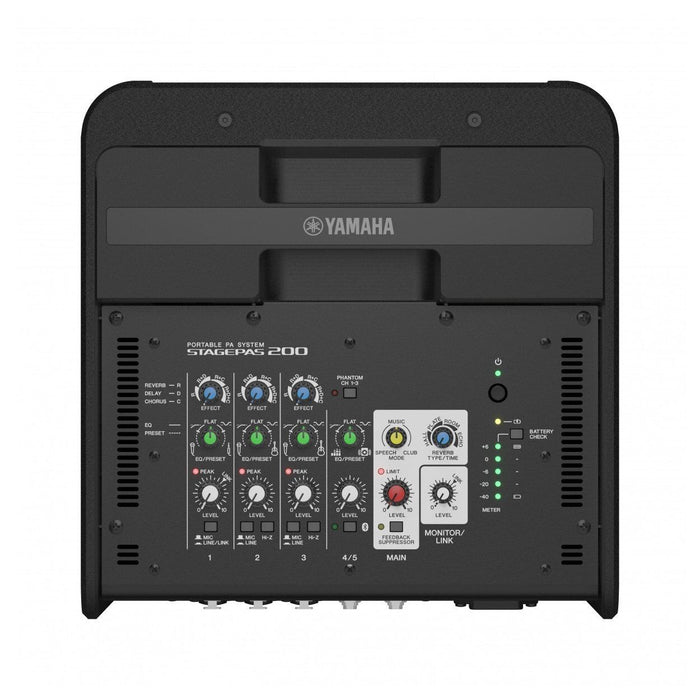

• 5-channel digital mixer (3 monaural mic/line + 1 stereo line)
• Main output multi-band compressor “MODE”
• 1-knob EQ/preset for each channel
• High-grade SPX digital reverb (4 program, parameter control), delay, chorus
• Hi-Z input
• Equipped with link-out/monitor out
• Supplied rubber stand allows inclining at 30 or 60 degrees
• Compatible with audio streaming via Bluetooth
• Can be controlled remotely via an iOS or Android device using the dedicated STAGEPAS Controller app
• Compatible with the optional BTR-STP200 battery
• Optional CASE-STP200 carry case for convenient carrying

SPECIFICATIONS

• Type : 2-way Bi-amp Powered Speaker with mixer
• Mixing channels : 5 (Mono x3 + Stereo x1)
• Input channel functions : Hi-Z: CH2/3, 1-knob EQ/Preset: CH1-3/ST
• Output channel functions : MODE (SPEECH/MUSIC/CLUB)
• Inputs : Mono x3 (mic/line) + Stereo/Mono x1 (line)
• Outputs : Monitor/Link out x1
• Bluetooth : Ver.5.0, A2DP (SBC, AAC), Class 1
• Control and others : STAGEPAS Controller (iOS/Android app)
• On-board processors : SPX digital reverb (4 program, parameter control), delay, chorus

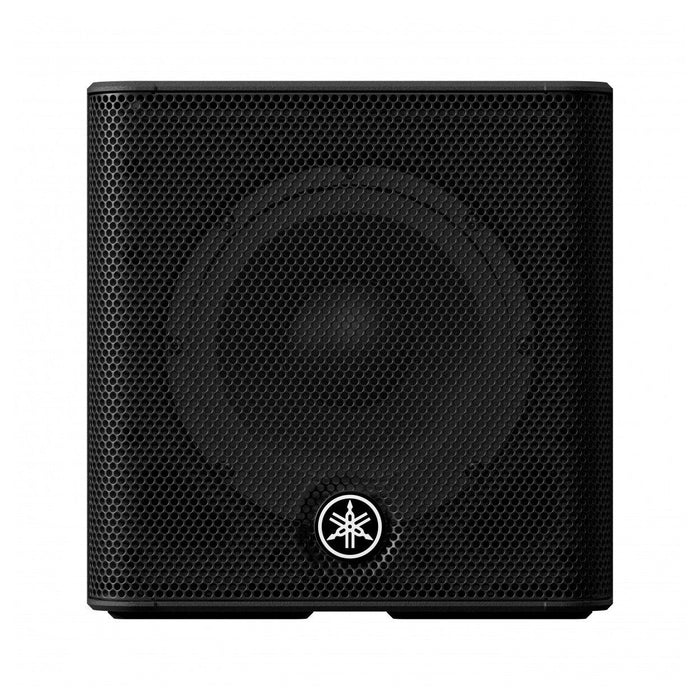

• Speaker type : Coaxial speaker with compression driver
• Frequency range (-10dB) : 60 Hz – 20 kHz
• Coverage area : H90ﾟ x V90ﾟ
• Crossover : 2.0 kHz
• Maximum output level (1m; on axis) : 125 dB SPL *1
• Components : LF : 8" Cone, 2.0" voice coil | HF: 1" throat compression driver, 1.4" voice coil
• Amplifier class : Class-D
• Power rating : Dynamic : 180 W (LF: 150 W, HF: 30 W)
• Cooling : Natural convection (no fan)
• Power consumption : 10 W (Idle), 20 W (1/8 power)
• Power requirements : 100-240 V 50/60 Hz, or 29.6 Vdc *2
• Cabinet material : Plastic (ABS)
• Handle : Top x1
• Pole socket : Φ35 mm x1 (Side)
• Floor Monitor Angle : 30° or 60°
• Dimensions (W x H x D) : 300 x 308 x 301 mm (11.8" x 12.1" x 11.9")
• Weight : 12.0 kg (26.5 lbs)
• Accessories : Power cord x 1
