Product Description
Yamaha StagePas 200BTR Portable PA System with Case (STAGEPAS200BTRC)
Yamaha StagePas 200BTR Portable PA System
The Yamaha Stagepas 200BTR Battery-Powered Portable PA System is a compact, portable and battery-powered PA speaker. The first ever battery-powered PA system from Yamaha
FEATURES
180 W (HF: 30 W + LF: 150 W) Class-D amplifier
1.4” HF + 8” LF high-quality coaxial compression driver

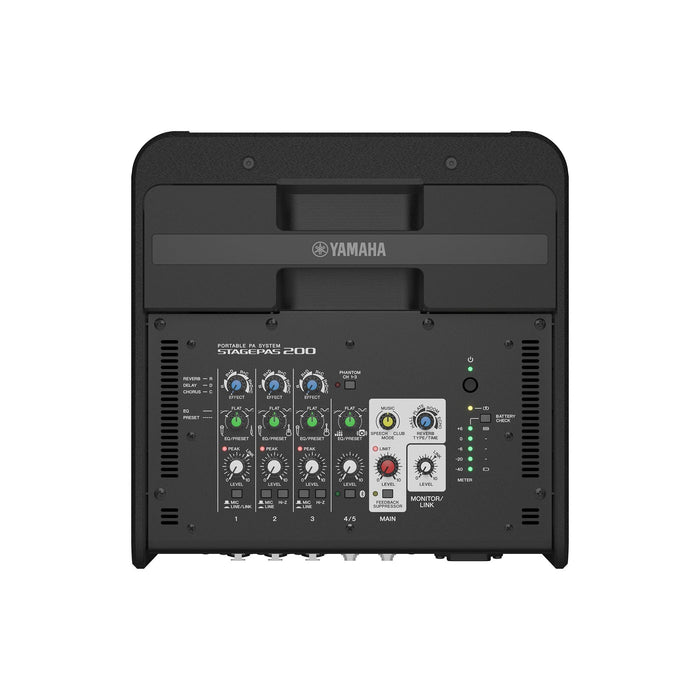

5-channel digital mixer (3 monaural mic/line + 1 stereo line)
Main output multi-band compressor “MODE”
1-knob EQ/preset for each channel
High-grade SPX digital reverb (4 program, parameter control), delay, chorus
Hi-Z input
Equipped with link-out/monitor out
Supplied rubber stand allows inclining at 30 or 60 degrees
Compatible with audio streaming via Bluetooth
Can be controlled remotely via an iOS or Android device using the dedicated STAGEPAS Controller app
Optional BTR-STP200 battery included
Optional CASE-STP200 carry case for convenient carrying
SPECIFICATIONS
Type : 2-way Bi-amp Powered Speaker with mixer
Mixing channels : 5 (Mono x3 + Stereo x1)
Input channel functions : Hi-Z: CH2/3, 1-knob EQ/Preset: CH1-3/ST
Output channel functions : MODE (SPEECH/MUSIC/CLUB)

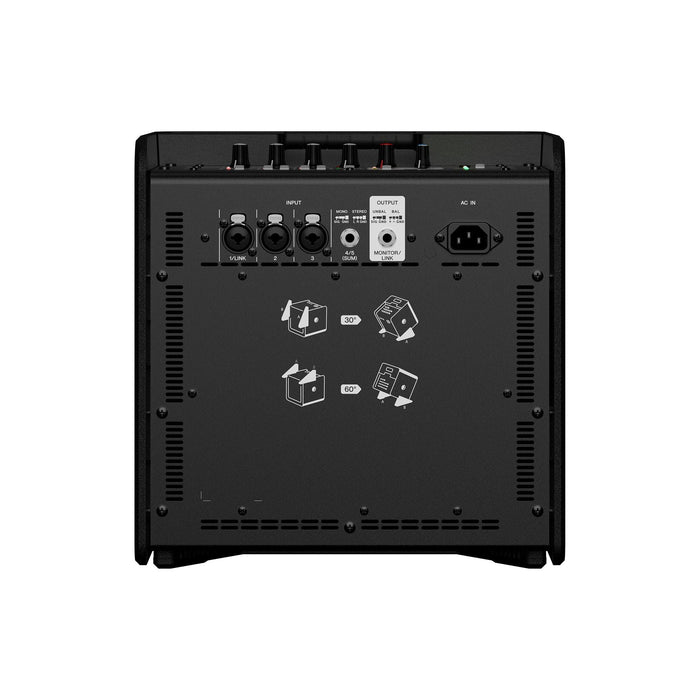

Inputs : Mono x3 (mic/line) + Stereo/Mono x1 (line)
Outputs : Monitor/Link out x1
Bluetooth : Ver.5.0, A2DP (SBC, AAC), Class 1
Control and others : STAGEPAS Controller (iOS/Android app)
On-board processors : SPX digital reverb (4 program, parameter control), delay, chorus

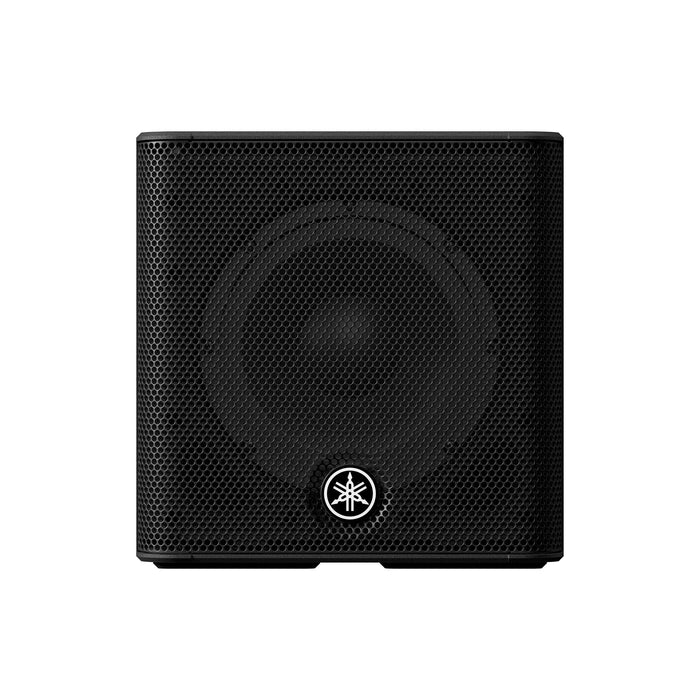

Speaker type : Coaxial speaker with compression driver
Frequency range (-10dB) : 60 Hz – 20 kHz
Coverage area : H90゚ x V90゚
Crossover : 2.0 kHz
Maximum output level (1m; on axis) : 125 dB SPL *1
Components : LF : 8" Cone, 2.0" voice coil | HF: 1" throat compression driver, 1.4" voice coil
Amplifier class : Class-D
Power rating : Dynamic : 180 W (LF: 150 W, HF: 30 W)
Cooling : Natural convection (no fan)
Power consumption : 10 W (Idle), 20 W (1/8 power)
Power requirements : 100-240 V 50/60 Hz, or 29.6 Vdc *2
Battery - Type : Rechargeable Lithium ion battery pack - Capacity : 79.92 Wh (2700 mAh, 29.6 V) - Operating Time : Maximum 10 hours, 1/16 power continuous 8 hours - Charging Time : Approx. 4 hours
Cabinet material : Plastic (ABS)
Handle : Top x1
Pole socket : Φ35 mm x1 (Side)
Floor Monitor Angle : 30° or 60°
Dimensions (W x H x D) : 300 x 308 x 301 mm (11.8" x 12.1" x 11.9")
Weight : 12.5 kg (27.6 lbs) (Including battery)
Accessories : Power cord x 1, Battery x 1
Dimension Packaging Weight : 20.0 kg
