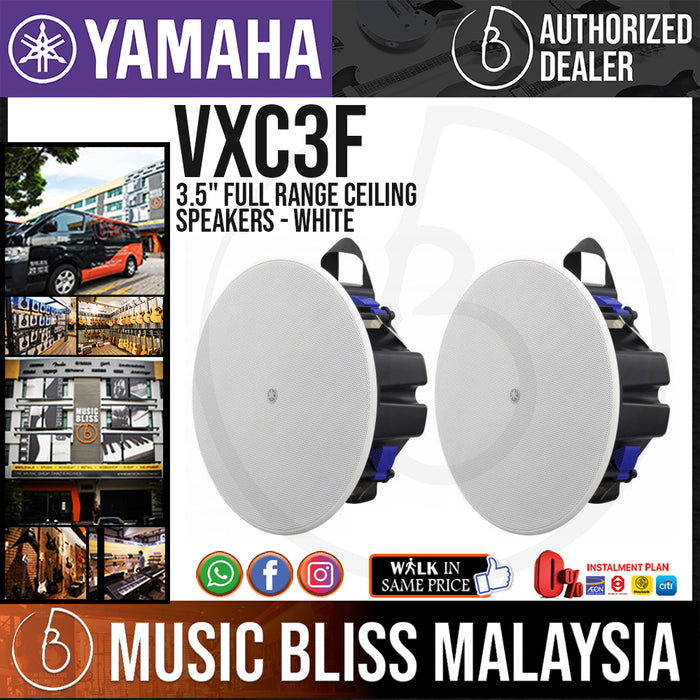

Yamaha VXC3F VXC Series 3.5" Full Range Ceiling Speakers - White (Pair)

3.5" Full-range Ceiling Loudspeaker
Item ID: MB-VXC3FW-Pair
RM1,240.00
RM1,089.00
Save 12%
Instant Savings: RM151.00 ( 0% GST)

Availability: Available! Requires 24 hours for Stock Arrangement.

Estimated Shipping Fees - calculating...


Yamaha VXC3F VXC Series 3.5" Full Range Ceiling Speakers - White (Pair)


A versatile lineup for clear consistent sound

Yamaha designed the new VXC and VXS speakers to accommodate a growing list of applications in the installation market. While these speakers deliver quintessential Yamaha sound quality, they have also been carefully designed for safe and easy installation. Featuring both ceiling and surface mount options, these speaker series include a comprehensive range of models that are available in either black or white, or can be painted to match the interior of any application.


FEATURES
  • Tailored for optimum BGM reproduction
  • Wide coverage allows a single speaker to cover a widearea
  • Direct support for low-impedance or high-impedanceconnections
  • Low-profile design facilitates installation inlimited ceiling spaces
  • Built-in carrying band increases safety duringinstallation
  • Anti-drop tab mechanism provide secure temporarypositioning during installation
  • Double-threaded speaker clamp screws for speedytightening
  • Paintable grilles with magnetic catches
  • Black version also available
  • 3.1kg (6.8lbs)324 x D143 mm (12-13/16" xD5-11/16")
  • Supplied grilles can be painted any color to match interior d©cor

 SPECIFICATIONS
  • Speaker Type: Full rangeBass reflex
  • Frequency Range (-10 dB): 71 Hz - 20 kHz (Half-space:2TT)
  • Nominal Coverage: 140° conical (Half-space: 2TT)
  • Components (LF/HF): 3.5" Full range unit
  • Power Rating:
    • Noise: 20 W
    • PGM: 40 W
    • PEAK: 80 W
    • Nominal Impedance: 8 Ohm
  • Transformer Taps:
    • 100V: 15W; 7.5W; 3.8W
    • 70V: 15 W; 7.5 W; 3.8 W; 1.9 W
  • SPL:
    • Sensitivity (1 W; 1m on axis): 867 dB SPL (Half-space: 2TT)
    • Peak (Calculated): 106 dB SPL (1mCalculated based on power rating and sensitivityexclusive of power compression)
  • I/O Connectors: Euroblock (4 pin) x 1 (input: +/-oop-thru: +/-)
  • Protection circuit: Full-range power limiting toprotect network and transducers
  • Finish: White (approx. Munsell N9.3)
  • Dimensions:
    • Diameter: 285 (11-1/4")
    • D: 112 mm (4-7/16")
  • Net weight: 2.5 kg (5.5 lbs)
  • Cutout size: 247 mm (9-3/4")
  • Required Ceiling Board Thickness: 5 mm - 37 mm
  • Accessories: O-ringTile RailCutout TemplateEuroBlock (4 pin)Terminal Cover
  • Packaging: Packaged in pairs
  • Certificate: UL1480NFPA70CEEACRoHS
  • Others: Conduit tube: 15.4 mm - 21.3 mm
