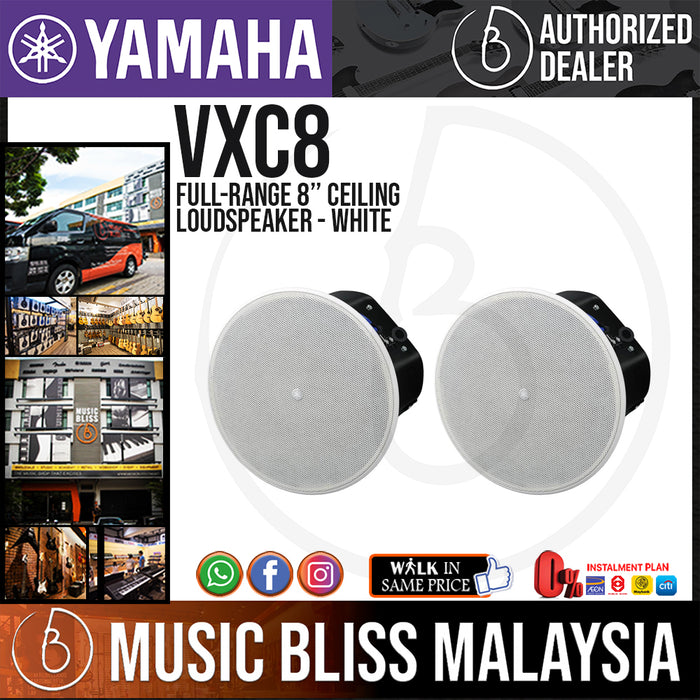

Yamaha VXC8 VXC Series Full Range 8 Inch Ceiling Loudspeaker - White (Pair)

8" Cone Woofer with a 1" Soft Dome Tweeter
Item ID: MB-VXC8W-Pair
RM2,160.00
RM1,899.00
On Sale
or up to 3 interest-free payments of RM633.00 with More info
Instant Savings: RM261.00 ( 0% GST)

Availability: Call For Status Check
Contacts Us To Check the Stock Status.
+6016-3111286

Estimated Shipping Fees - calculating...


Yamaha VXC8 VXC Series Full Range 8 Inch Ceiling Loudspeaker - White (Pair)


A versatile lineup for clear consistent sound

Yamaha designed the new VXC and VXS speakers to accommodate a growing list of applications in the installation market. While these speakers deliver quintessential Yamaha sound quality, they have also been carefully designed for safe and easy installation. Featuring both ceiling and surface mount options, these speaker series include a comprehensive range of models that are available in either black or white, or can be painted to match the interior of any application.


FEATURES
  • Internal Transformer that allows both High and Low-Impedance Drive with a single speaker.
  • Easily Adapts to any changes with Tap Switch on Baffle.
  • Anti-Drop tab allows for SafeSeamless Installation by Freeing your hands. O-Rings and Tile Rails included.
  • Speaker Design built for a strong emphasis on functionality while also being aesthetic. Hexagonal Design featured on the grille improves sound clarity by raising the aperture ratio. The Innovative Design of the VXC Tweeter improves Sound Clarity by providing unrestricted woofer movement.
  • VXC Series comes with paintable speaker grilles to allow for the best matching color to your decor.

SPECIFICATIONS



Speaker type 2-wayAcoustic suspension
Frequency range (-10dB) 55Hz - 20kHz (Half-space:2)
Nominal coverage 100° conical (Half-space:2)
Components LF 8" Cone
HF 1" Soft dome
Power rating NOISE 90W
PGM 180W
PEAK 380W
Nominal impedance 8
Transformer taps 100V 60W (170)30W (330)15W (670)
70V 60W (83)30W (170)15W (330)7.5W (670)
SPL Sensitivity (1W; 1m on axis) 90dB SPL (Half-space:2)
Peak (Calculated) 116dB SPL (1mCalculated based on power rating and sensitivityexclusive of power compression)
I/O connectors 1 x Euroblock (4P) : (Input: + / -Loop Thru: + / -)
Finish VXC8: Black / VXC8W: White
Dimensions Diameter 325mm (12.8")
D 259mm (10.2")
Net weight 6.6kg (14.6lbs)
Cutout size 285 mm (11-1/4")
Required ceiling board thickness 5 mm - 35 mm
Accessories O-ringTile RailCutout Template
Packaging Packaged in pairs
Certificate UL1480UL2043NFPA70CEEACRoHS
EN54-24 compliance -
Package Weight : 13.2 kg
