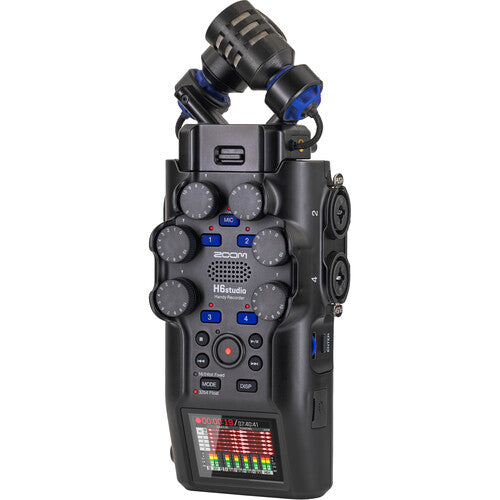

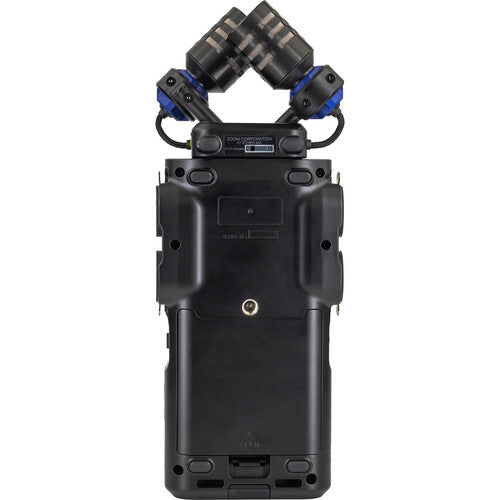

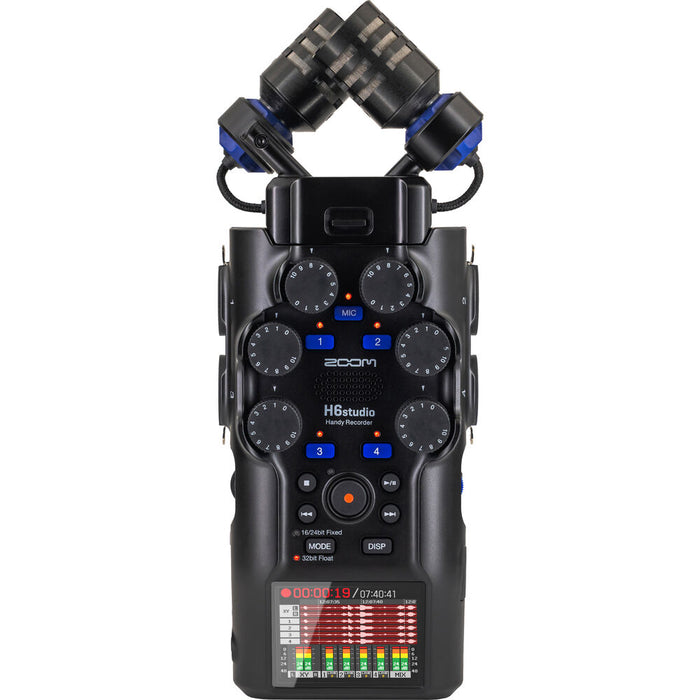

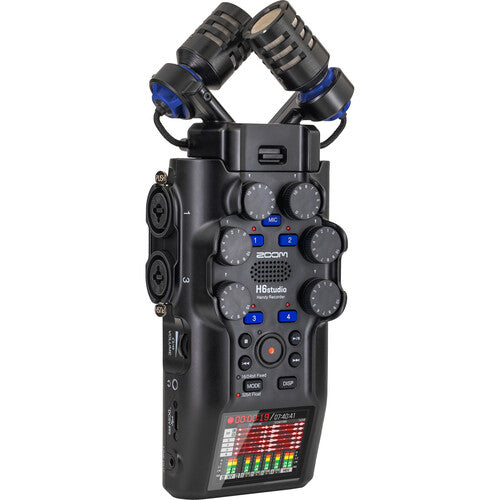

Zoom H6studio 8-Track Handy Recorder (H6 studio)

The Zoom H6studio brings studio-grade sound to any environment. Featuring large-diaphragm XY microphones, four ultraclean F-Series preamps, and 32-bit float recording with dedicated gain knobs, it's the most advanced Handy Recorder Zoom has ever made. Built with F-Series technology, the H6studio ensures every take is pristine, whether you're capturing music, film audio, podcasts, or field recordings.

FEATURES

• Large-diameter XY stereo microphone capsule (19.4 mm)

• Dual AD converter + 32-bit float support for clip-free recording

• 16/24-bit depth available

• 6 track simultaneous recording at up to 192kHz sampling in WAV format

• 4 XLR/TRS phone inputs (48V, +4dBu input compatible)

• F-series preamps

• Color LCD screen

• Compatible with Zoom capsule system 3.0

• 6-in/2-out USB audio interface

• Mono mode for recording interviews, narration, and vocals

• Variable speed playback (0.5 to 2.0x) and A-B repeat playback of recorded files

• Low-cut filter to suppress low-frequency noise

• The recording start tone function useful for aligning audio with video

• Normalize and export audio files in 24-bit/16-bit WAV formats

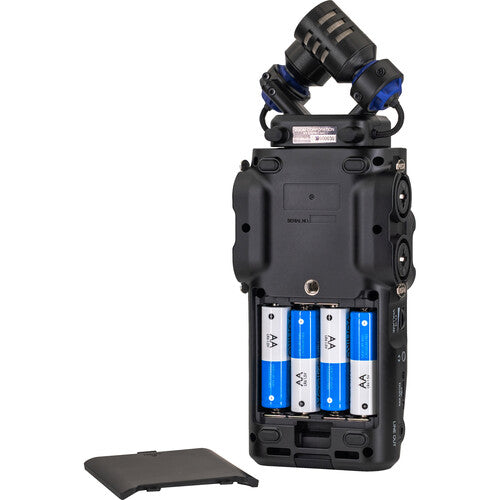

• 12 hours of battery life on AA battery (2x) or USB-C power

SPECIFICATIONS

• INPUT AND OUTPUT CHANNELS
  - Inputs : Mic capsule : 1 | MIC/LINE (mono) : 4
  - Outputs : LINE OUT : 1 | Headphone : 1 | Built-In Speaker (MONO) : 1


• INPUTS
  - XY mic (XYH-5s) : 90º XY stereo format | Pickup pattern : Unidirectional | Sensitivity : –41 dB/Pa at 1 kHz | Maximum sound pressure input : 140 dB SPL
  - MIC/LINE IN (XYH-5s) : Connector : 1 stereo mini jack | Input gain : −∞ – +60 dB | Input impedance : 2 kΩ or more | Plug-in power : 2.5 V

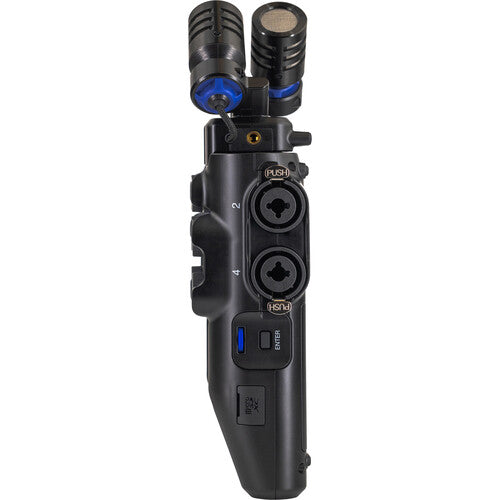

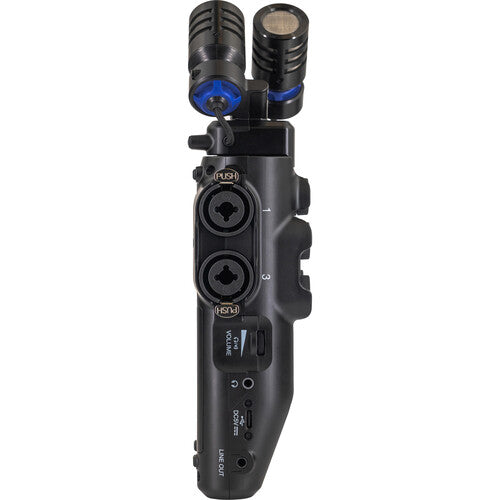

  - MIC/LINE (mono) : Connectors : 4 XLR/TRS combo jacks | (XLR：2 HOT, TRS：TIP HOT


• OUTPUTS
  - LINE OUT : Connector : 1 stereo mini jack | Maximum output level : +1 dBu | Output impedance : 110 Ω or less
  - Headphone : Connector : 1 stereo mini jack | Maximum output level : 20 ｍW + 20 ｍW（when 32 Ω load）| Output impedance : 10 Ω or less
  - Built-in speaker : Type : 20 mm x 30 mm elliptical dynamic speaker | Effective maximum output : 250 mW


• USB
  - Connector : USB Type-C • Use a USB cable that supports data transfer.
