Zoom L-20 LiveTrak Digital Mixer with 0% Instalment (L20)

---

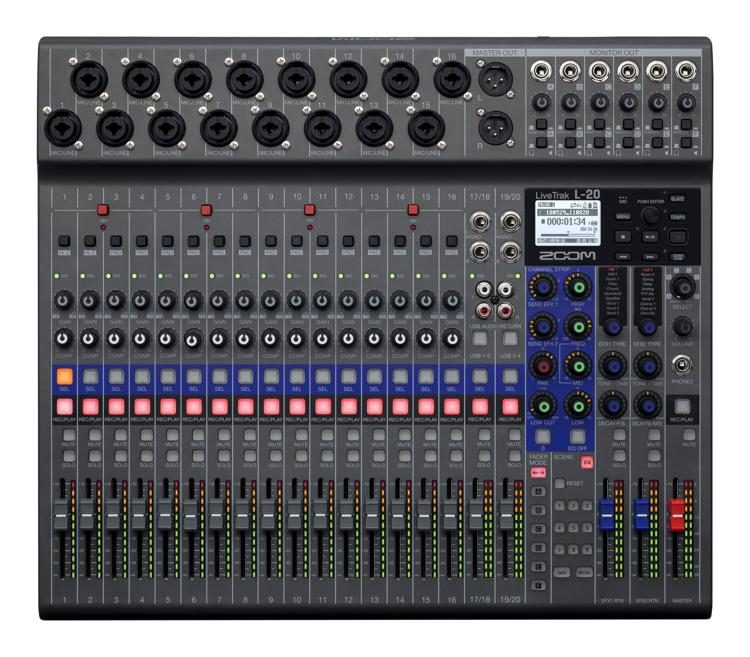

Zoom's LiveTrak L-20 makes capturing a rehearsal, producing a quick demo, or creating a great-sounding concert recording easy. Not only can you record up to 22 individual channels, but you can also create custom headphone mixes for up to six band members and craft a polished live mix complete with studio-quality effects. You can complete your entire project on the L-20 or transfer all 20 discrete tracks to your DAW for editing and mixing. The LiveTrak L-20 also functions admirably as a 22-in/4-out USB audio interface for your Mac, PC, or iOS device.

---

What's included with the L20 :

• LiveTrak L-20
• AD-19 AC Adapter
• USB 2.0 Cable
• Quick Guide

---

VIDEO

---

FEATURES

• 20-channel digital mixer (16 mono/2 stereo)
• 22-in/4-out USB audio interface for your Mac, PC, or iOS device (Apple Lightning-to-USB Camera Adapter is required for iOS)
• 22-track 24-bit/96kHz recording directly to an SD card
• Record up to 48kHz to a computer and an SD card simultaneously
• Create customizable, savable headphone mixes for up to 6 band members
• Complete your entire project on the mixer, or transfer all 22 discrete tracks to your DAW for editing and mixing
• 16 combo jacks accommodate both XLR and 1/4 connectors
• 16 great-sounding mic preamps with phantom power and +60dB of gain
• Channels 1–2 offer hi-Z inputs for your electric guitar or bass
• Channels 17/18 and 19/20 have TRS and RCA connectivity for keyboards and other audio devices
• Each channel features a 3-band mid-parametric EQ and 20 built-in effects
• Channels 1–16 include a dedicated compressor for controlling dynamics
• Channels 3–16 have a -26dB pad for capturing loud sources
• Clear 12-segment LED metering for keeping an eye on your levels
• Save up to 9 scenes and recall your custom settings automatically
• Record automatically when the master fader detects a certain dB level
• Capture data up to 2 seconds before recording starts, in case a performance begins ahead of time
• Built-in slate mic for recording comments or talk back
• Onboard metronome for keeping the band in sync

---

SPECIFICATIONS

• Type:Digital Mixer with USB Interface
• Channels:20
• Inputs - Mic Preamps:16 x XLR-1/4 combo (mic/line)
• Phantom Power:Yes
• Inputs - Line:4 x 1/4 (2 x stereo channels), 2 x Dual RCA Stereo
• Inputs - Other:2 x XLR-1/4 combo (Hi-Z)
• Outputs - Main:2 x XLR (master)
• Outputs - Other:6 x 1/4 (monitor)
• Busses/Groups:2 x FX Buses
• Talkback:Built-in Slate Mic
• Remote:1 x 1/4 (footswitch control)
• USB:1 x Type A, 1 x Type B
• Computer Connectivity:USB (22 x 4)
• Headphones:1 x 1/4 TRS
• Faders:18 x channel faders, 2 efx faders, 1 x master
• A/D Resolution:Up to 24-bit/96kHz
• EQ Bands:3-band Mid-parametric EQ
• Effects:20 effect variations; Reverb, Delay, Chorus
• Signal Processing:Compression (16 channels)
• Features:22 recording tracks, 20 playback tracks, 9 scene recall settings
• Transport Controls:Yes
• Screen:LCD screen
• Storage:SDHC/SDXC Card Slot
• Software:Remote Mixer App (iPad, BTA-1 adapter required)
• Rackmountable:Yes (kit sold separately)
• Power Source:12V DC power supply
• Height:3.25
• Depth:15.3
• Width:17.5

---

Dimension Packaging Weight : 5.5 kg
