Welcome back to the sonic rabbit hole. In Part 1, we tackled voice architecture, laying the groundwork for how synthesizers distribute voices. Now, it is time to figure out how those voices are generated. For sound designers and gear enthusiasts, understanding the different types of synthesis is the difference between aimlessly twisting knobs and purposefully sculpting the exact texture you hear in your head.

Whether chasing the thick warmth of vintage analog gear or the complex digital landscapes of modern hardware, the synthesis engine dictates your creative boundaries. If you have hit a wall trying to make a pad sound more organic, or struggled to design a punchy bass, the solution lies in choosing the right type of synthesis. Here, we are breaking down the architecture, signal flow, and defining gear behind the most crucial synthesizer topologies.

Synthesizers create sound by generating an electrical or digital signal that is shaped, modulated, and amplified. The core building block is the oscillator, producing a raw waveform like a sine, sawtooth, square, or triangle wave. This initial sound is often harmonically rich but musically static. To turn that raw buzz into an instrument, the signal is routed through a specific topology—a predefined path of filters, amplifiers, and modulation sources that carve out the final dynamic shape.

Voice architecture determines how many notes you can play simultaneously. A monophonic synthesizer, like the Behringer PRO-1 or Moog Minitaur, channels all its power into a single voice, making it ideal for commanding basslines. Polyphonic synthesizers, such as the Sequential Prophet-6 or Roland JUNO-X, contain multiple independent voice circuits, allowing you to play complex chords and lush pads.

Paraphonic synthesizers strike a fascinating middle ground. In a setup like the Moog Matriarch or Behringer Poly D, you have multiple oscillators played across different keys that share a single filter and envelope. This creates a unique playing behavior where striking a new note re-triggers the envelope for the entire chord, resulting in staccato articulations sought after by sound designers. Knowing these architectural differences sets the stage for understanding synthesis engines.

1) Subtractive Synthesis

Subtractive synthesis is the undisputed godfather of the synthesizer world, heavily associated with the golden era of analog gear. The signal chain is intuitive: you start with a harmonically rich waveform from your oscillator, and route it through a filter to subtract unwanted frequencies. By carving away at the raw audio using low-pass, high-pass, or band-pass filters, you shape the harmonic content. From there, the signal hits an amplifier controlled by an ADSR envelope. This approach is why subtractive synths excel at thick basses and warm pads.

Because of its direct workflow, subtractive analog synthesis is the ultimate playground for immediate sonic gratification. Legendary instruments from Sequential, Oberheim, and Moog established the benchmark for analog warmth. Today, synthesizers like the Sequential Oberheim OB-X8, Sequential Prophet Rev2, Behringer PRO-800, and Moog Subsequent 37 deliver classic subtractive punch. Accessible units like the Behringer Model 15, Moog Mother 32, and Behringer MS-5 offer authentic vintage circuits in studio-friendly formats.

In practical production, subtractive synths are your foundation. Whenever a track lacks low-end authority, deploying a dedicated subtractive bass synth like the Moog DFAM, Behringer EDGE, or Behringer TORO anchors the mix instantly. Whether patching cables on a Moog Grandmother or dialing in a brass patch on a Sequential Oberheim OB-6 or the Sequential Oberheim OB-6 Module, subtractive synthesis remains essential.

2) Addictive Synthesis

Additive synthesis takes the exact opposite approach to subtractive; instead of carving away frequencies, it builds sounds by stacking individual sine waves, known as partials or harmonics. Every complex sound can theoretically be broken down into a collection of sine waves vibrating at different frequencies. Additive synthesizers give you control over these individual partials, allowing you to manually construct your harmonic profile. By tuning and shaping the envelope of dozens of sine waves, you create hyper-detailed, evolving timbres that are mathematically precise.

The sheer complexity of controlling individual harmonics historically made additive synthesis demanding on computing power, which is why it remains predominantly digital. Unlike massive analog circuits, additive engines rely on intense digital processing to calculate the phase and amplitude of every wave in real-time. Elements of additive synthesis are integrated into modern performance keyboards. The Korg KingKORG Neo utilizes advanced digital signal processing that can emulate complex additive-style harmonic stacking, making it a powerful asset for stage performers.

For sound designers, additive synthesis is the ultimate problem-solver for generating glassy, bell-like tones and morphing textures that analog circuits simply cannot replicate. If you are scoring a sci-fi film, additive methods allow you to design inharmonic overtones that sound completely alien. Layering a bright additive pad over a dark subtractive analog bass ensures the mix has both low-end weight and high-frequency shimmer without clashing.

3) Vector Synthesis

Vector synthesis introduces a dynamic way to crossfade between multiple sound sources in real-time. A vector synthesizer places four different oscillators—often containing digital waveforms or samples—at the four corners of a two-dimensional X/Y plane. Using a physical joystick or a programmed digital envelope, the musician can smoothly morph the mix ratio between these four sound sources. As you move the joystick across the X and Y axes, the volume of each oscillator dynamically changes, creating evolving, shifting timbres that possess unique movement.

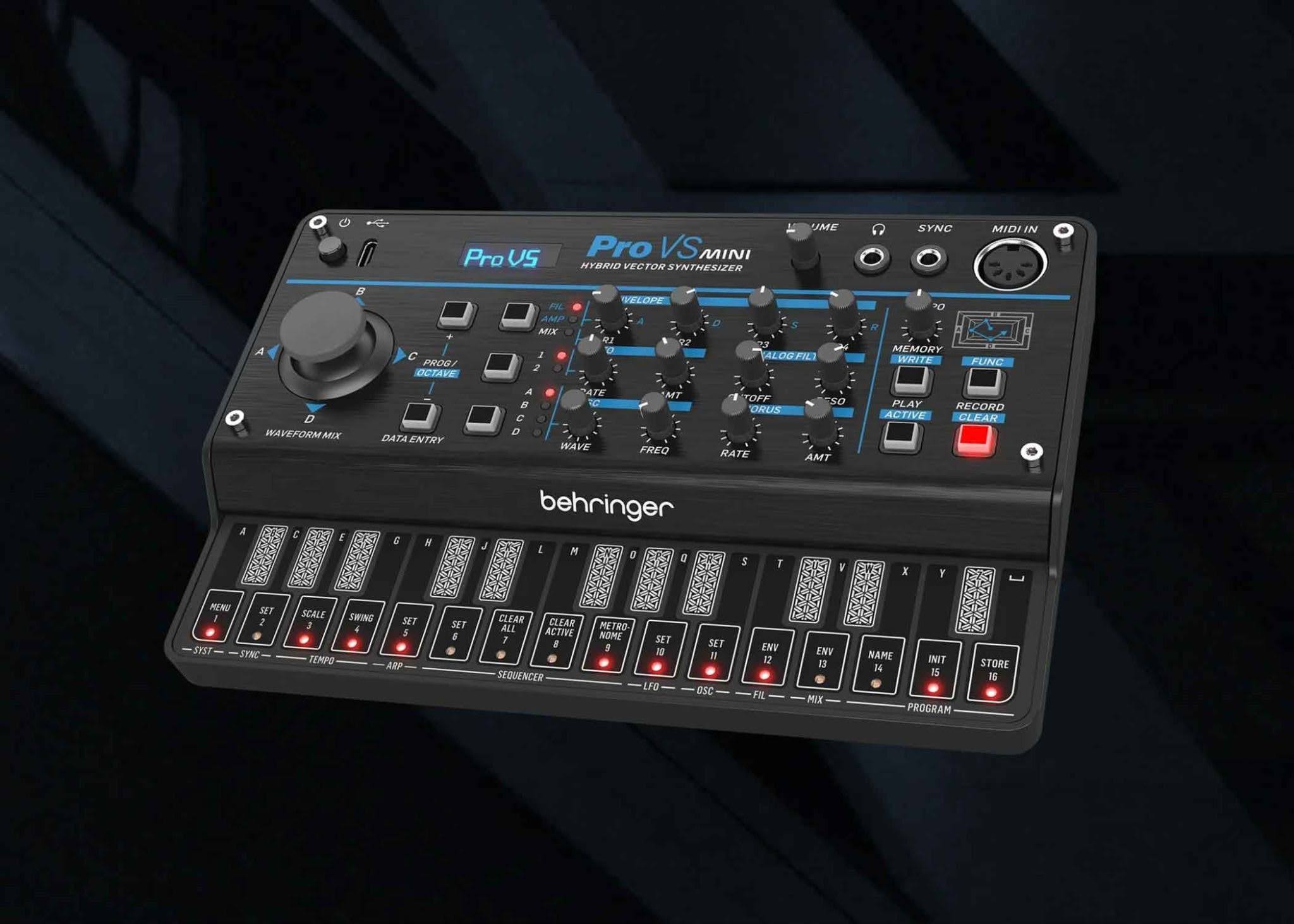

This technology was pioneered in the late 1980s, becoming famous for injecting life into otherwise static digital sounds. The ability to grab a joystick and physically animate the crossfading of timbres makes vector synthesis incredibly expressive for live performers. Today, this historic sound design technique is highly accessible through modern hardware like the Behringer Pro VS Mini, which faithfully resurrects the authentic four-oscillator vector morphing experience in a portable format.

In modern production, vector synthesis is the secret weapon for creating cinematic pads, evolving drones, and complex textures that change over the duration of a sustained note. If your track suffers from static backing chords, recording a vector joystick performance over the progression instantly adds human expression. Sound designers frequently use vector synths to blend a sharp digital attack transient into a warm, sustained analog-style body, yielding hybrid tones that sound intricate and highly produced.

4) FM Synthesis

Frequency Modulation (FM) synthesis generates sound by using one waveform to rapidly modulate the pitch, or frequency, of another. In the FM realm, oscillators are referred to as "operators." You have carrier operators, which you hear, and modulator operators, which are routed to modulate the frequency of the carriers. When this pitch modulation occurs at audio rates, it creates brand new, highly complex harmonic sidebands. By chaining these operators together in various algorithms, you can generate everything from punchy basslines to realistic bells.

Because FM synthesis relies on precise mathematical relationships to generate its harmonics, it has traditionally been a purely digital technology. The intricate interactions between operators can produce incredibly sharp, percussive transients that analog subtractive synths struggle to emulate. Modern hardware has embraced FM to expand the sonic palette available to musicians. The Korg minilogue XD features a multi-engine digital oscillator that can handle FM algorithms alongside true analog circuitry. Dedicated digital synths dive even deeper to deliver signature cold, metallic, and punchy FM tones.

Musically, FM synthesis shines when you need absolute mix clarity and percussive punch. If your mix is muddy, a tight FM bass will cut right through the low-mid clutter thanks to its focused harmonic structure and snappy attack. The ability to manipulate the envelope of the modulator operator independently from the carrier means you can design a sound that starts as a harsh strike and decays into a pure sine wave.

5) Wavetable Synthesis

Wavetable synthesis revolutionized digital sound design by using single-cycle digital audio files as the core oscillator source. Instead of being stuck with a basic static waveform, a wavetable synthesizer stores a large collection of different waveforms arranged in a "table." The true power of this synthesis type comes from the ability to scan or morph through this table in real-time. By assigning an LFO or an envelope to sweep the wavetable index, the oscillator's raw harmonic content physically changes over time, creating highly animated timbres.

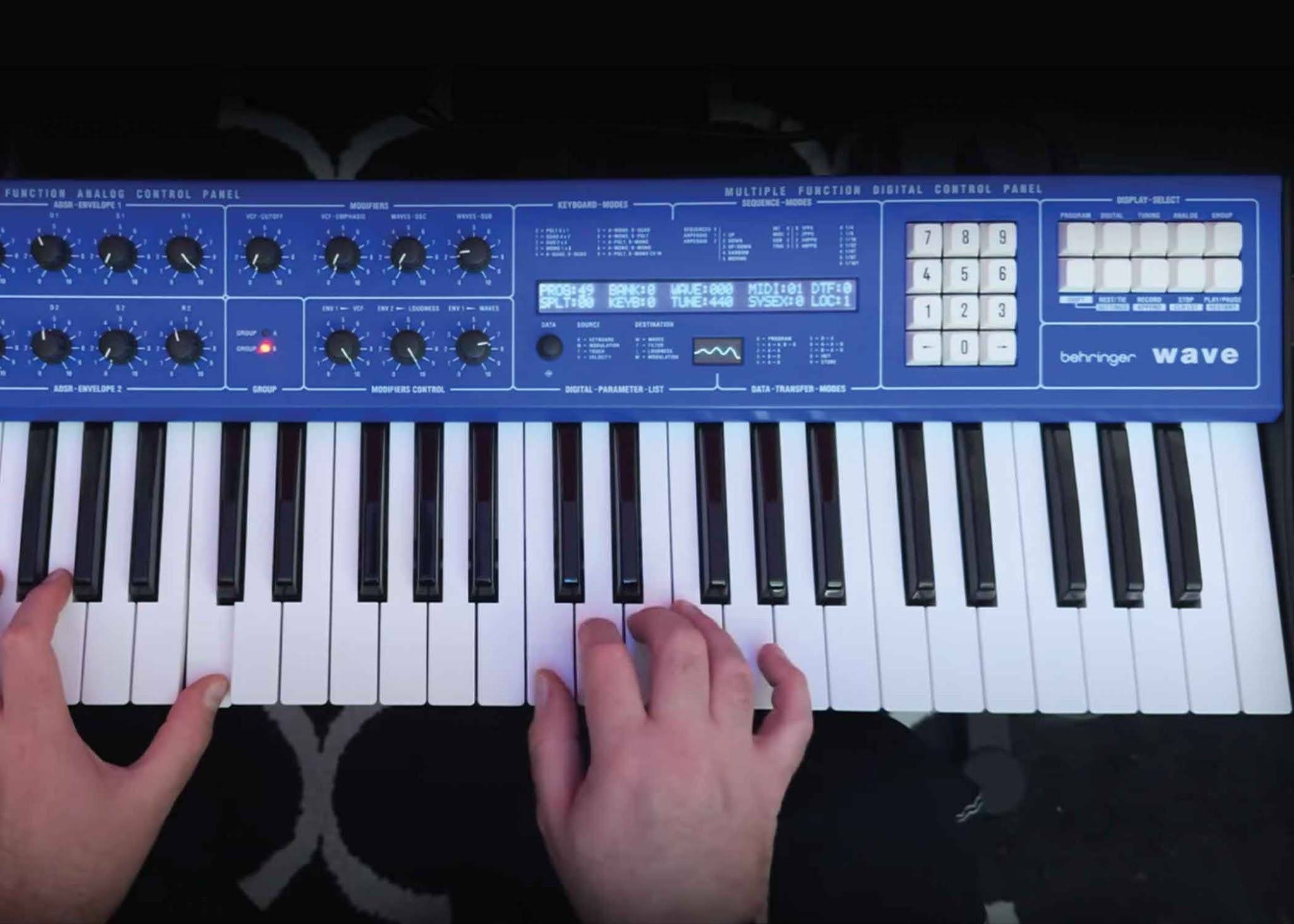

Born in the digital era, wavetable synthesis has become the backbone of modern electronic music production. Its ability to generate fiercely complex, harmonically shifting tones makes it a staple for aggressive genres and cinematic soundscapes alike. The Behringer Wave acts as a fantastic homage to the classic wavetable sound, offering that gritty, evolving digital character. Similarly, the Korg microKORG2 integrates modern wavetable scanning techniques, allowing performing musicians to access cutting-edge, aggressive digital textures in a highly portable and user-friendly chassis.

When writing and producing, wavetable synthesizers are your go-to for modern, in-your-face leads and complex, tearing basslines. If a standard analog saw wave is not aggressive enough to push through a heavy drum mix, a wavetable synth sweeping through a metallic table will provide the necessary harmonic bite. Sound designers love this method because you can visually draw or import your own audio to be converted into custom wavetables, granting infinite sonic possibilities.

6) Granular Synthesis

Granular synthesis operates entirely on the microscopic manipulation of audio samples. Instead of using a traditional oscillator, granular synthesizers take a recorded piece of audio and slice it into thousands of tiny snippets called "grains," which usually last anywhere from one to one hundred milliseconds. These grains are then redistributed, pitched, layered, and scattered back across the stereo field in real-time. By controlling the density, size, and playback speed of these grains, you can turn a fraction of a second of audio into an endless, evolving drone.

This type of synthesis is incredibly processor-intensive, meaning it is largely found in advanced digital hardware and software ecosystems. However, the resulting sounds are breathtakingly organic and deeply atmospheric. It bridges the gap between traditional synthesis and audio manipulation, turning mundane recordings into unrecognizable, beautiful synthetic instruments. While strictly granular hardware is niche, advanced digital sound design tools utilize this method to offer musicians a way to generate vast, cloudy soundscapes that no analog circuit could ever dream of producing.

In practical sound design, granular synthesis is the ultimate tool for ambient music and cinematic scoring. If you need a pad that feels alive, unpredictable, and full of micro-textures, running a piano chord or a vocal take through a granular engine solves the problem instantly. Whenever a track requires a dense, ethereal background layer that refuses to stay static, granular patches provide an intimately organic bed of sound.

7) Sampling Synthesis

Sampling synthesis eschews mathematically generated waveforms entirely, opting instead to use pre-recorded digital audio samples as the primary sound source. When you press a key on a sampler, it triggers a recording of a real acoustic instrument, a voice, or a drum hit. What makes it "synthesis" is how the sampler manipulates that audio. The raw sample is fed through a traditional synthesizer signal path, complete with low-pass filters, LFOs, and ADSR envelopes. This allows the musician to warp a realistic piano sample with synth-style modulation.

The integration of sampling into synthesizer architecture birthed the modern workstation and heavily defined the sound of hip-hop, pop, and R&B. By mapping multiple samples across the keyboard, manufacturers provided musicians with entire orchestras. Instruments like the Behringer SOLINA STRING ENSEMBLE represent the lineage of sample-based concepts that aimed to replicate acoustic instruments, while modern Roland gear like the JUNO-X uses advanced modeling and sample playback to flawlessly recreate the legendary sounds of acoustic pianos, strings, and vintage synths simultaneously.

Sampling synthesis is indispensable when your production requires hyper-realism or nostalgic flair. If you are struggling to synthesize a convincing brass section using analog gear, a sample-based synth instantly provides the authentic acoustic footprint. Sound designers frequently use sampling to create unique hybrid instruments, such as layering the natural attack transient of a sampled marimba with the sustained body of an analog square wave.

8) Hybrid Synthesis

Hybrid synthesis is exactly what it sounds like: a deliberate fusion of different synthesis technologies, most commonly pairing digital oscillators with analog filters. This architecture aims to deliver the best of both worlds. You get the fierce complexity, precise tuning, and vast sonic variety of digital sound sources combined with the warm, unpredictable, and inherently musical response of a voltage-controlled analog filter and amplifier section. The result is a highly versatile instrument capable of producing cutting-edge modern textures that still possess a classic, fat analog bottom-end.

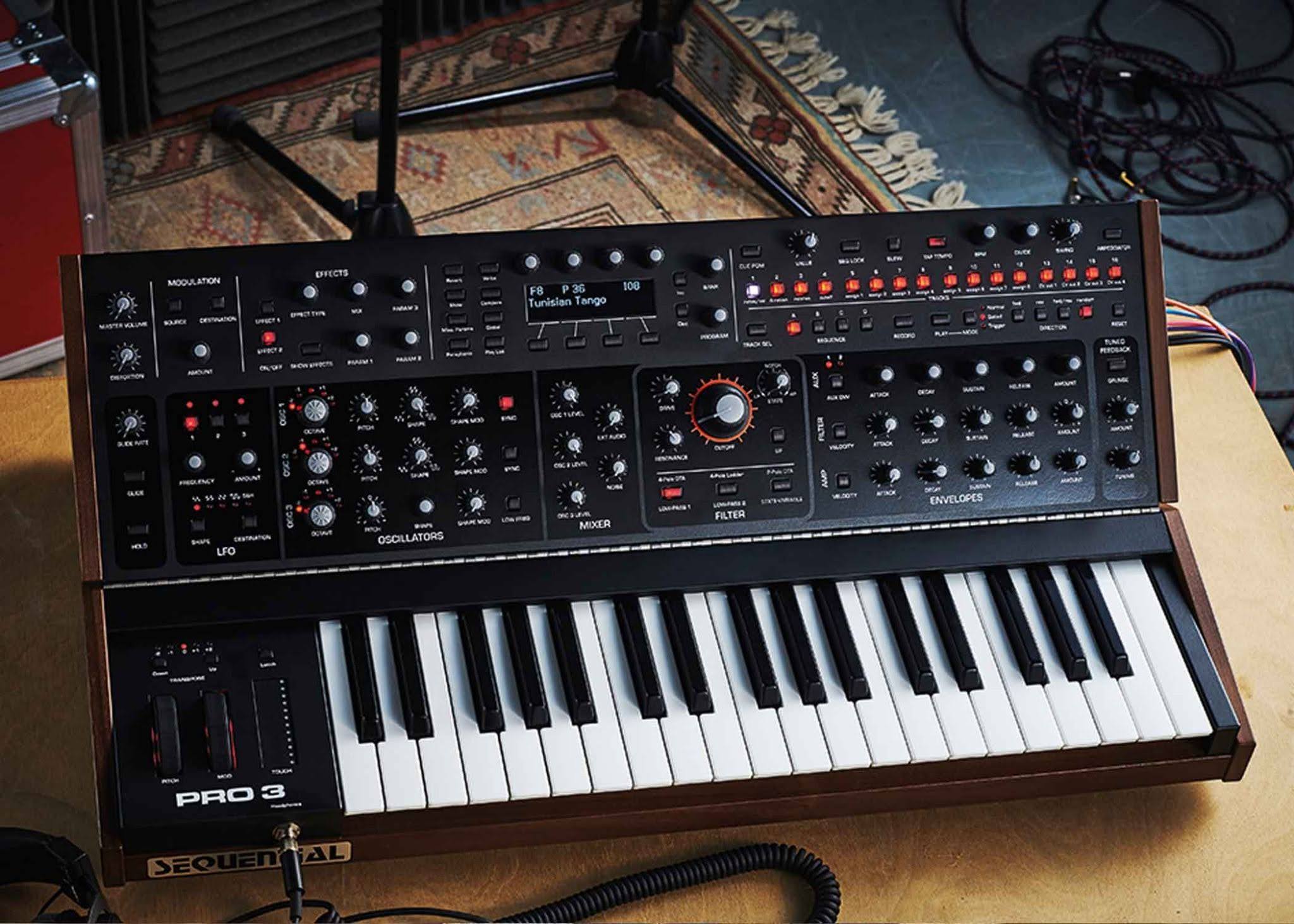

Today’s synthesizer market is heavily populated by brilliant hybrid machines that cater to demanding musicians who refuse to compromise on tone. The Sequential Pro 3 is a masterclass in this approach, offering high-resolution digital wavetables running directly into multiple classic analog filter designs. Similarly, semi-modular units like the Moog Labyrinth and Moog Subharmonicon blend unique sequencing and mathematical waveform generation with unmistakable analog grit. Even the Behringer Proton and Moog Messenger push the boundaries of what integrated, multi-faceted synthesis environments can achieve.

For the modern producer, a hybrid synthesizer is the ultimate desert-island tool. If you are dealing with a dense mix and need a lead sound that is sharp enough to cut through the guitars but warm enough not to sound harsh, a digital wavetable run through an analog low-pass filter is the perfect recipe. Sound designers turn to hybrid synths to create massive, evolving basses that bridge the digital and analog divide.

Mastering the different types of synthesis is the most effective way to elevate your sound design from random experimentation to deliberate, purposeful creation. Whether you are dialing in the subtractive warmth of a Sequential Prophet-6, exploring the digital realms of a Korg microKORG2, or utilizing the complex routing of a Roland GAIA 2, knowing how the engine generates sound empowers you to make smarter gear choices. Every synthesis type serves a unique musical purpose. By understanding the signal flow and defining characteristics of these architectures, you equip yourself with the knowledge needed to design the exact textures your productions demand.
