Recording a live drum kit is one of the most tedious and potentially aggravating tasks an audio engineer can face. Because it is an inherently complex job, utilizing a methodical, step-by-step strategy is essential.

While modern sequencing, high-quality drum machines, and sample libraries mean many producers bypass tracking acoustic kits altogether, a massive community of drummers remains—and many artists still demand the organic feel of a real performance. This text provides a practical blueprint for capturing an exceptional drum sound with the gear you have on hand.

A standard drum setup includes a kick, a snare, rack toms, a floor tom, hi-hats, and various cymbals (such as rides and crashes). Because drums are purely percussive instruments, they produce loud signals rich in fast transients (the initial, rapid peak of a sound wave). This high volume and quick response heavily dictate your microphone choices and signal processing.

Audit and De-Rattle the Kit

• Remove Unused Gear: Before tracking, confirm with the drummer which elements are actually required for the songs. Forgetting to do this can result in spending valuable time optimizing a microphone and noise gate for a tom that never gets used. Stripping away unnecessary components saves setup time and eliminates potential sources of hardware rattles.

• Prioritize the Source Sound: Do not rely on soundboard magic or noise gates to fix a sub-par instrument. A loose, buzzing kit will always sound poor on a recording. Invest an hour upfront in mechanical troubleshooting and retuning; it will save you days of headache during mixdown.

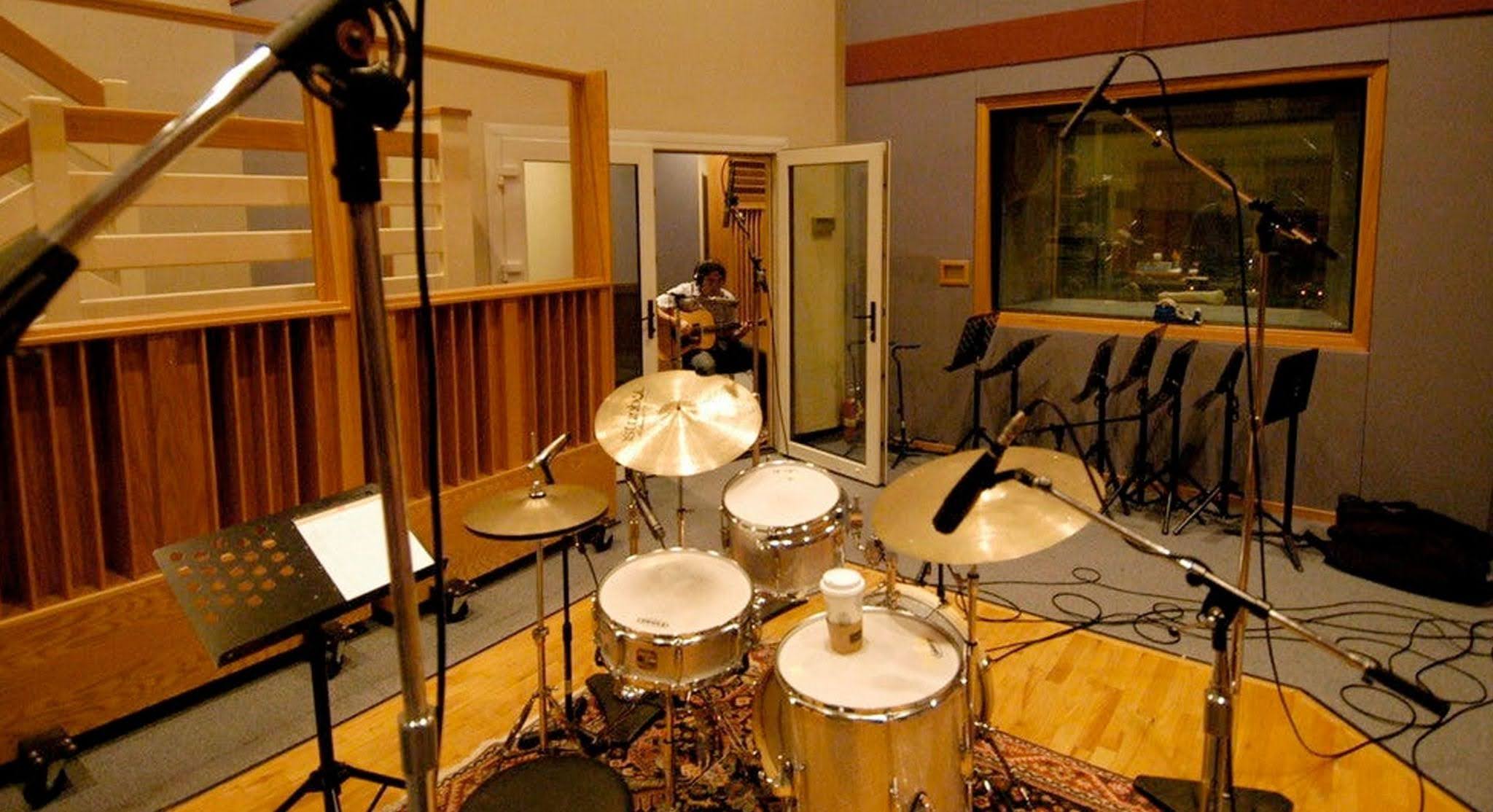

• Improvised Studio Isolation: Professional environments use specialized drum booths—either heavily dampened to remove acoustic coloration or walled with reflective stone/brick to add energy to rock tracks. If you are tracking in a single room alongside a loud live band, use temporary acoustic barriers:

• Construct DIY baffles out of mattresses or stacks of cardboard boxes to separate the kit from the rest of the musicians.

• Hang a thick duvet from a ceiling beam in front of the kit to isolate the overhead microphones from loud guitar amplifiers (backline spill).

• Always preserve clear sightlines so the drummer can visually communicate with the band.

Drum construction—including shell material, stick selection, and head type—fundamentally defines your tone. Thick, heavy heads offer a louder, darker sound with a rapid decay, while thin heads provide a sharper attack and a longer ring. Heads featuring internal dampening (like a center dot) provide a controlled, pre-muffled response.

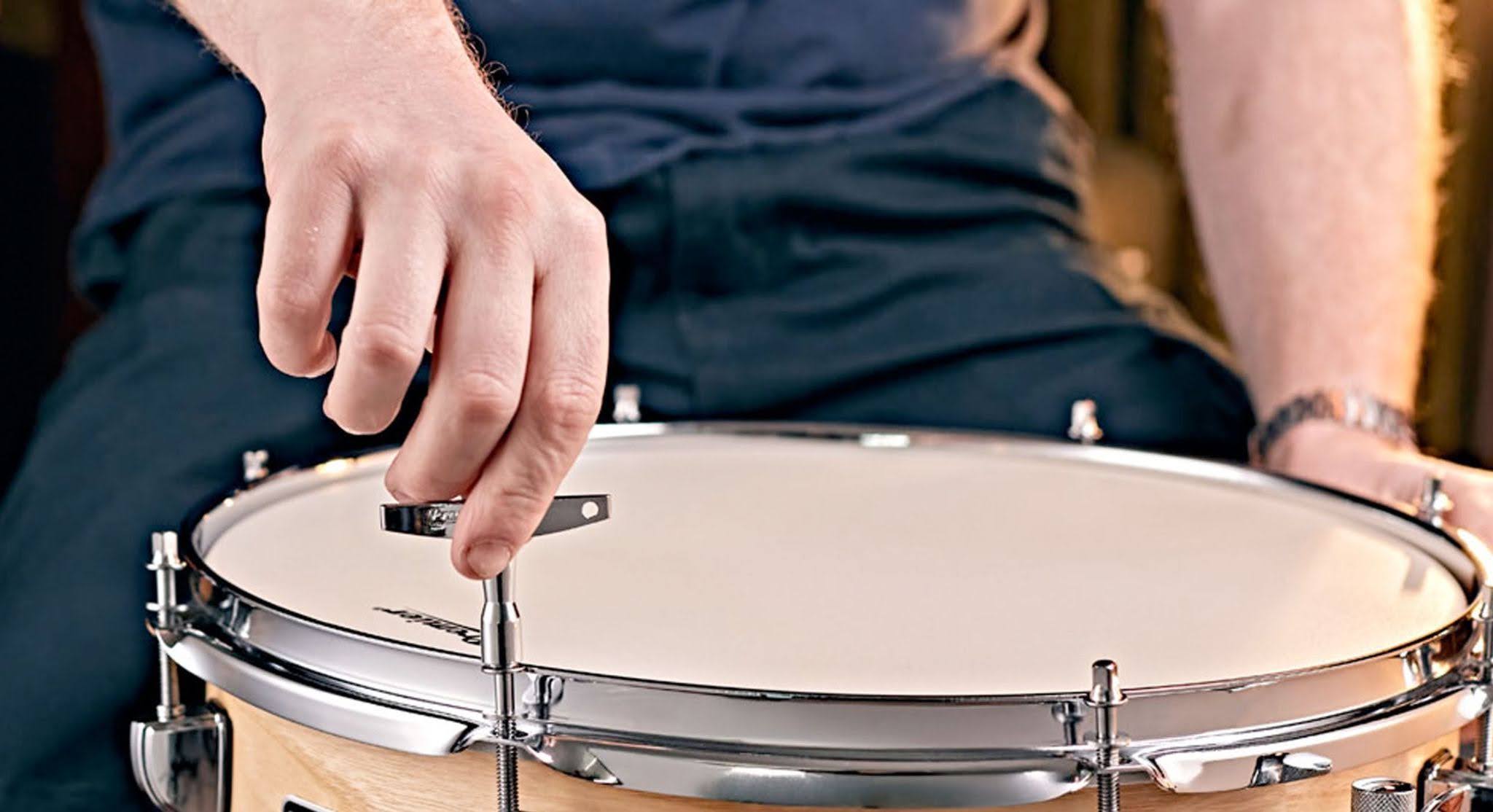

Precision Lug Tensioning

Tuning a drum requires balancing multiple tension rods relative to one another, much like tuning a piano.

1. Reset the Lugs: Loosen all tension keys completely, then tighten them by hand until they just meet resistance against the rim.

2. The Cross Pattern: Working in pairs on directly opposite sides of the head (the same pattern used when tightening the nuts on a car wheel), adjust the keys smoothly.

3. Seat the Skin: Apply firm downward pressure with your palm directly to the center of the head to stretch the material and distribute tension evenly.

4. Equalize Pitch: Continue tightening in half-turn increments. Tap the head near each individual lug along the rim; the pitch should be completely uniform across all points.

Shell Resonance & Managing Sustain

The drum body acts as an acoustic cavity. Matching the tuning of the top (batter) and bottom (resonant) heads alters the overall character:

If a drum rings excessively, avoid over-damping, which can completely flatten the performance. Instead, use modest fixes: tape a folded tissue, cloth, or paper towel to the outer edge of the head, or lay parallel strips of electrical tape across the surface. For the kick drum, place a blanket or dense pillow inside the shell so it rests firmly against the batter head. Finally, apply WD40 to eliminate pedal or hardware squeaks, and secure any loose, rattling metal with masking tape.

Because recorded drums often thrive on coloration and aggressive character, there are very few rigid rules regarding microphone placement.

Overhead Strategy

For genres like acoustic jazz, a minimalist, purist approach works best. A clean, balanced sound can be captured using high-quality cardioid condenser microphones (either large or small-diaphragm) positioned two to three meters above the floor.

• Understanding Dispersion: Cymbals project sound vertically (above and below the metal plate), whereas hi-hats project their acoustic energy horizontally.

• Controlling Balance: To lower the volume of the cymbals relative to the rest of the kit, place your overhead microphones close to the flat horizontal plane of the cymbals. To capture more cymbal presence, elevate the microphones directly above them.

• Microphone Options: For pristine, ultra-detailed overheads, a matched pair of sE Electronics sE8 small-diaphragm condensers offers incredible transient speed, while the sE4400 large-diaphragm condenser provides a smooth, classic multi-pattern option. If you are tracking a premium rock or vintage session, a matched pair of Telefunken TF11 FET or legendary Telefunken M60 FET microphones will provide an elegant, open top-end air without harshness.

• Stereo Width: You can use a single wide-cardioid or stereo microphone configuration placed above and behind the drummer’s head. Alternatively, position a spaced pair set up as overheads to independently capture the left and right sides of the kit. Don't worry about perfect symmetry; position them wherever they capture the best tonal balance for their respective zones.

• Stand Safety: High boom arms can easily become top-heavy. Use heavy-based stands, weight the tripod feet with sandbags, and always ensure one tripod leg extends directly beneath the weight of the boom arm.

Tracking the Kick Drum

Kick drums emit massive, repetitive low-frequency pressure waves that can easily degrade delicate microphone diaphragms over time.

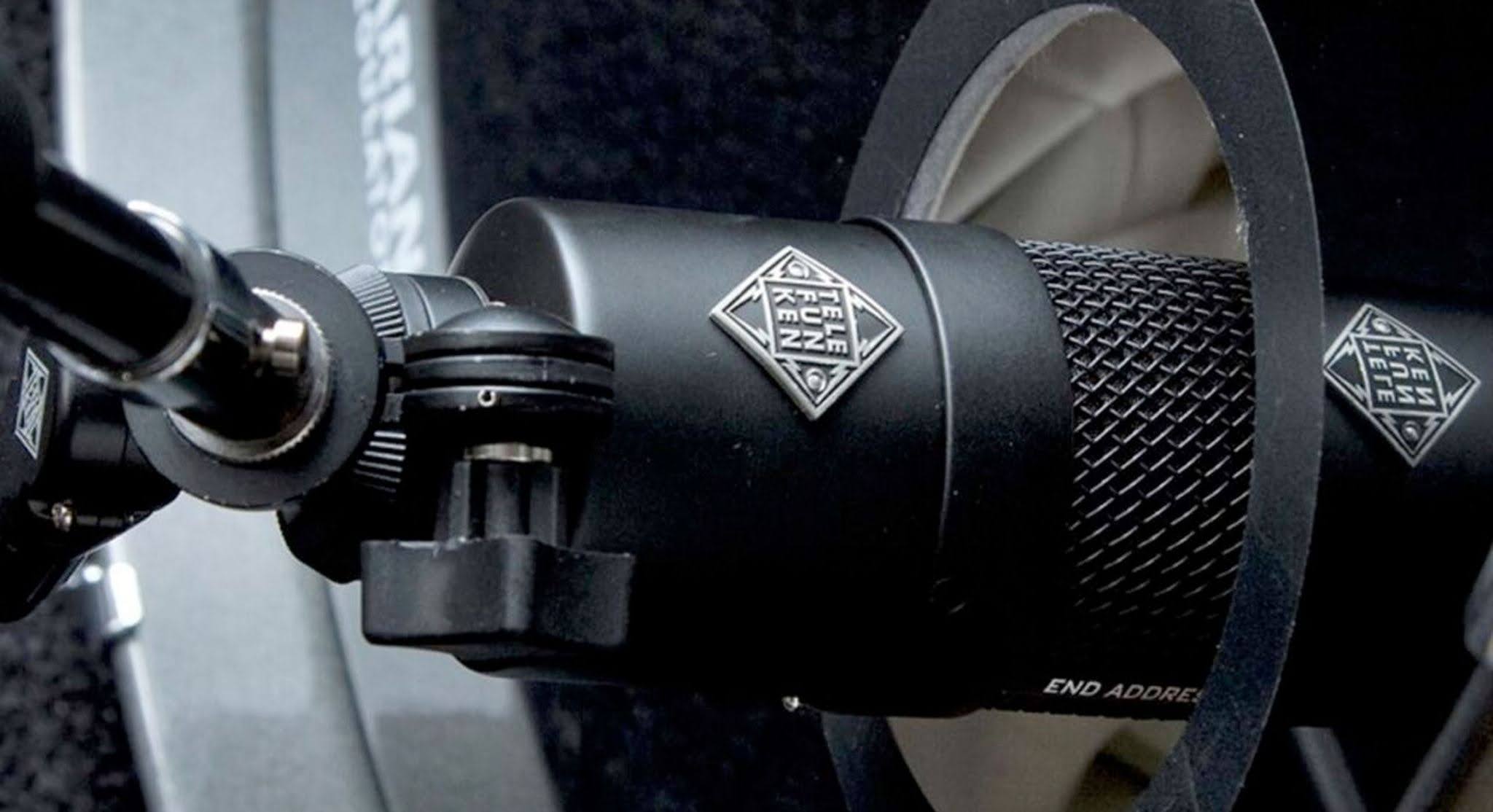

• Microphone Selection: Avoid fragile vintage condensers. Use robust, purpose-designed dynamic (moving-coil) microphones. The Telefunken M82 is exceptional here, offering onboard EQ switches to tailor the kick's scoop and click right at the capsule. Alternatively, the sE Electronics V Kick provides an incredibly compact design with multiple sonic profiles on the back of the housing. It is wise to designate a single dynamic mic exclusively for kick drum tracking to protect your remaining studio vocal microphones from high-SPL wear.

• Placement: Avoid pointing the microphone dead-center at the skin, as you will capture a richer blend of overtones closer to the edge. If the front resonant head is removed or has a port hole, place the microphone inside on a short stand, pointing halfway between the center and the rim of the beater head.

Capturing Snare & Hi-Hats

• Snare Top: Position a rugged dynamic microphone just over the rear rim, pointing toward the center of the head. Keep it tucked back so the drummer doesn't accidentally strike it. Dynamic microphones are highly effective here; their heavier diaphragms cannot keep pace with the snare's extreme transient peaks, acting as a natural, musical limiter that yields a thicker, fatter recorded tone. The Telefunken M80-SH (short handle) is a premier modern choice for snare top, offering a condenser-like clarity with dynamic toughness. The sE Electronics V7 X is another stellar dynamic option, delivering great off-axis rejection to isolate the snare from the rest of the kit.

• Managing Bleed: Proximity effect from a cardioid microphone will naturally enhance the snare's low-end body. Angle the microphone toward the stick strike zone for maximum attack, but point its rear rejection null directly at the hi-hat to avoid the destructive "chuff" of closing air.

• Snare Bottom (Optional): If you require extra wire snap, place a secondary microphone beneath the drum. An sE8 or a Telefunken M60 works beautifully here to capture the high-frequency sizzle. Crucial: You must flip the polarity (phase) switch on this bottom channel, as its diaphragm moves in the exact opposite direction of the top microphone when the drum is hit.

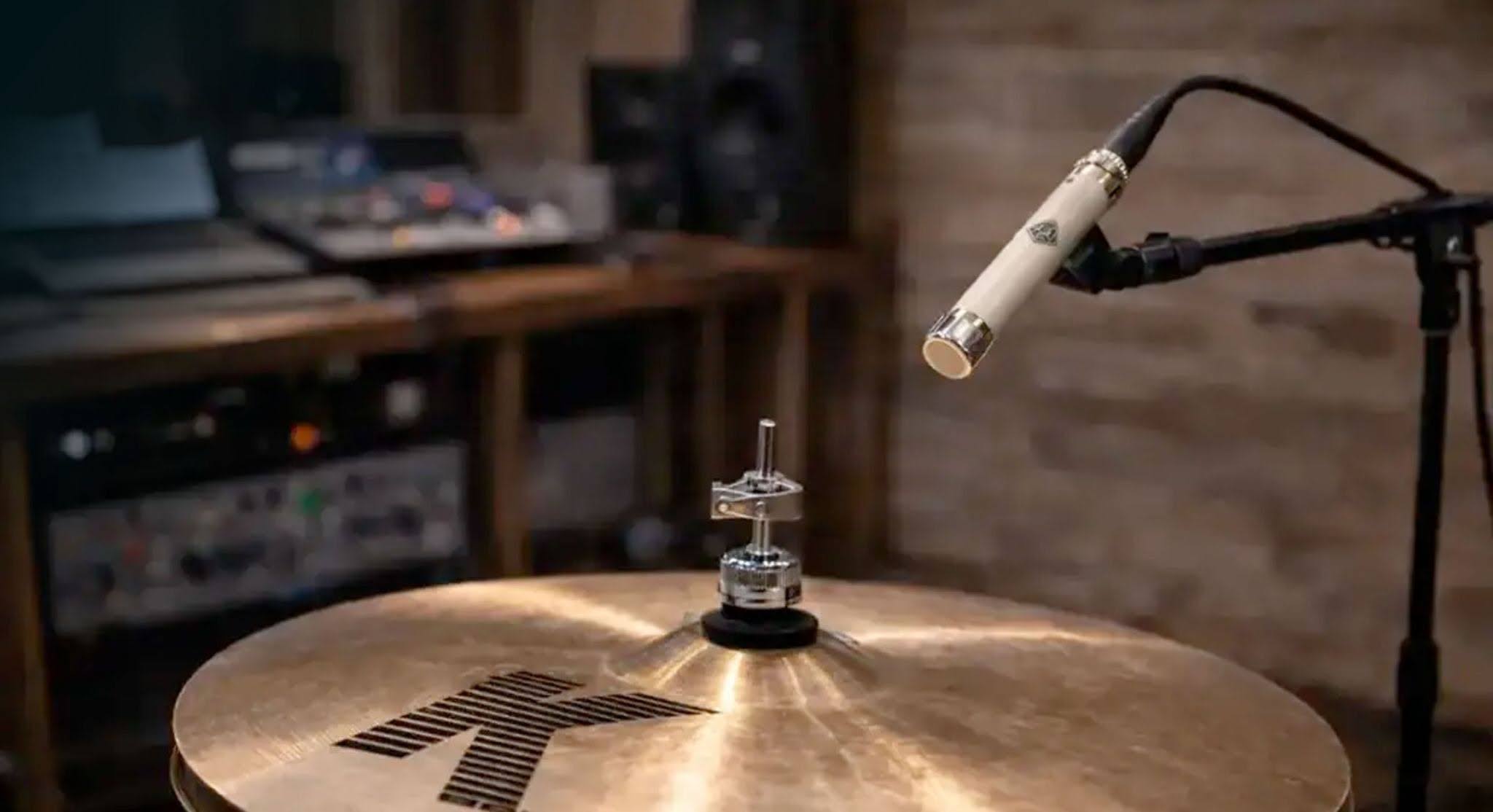

• Hi-Hats: In most sessions, the overhead and snare microphones catch plenty of hi-hat bleed naturally. If you need explicit control, place a tight pencil condenser like the sE Electronics sE8 or Telefunken M60 roughly 10–15 cm directly above the outside edge, on the side furthest from the snare to ensure it remains immune to closing air blasts.

Direct Tom-Tom Tracking

In rock or modern music, close-miking every single drum provides necessary mixing flexibility, though it opens the door to severe microphone bleed. While you can use noise gates to silence bleeding channels, gates inherently clip the initial transient click of the stick hit, resulting in an artificial sound.

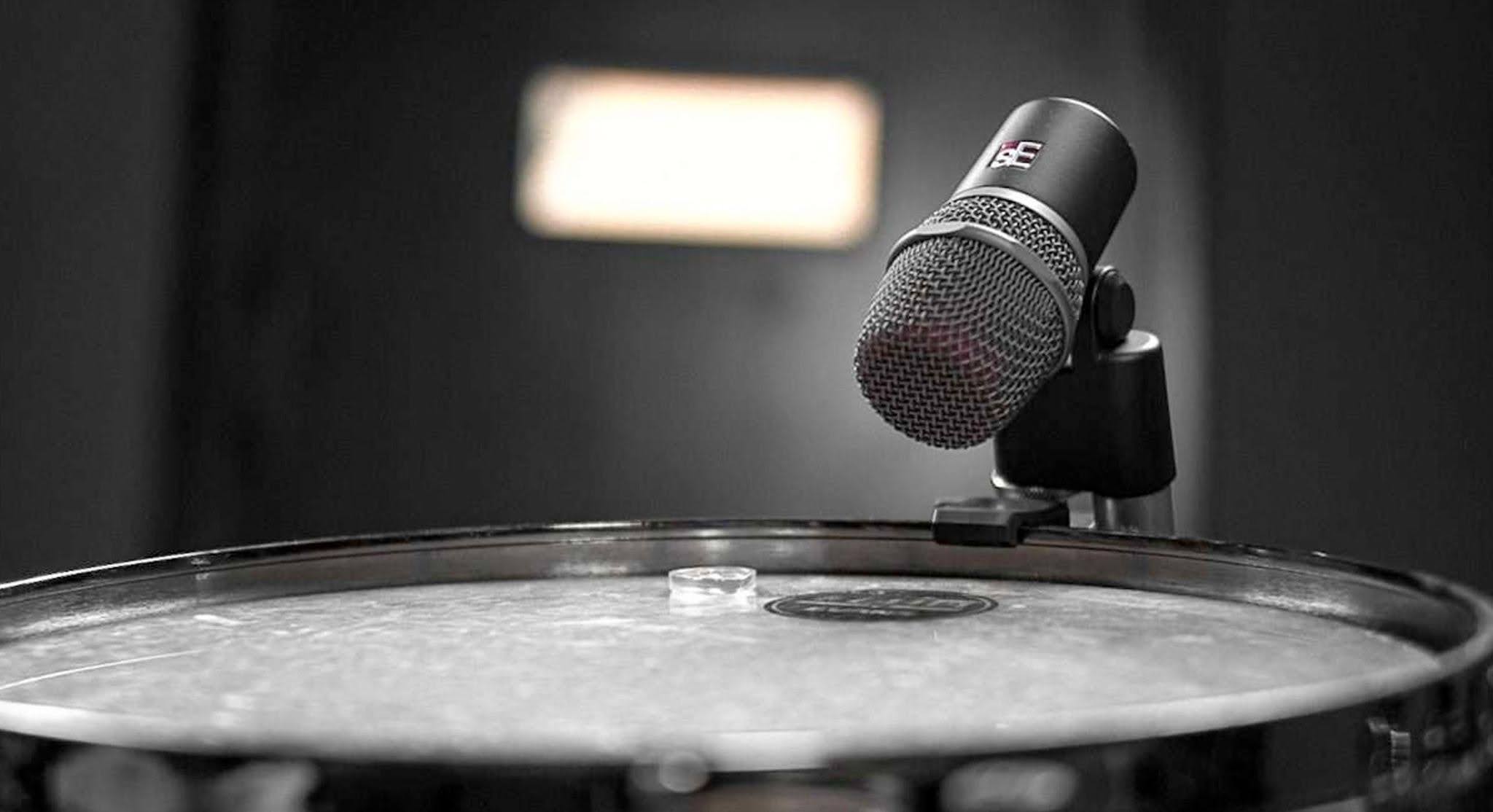

• Placement: Position dynamic microphones over the rim pointing at the center of the head, using hypercardioid patterns to reject the cymbals directly above them.

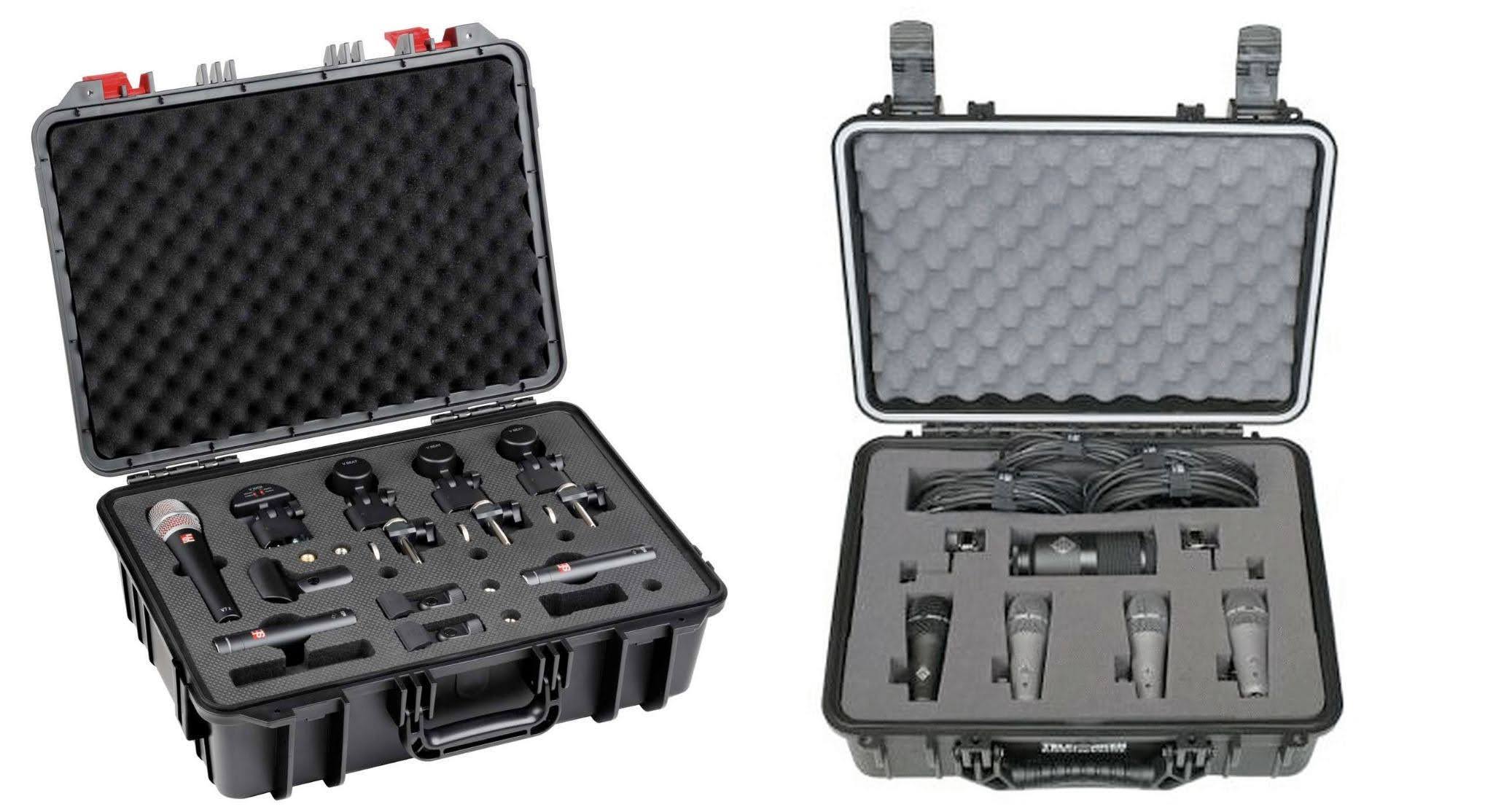

• Eliminating Stand Clutter: To avoid a sprawling forest of metal mic stands—which risk colliding, wandering, and transferring physical thuds into your tracks—use compact, specialized drum microphones. The sE Electronics V Beat paired with the V Clamp system mounts securely directly to the tom rims, staying perfectly positioned while completely eliminating stand clutter. For a premium dynamic tone with massive low-end punch on floor toms, the Telefunken M81-SH offers a slightly flatter frequency response that tames overly bright cymbals bleeding into the tom tracks.

Once your gear is set up, work quickly to check for rattles or bad lines before the drummer grows fatigued or the band crowds the mixing console.

Polarity and Phase Alignment

Because the kick drum generates the loudest, lowest fundamental frequencies, it serves as your primary phase reference. Have the drummer play the full kit with only the kick drum channel unmuted. Bring up every other microphone channel one at a time, flipping the channel's polarity (∅) switch back and forth. Leave the switch in the position that yields the thickest, most robust low-end response.

Note: If you are using dual snare microphones, prioritize aligning the top and bottom snare channels to be perfectly out-of-phase with each other first, rather than forcing them to match the kick. For cymbal overheads, a high-pass filter will roll off the low frequencies anyway, making kick drum phase alignment less critical on those channels.

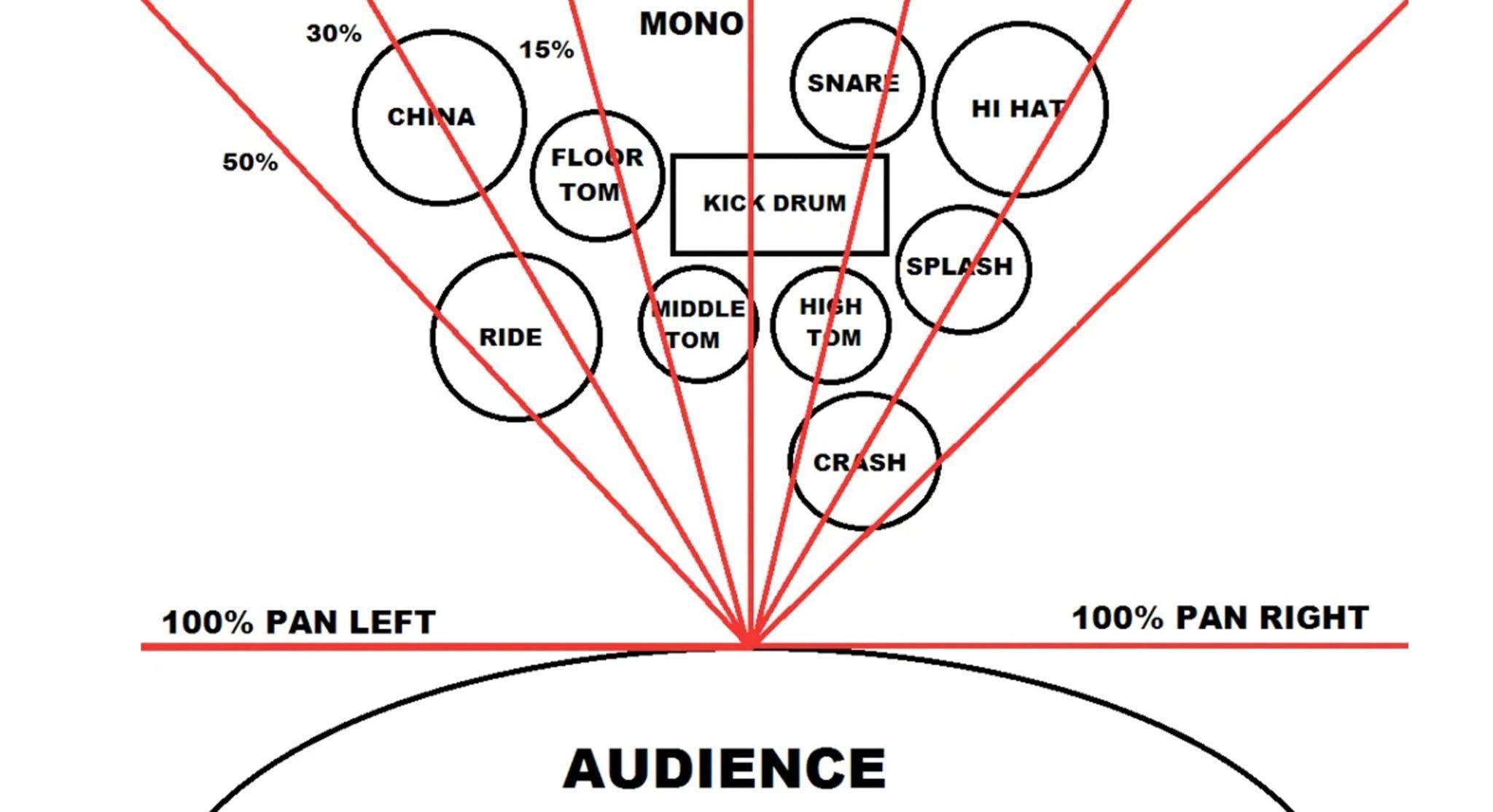

Soundstage and Stereo Panning

• The Center Foundation: Pan the kick drum dead-center. This centers the low-frequency energy in the listening room and splits the massive power load evenly across both channels of your amplifier.

• Overhead Width: Spaced overheads define your default stereo field. Panning them hard left and right creates an ultra-wide sound, but keeping them slightly narrower leaves cleaner space for wide-panned guitars and creates a more realistic acoustic soundstage.

• The Ghost Panning Technique: To avoid a blurred, confusing stereo image, your spot microphones must match the spatial placement of the overheads.

1. Listen closely to the stereo overheads and identify exactly where the snare sits in that image.

2. Unmute your close snare spot microphone. If it is panned center, bringing it up will unnaturally pull the snare sound toward the middle.

3. Mute the spot channel, shift its pan knob in the direction of the overhead snare placement, and unmute it again.

4. Repeat this refinement until increasing the volume of the spot microphone simply makes the snare louder and clearer without shifting its position in the stereo field.

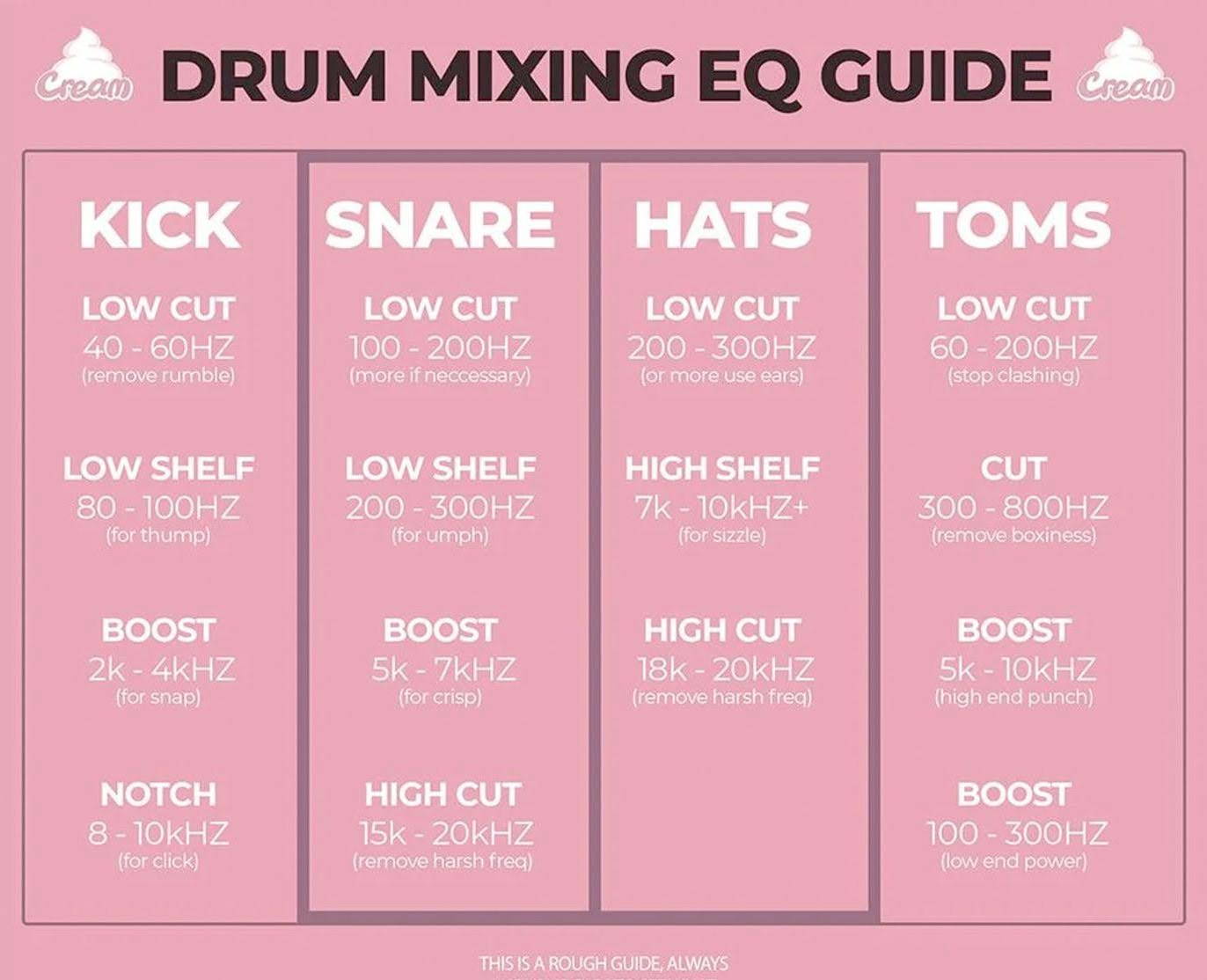

Corrective EQ Strategy

Always record your tracks completely flat, leaving equalization adjustments for the final mixdown phase so they can adapt to the rest of the instrumentation.

• Kick Drum: Attenuate the boxy mid-range frequencies around 450 Hz to clear out a cheap "cardboard box" tone (unless you've already engaged the specialized scoop switches on a microphone like the Telefunken M82). Apply a subtle presence boost near 3 kHz to help the beater click slice through a dense wall of guitars, and apply a low-pass filter to roll off everything above 5 kHz to eliminate cymbal bleed. Coordinate these choices with your bass guitar track to keep the bottom end clean and distinct.

• Snare Drum: Introduce a gentle boost around 250 Hz to fill out the fundamental body of the drum, taking care not to introduce muddiness.

• Hi-Hats: If you are utilizing a dedicated hi-hat track, a slight high-frequency lift near 10 kHz will cleanly emphasize shimmer and sizzle.

Successfully tracking a real drum kit is an intensive exercise in acoustic management, mechanical preparation, and critical listening, far removed from the instant gratification of digital drum programming. By systematically auditing the hardware to eliminate structural noise, controlling hostile room acoustics with strategic isolation, and mastering the complex physics of shell tension and head damping, you guarantee a massive, mix-ready tone right at the source. Integrating precise phase alignment and deliberate microphone placement into this workflow ensures that the raw, kinetic energy of the drummer’s performance translates into a cohesive, punchy stereo image. When you treat the drums as a dynamic, interactive instrument rather than a random assortment of individual pieces, the recording process shifts from a frustrating battle of fixing audio in post-production to the pure art of capturing moving air.
