A singer can deliver the performance of the night and still struggle to hear the details of their own voice. The vocal may sound boxy through the monitor, disappear behind loud guitars or require aggressive EQ before it feels open and intelligible. Turning the channel louder may only increase stage spill and push the system closer to feedback.

The problem is not necessarily the singer or the sound engineer. Sometimes the microphone itself is shaping the voice in a way that does not suit the performer. The TELEFUNKEN M80 Dynamic Microphone was designed to offer a different kind of handheld vocal sound: the ruggedness and feedback control expected from a live dynamic microphone, combined with a more extended, detailed response commonly associated with studio microphones.

There is a reason certain handheld dynamic microphones appear on stages around the world. They are dependable, durable, familiar to engineers and capable of handling loud performers.

However, familiarity does not mean that the same microphone will flatter every voice.

Many traditional handheld vocal microphones place a strong emphasis on the midrange. This can be useful because the human voice needs midrange energy to remain audible in a mix. On some singers, however, that emphasis can make the vocal sound:

• Boxy.
• Nasal.
• Congested.
• Dull at the top.
• Too thick around the lower mids.
• Less detailed than the singer hears naturally.

The engineer may compensate with EQ by cutting problem frequencies and adding high-frequency presence. That can work, but heavy corrective EQ may also raise stage noise, reveal harshness or create new feedback-sensitive areas.

A microphone that begins closer to the desired sound gives the engineer a better starting point.

A vocal does not disappear only because it is too quiet.

In a full band, several instruments compete for similar frequency space:

• Electric guitars occupy a large part of the midrange.
• Cymbals and keyboards occupy the upper frequencies.
• Bass and kick drum fill the low end.
• Stage monitors and room reflections add further sound around the microphone.

If the vocal microphone captures too much stage spill or presents the singer with an overly congested tonal balance, increasing the fader may not solve the problem. The vocal becomes louder, but not necessarily clearer.

A more useful microphone must achieve two things:

1. Capture enough vocal detail to remain intelligible.
2. Reject enough unwanted sound to preserve separation.

The M80 addresses both through its capsule design, frequency response and supercardioid polar pattern.

The M80 is a moving-coil dynamic microphone, but it was not designed merely as another variation of the traditional mid-forward stage mic.

TELEFUNKEN developed it around a low-mass moving-coil capsule, an ultra-thin membrane and a custom-wound output transformer. The goal was to produce a faster, more extended response while retaining the practical durability of a dynamic microphone.

In use, this can translate to:

• Clearer articulation.
• More audible breath and consonant detail.
• A more open upper-frequency response.
• Better separation in a dense arrangement.
• Less dependence on aggressive high-frequency EQ.
• A more natural sense of the singer’s individual character.

This is why the M80 is often described as having a condenser-like response.

That description does not mean it becomes identical to a studio condenser microphone. It means that its high-frequency extension and level of detail are unusual for a handheld moving-coil dynamic design.

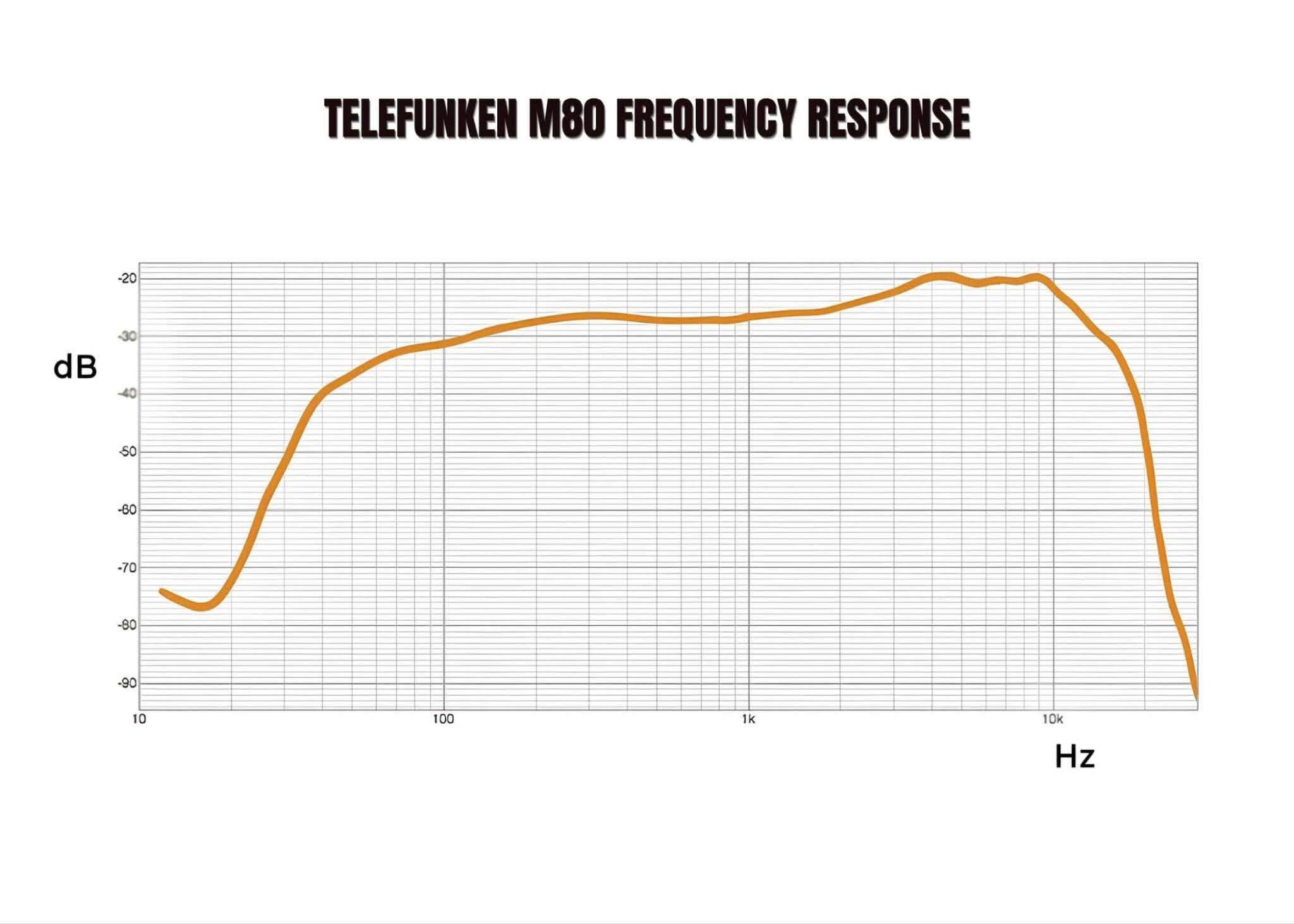

The M80 has a stated frequency range of 50Hz to 18kHz.

The lower end reaches deep enough to reproduce the body of most vocal performances, while the extended upper range captures more harmonic detail than many conventional handheld dynamics.

This can help reveal:

• The definition of consonants.
• The texture of raspy vocals.
• The air around softer singing.
• The bite of rock vocals.
• The articulation of fast lyrics.
• The difference between chest voice and head voice.

The important advantage is not simply that the microphone captures “more treble.” A useful vocal microphone must present upper frequencies in a way that supports clarity without making the singer excessively brittle.

The final result will still depend on the vocalist, microphone distance, PA system, preamp, room and engineer. However, the M80 gives the signal chain a detailed starting point before EQ is applied.

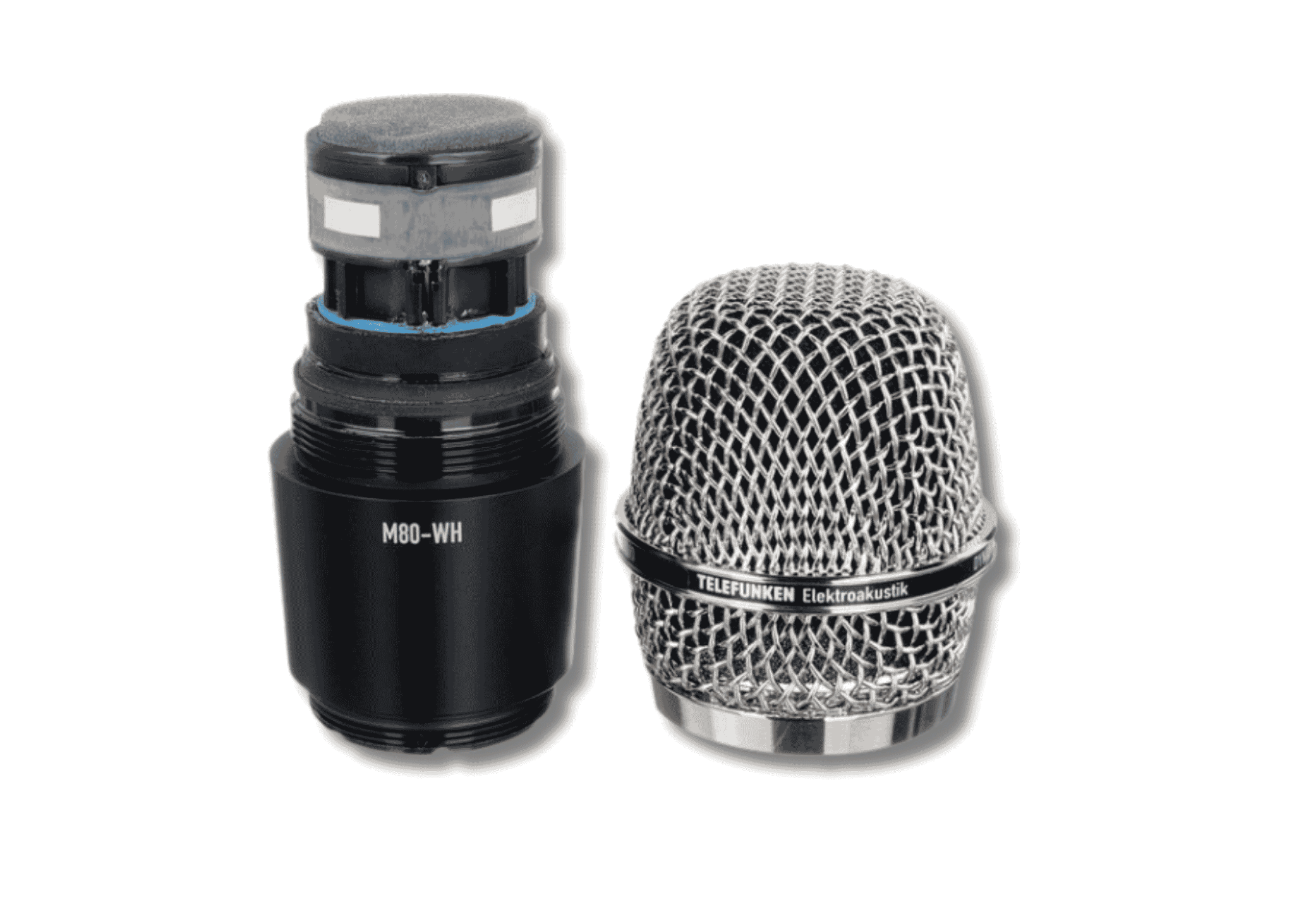

Inside the M80 is a 25mm dynamic moving-coil capsule designed with a relatively low-mass diaphragm and voice-coil assembly.

A microphone diaphragm must move in response to changes in air pressure. A lighter moving assembly can respond more quickly to short transients and fine variations in the performance.

For vocals, that may help reproduce:

• The beginning of words.
• Plosive attacks.
• Small changes in pronunciation.
• Vocal rasp.
• Fast dynamic shifts.
• Percussive beatboxing sounds.

This quicker response is one reason the M80 can feel more immediate than a slower or more heavily coloured dynamic microphone.

It also means the singer may hear more of their actual technique. Clear diction, controlled microphone distance and consistent breath support become more noticeable.

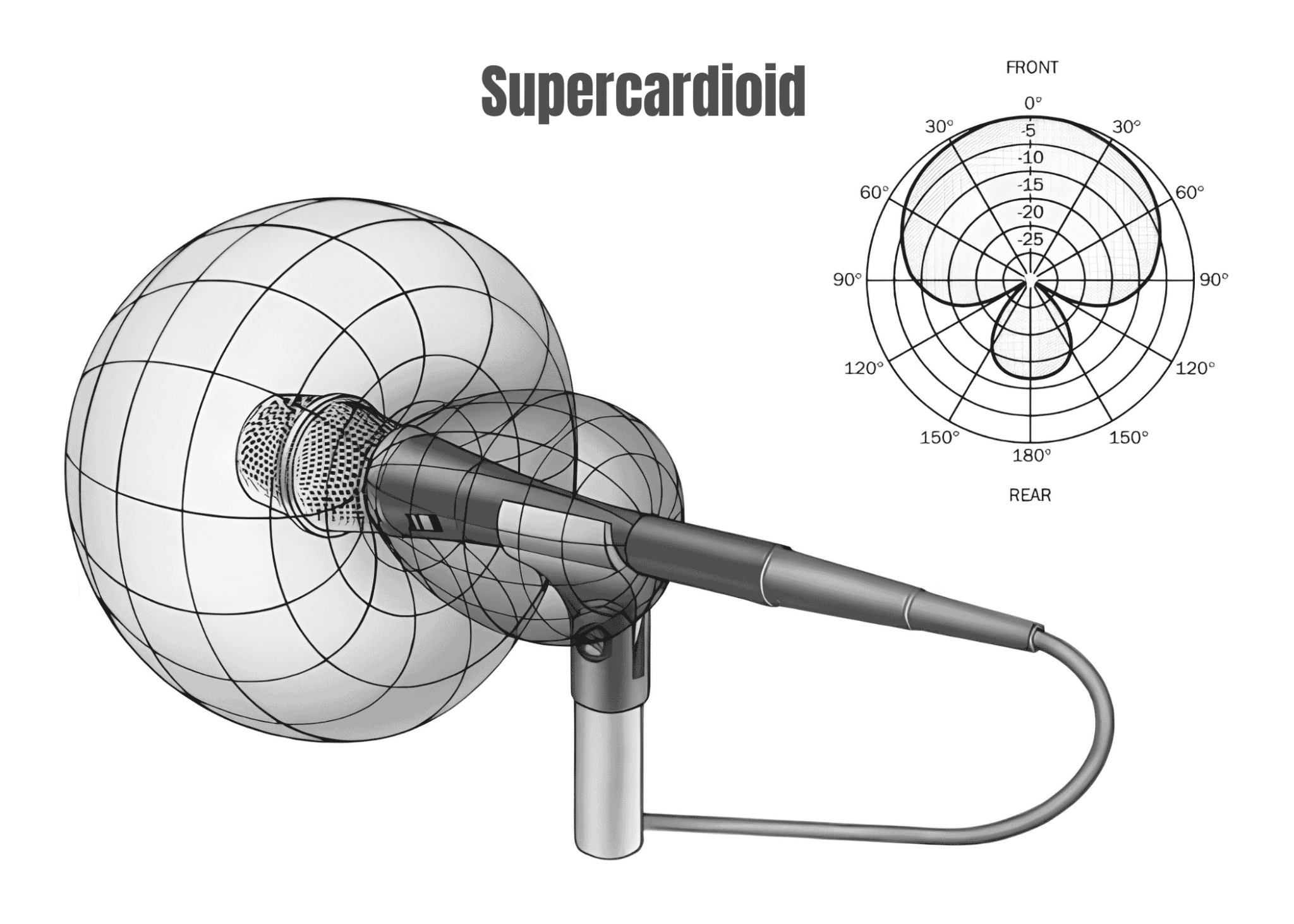

The M80 uses a supercardioid polar pattern.

A polar pattern describes the directions from which a microphone captures sound most strongly. A supercardioid microphone focuses tightly on the sound arriving from the front while reducing sound entering from the sides.

On a live stage, this can help reduce pickup from:

• Guitar amplifiers.
• Drum cymbals.
• Nearby vocalists.
• Stage reflections.
• Side-fill speakers.
• General crowd and venue noise.

Better separation gives the engineer more freedom to raise the vocal channel and process it without bringing as much unwanted stage sound into the mix.

This is particularly useful for singers performing with loud bands, acoustic drums or limited stage space.

No microphone can guarantee that feedback will never occur.

The M80’s supercardioid pattern can provide strong rejection, but monitor placement still matters. Unlike a standard cardioid microphone, a supercardioid pattern has a small area of sensitivity directly behind the microphone.

For that reason, a floor monitor should generally not be aimed directly at the rear of the M80.

A better approach is to position monitors slightly off to the rear sides of the microphone, around the rejection areas of the polar pattern. The exact angle should be tested during soundcheck because stage layouts and monitor systems differ.

Singers should also avoid covering the grille with their hand. Cupping a microphone changes its polar response, reduces rejection and often increases the risk of feedback.

When a directional microphone is moved very close to a sound source, bass frequencies often become more pronounced. This is known as the proximity effect.

Some singers use proximity effect intentionally to create a fuller, more intimate tone. The problem arises when the singer constantly changes the distance between their mouth and the microphone.

A microphone with excessive proximity effect may produce:

• Boomy close notes.
• Thin distant notes.
• Large tonal changes between phrases.
• More work for the compressor and engineer.
• An inconsistent in-ear monitor experience.

TELEFUNKEN designed the M80’s low-mass capsule to reduce excessive proximity build-up. The singer can still create tonal changes by moving closer or farther away, but the response is intended to remain more controlled.

This can be particularly valuable for energetic performers who move the microphone frequently.

The M80 is rated to handle sound pressure levels of up to 135dB SPL at 1% total harmonic distortion.

In practical terms, this gives it enough headroom for loud vocalists, screaming, shouting and close microphone technique.

High SPL handling is also why the M80 can be used on louder instruments such as:

• Snare drum.
• Brass.
• Guitar amplifiers.
• Percussion.
• Woodwinds.

For singers, the benefit is that the microphone does not need to be treated delicately. A powerful vocalist can perform at close range without assuming that the capsule will overload easily.

The mixer input can still clip if the gain is set too high, so proper gain staging remains essential.

The M80 uses TELEFUNKEN’s custom-wound T80 output transformer.

A transformer performs several electrical functions, including helping match the microphone capsule to the connected preamp. Its design can also influence the character, output behaviour and consistency of the microphone.

The M80 has a specified sensitivity of 1.54mV/Pa and an output impedance of 325 ohms.

It will work with standard professional microphone preamps and mixer inputs. Because it is a passive dynamic microphone, it does not require phantom power.

Applying phantom power through a correctly wired balanced XLR connection should not normally harm a properly functioning dynamic microphone, but the M80 gains no benefit from it.

A microphone cannot improve pitch, timing or technique by itself. It can, however, change how comfortably the singer performs.

When a vocalist can clearly hear their own voice, they may be less likely to:

• Oversing.
• Shout unnecessarily.
• Push the monitor level too high.
• Move too close to the microphone for more clarity.
• Lose confidence during quieter phrases.
• Strain to compete with the band.

An open and detailed microphone signal can make it easier to judge tone, pitch and dynamics through stage monitors or in-ear monitors.

This is where the M80 may genuinely help bring out a better performance. It does not manufacture talent. It helps the vocalist hear and deliver more of what is already there.

The M80 is especially relevant for singers working with dense arrangements.

In rock, metal, pop-punk and alternative music, the vocal must compete with:

• Multiple distorted guitars.
• Loud cymbals.
• Backing tracks.
• Synthesizers.
• High stage volume.
• Aggressive compression.

The M80’s extended high-frequency response can add articulation, while its supercardioid pattern helps reduce spill from neighbouring instruments.

For harsh vocals and screaming, the microphone can capture the texture and upper harmonic content that makes the performance intelligible. However, very bright voices or extremely sharp PA systems may require some high-frequency adjustment.

The M80 is detailed, not automatically flattering for every vocalist.

The M80’s clarity can also benefit singers with softer or more nuanced delivery.

For acoustic performances, worship settings, jazz, pop and singer-songwriter applications, it can help preserve:

• Subtle breath detail.
• Quiet articulation.
• Dynamic phrasing.
• Finger and mouth sounds that support intimacy.
• The natural difference between soft and powerful passages.

In these situations, good microphone technique becomes especially important. The M80 captures detail well, but that may include unwanted handling noise, poor diction or inconsistent distance if the performer is careless.

A conventional stage dynamic often emphasises the midrange to help the vocal project.

This approach remains useful and may suit singers who need extra thickness or a familiar rounded tone.

The M80 takes a different direction. Its presentation is generally:

• More extended at the top.
• More detailed.
• Less dependent on a strong midrange hump.
• Tighter in its directional pickup.
• More revealing of the original voice.

The better option depends on the singer.

Choose a traditional mid-forward dynamic when:

• The voice is naturally thin.
• A softer upper-frequency response is preferred.
• The singer frequently moves far off-axis.
• The familiar tonal character already suits the PA.

Consider the M80 when:

• The vocal sounds closed-in through standard stage microphones.
• More articulation is needed.
• The band arrangement is dense.
• Stage rejection is important.
• The singer wants a more detailed monitor sound.
• The microphone should preserve more of the singer’s individual tone.

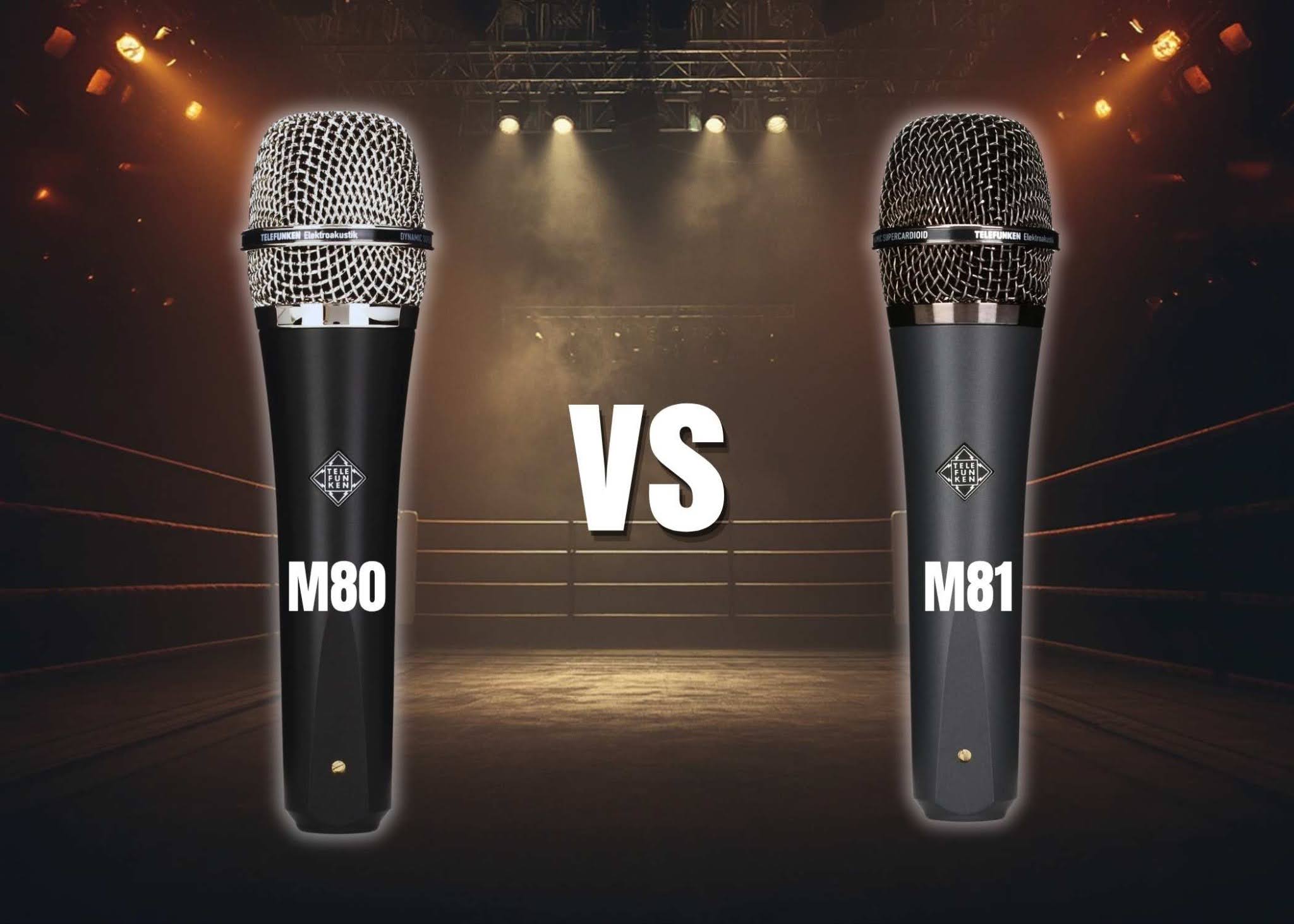

The TELEFUNKEN M81 uses the same general capsule platform, supercardioid pattern and core technical specifications as the M80, but its frequency response is voiced differently.

The M80 is designed with more upper-frequency presence and is frequently chosen for lead vocals that need clarity and projection.

The M81 has a smoother, flatter presentation with a more controlled upper range. It may suit:

• Naturally bright singers.
• Thin or sharp voices.
• Guitar cabinets.
• Toms.
• Brass.
• Sources where the M80 feels too forward.

Neither is universally better. The M80 is the more obvious choice when the aim is an open, present lead vocal. The M81 may be preferable when the source already contains plenty of brightness

A detailed microphone still depends on how it is used.

Sing into the front of the grille

The M80 is an end-address microphone. The singer should direct their voice into the top of the grille rather than the side.

Moving significantly off-axis may reduce high-frequency detail and change the vocal tone.

Keep a controlled distance

Begin approximately 5–10cm from the grille and adjust according to the singer’s volume.

Move closer for a more immediate sound. Move farther away during louder passages to control level naturally.

Avoid large, unpredictable movements unless they are part of an intentional technique.

Do not cup the microphone

Cupping the grille changes the polar pattern and can make the microphone more prone to feedback. It may also create a darker, more resonant tone.

Hold the microphone by the body below the grille.

Aim the rejection area towards loud sources

Use the M80’s directional pattern strategically. Position loud amplifiers and stage noise around the sides of the microphone rather than directly in front.

Monitor placement should be tested according to the supercardioid pattern.

Set the preamp gain during the loudest passage

Ask the singer to perform at full stage volume during soundcheck. Set the preamp so the loudest notes remain below clipping.

Do not set gain using quiet speaking and assume the same level will work when the singer begins projecting.

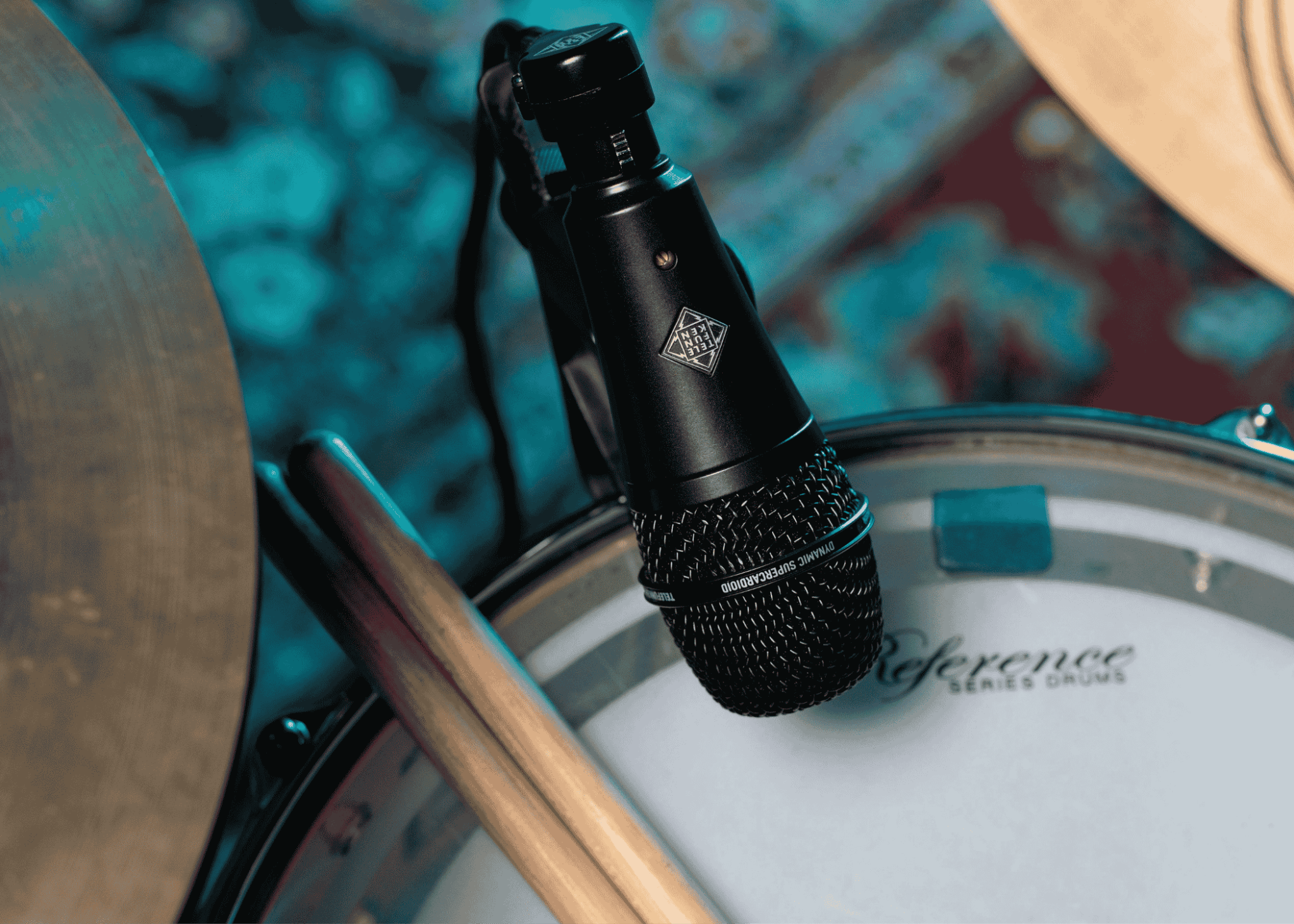

Although vocal performance is the M80’s main focus, it is not limited to singers.

Its combination of high SPL handling, fast transient response and supercardioid rejection also makes it useful for:

• Snare drum.
• Brass instruments.
• Guitar amplifiers.
• Percussion.
• Woodwinds.
• Singing drummers.
• Live instrument reinforcement.

The extended response can capture the snap of a snare, the attack of brass and the upper harmonic detail of a guitar cabinet.

For locations where a full-length handheld body is inconvenient, TELEFUNKEN also produces the shorter M80-SH Low Profile version.

The standard M80 measures approximately 184mm long, has a diameter of 48mm and weighs around 430g.

This gives it a substantial handheld feel without turning it into an unusually oversized microphone.

Each standard M80 includes:

• An M 780 microphone clip.
• A protective zipper bag.

The microphone is designed and hand-assembled in the United States.

Its dynamic construction makes it suitable for repeated transport and stage use, although it should still be protected from severe drops, moisture and damaged cables.

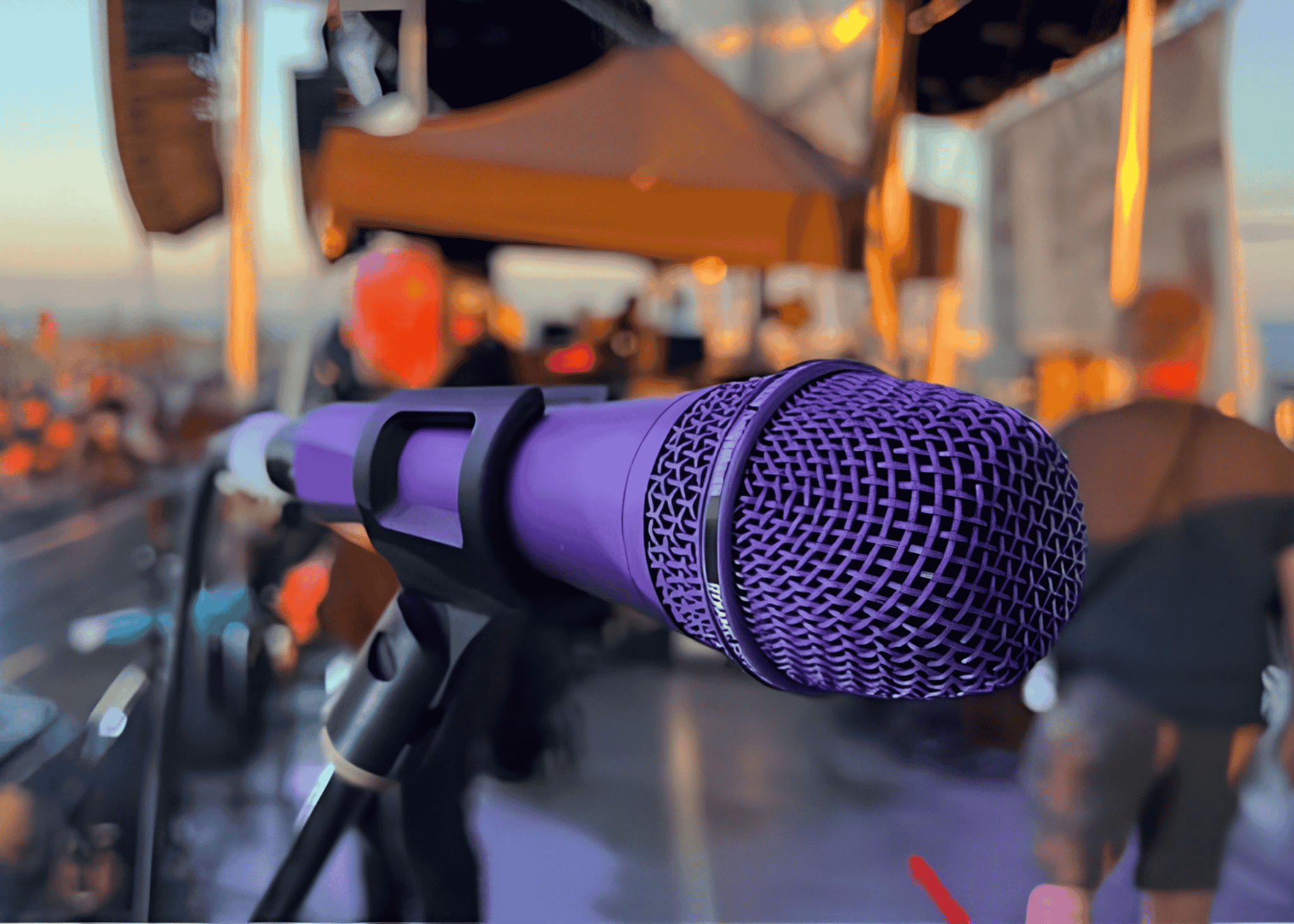

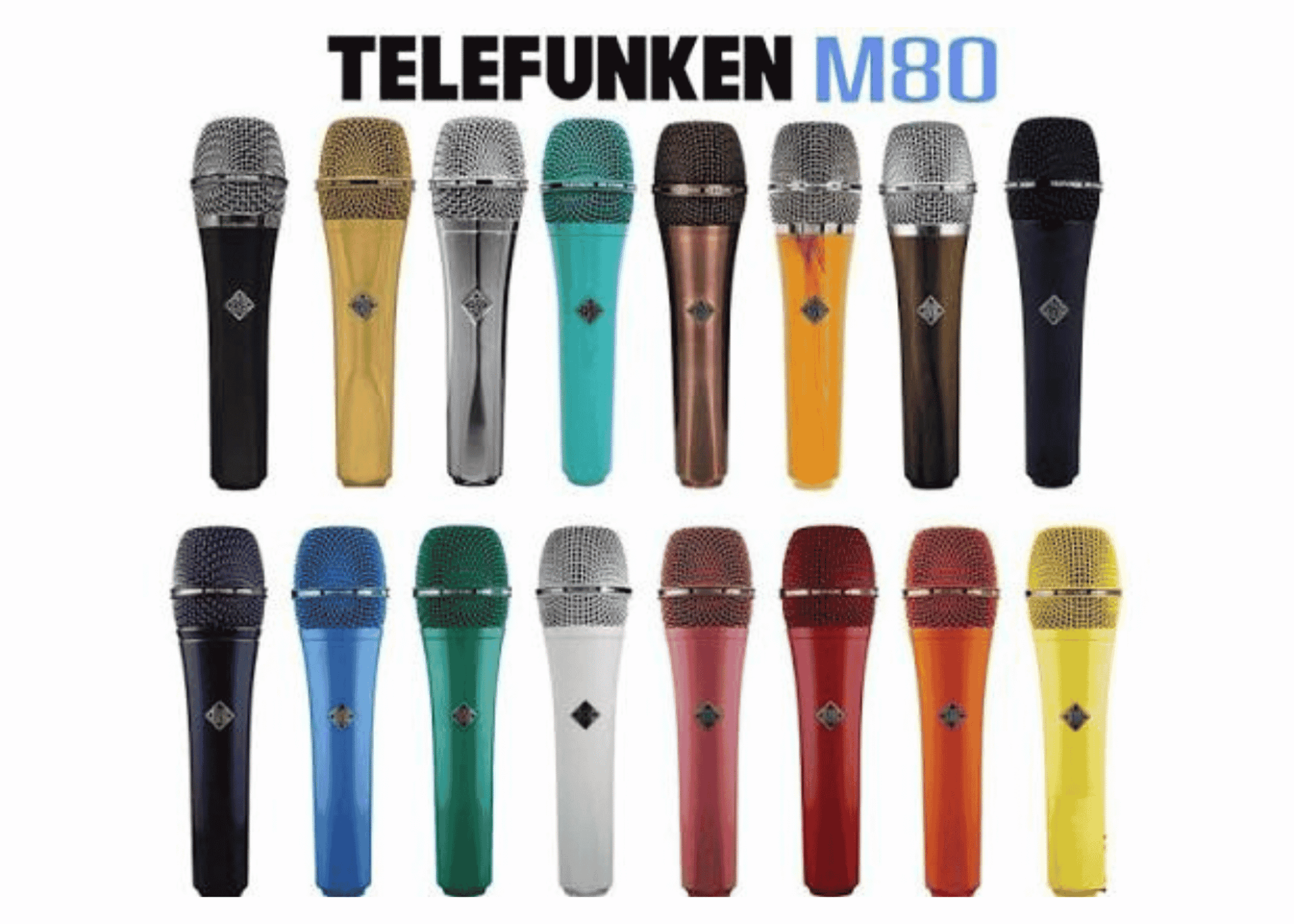

One of the M80’s most recognisable differences is its range of finishes.

Most professional vocal microphones are available in black, silver or perhaps one alternative finish. TELEFUNKEN offers the M80 in numerous solid colours, metallic finishes and wood-style designs through its Custom Shop.

Depending on Music Bliss stock and special-order availability, options may include:

• Standard black body with chrome grille.
• Black.
• White.
• Red.
• Orange.
• Yellow.
• Green.
• Blue.
• Purple.
• Pink.
• Gold.
• Chrome.
• Copper.
• Oak wood.
• Other Custom Shop body and grille combinations.

This is not merely decorative for artists who maintain a strong visual identity. A distinctive microphone can become part of:

• Stage wardrobe.
• Artist branding.
• Music videos.
• Livestream presentation.
• Worship-team colour coding.
• Multiple-vocalist identification.
• Touring production design.

Body and grille colours can also be mixed through selected Custom Shop configurations, allowing the microphone to match an artist’s branding more closely.

Availability varies, and some finishes may require special ordering.

The M80 is a particularly strong option for:

• Lead vocalists who want greater clarity.
• Singers who sound congested through traditional dynamics.
• Rock and metal vocalists performing over loud bands.
• Pop singers who want more articulation.
• Worship leaders using in-ear monitors.
• Touring performers who need a consistent wired microphone.
• Engineers who want strong side rejection.
• Artists who want a distinctive microphone colour.
• Studios that need a versatile handheld dynamic microphone.

It may be less suitable when:

• The singer already has an extremely bright or sibilant voice.
• A softer, darker microphone is preferred.
• The performer regularly sings far off-axis.
• The stage-monitor layout cannot accommodate a supercardioid pattern.
• The singer wants strong proximity-effect warmth.

In those cases, the TELEFUNKEN M81 or another microphone voicing may provide a better match.

The TELEFUNKEN M80 does not try to make every singer sound identical. Its purpose is to preserve more detail, reject more unwanted stage sound and give the vocalist a clearer connection to their own performance.

Its low-mass dynamic capsule provides a fast and extended response. The supercardioid pattern helps separate the singer from the surrounding stage. Its high SPL capacity supports powerful voices, while the T80 transformer delivers a consistent professional output.

The result is a microphone that combines the practicality of a stage dynamic with a more open, revealing vocal character.
