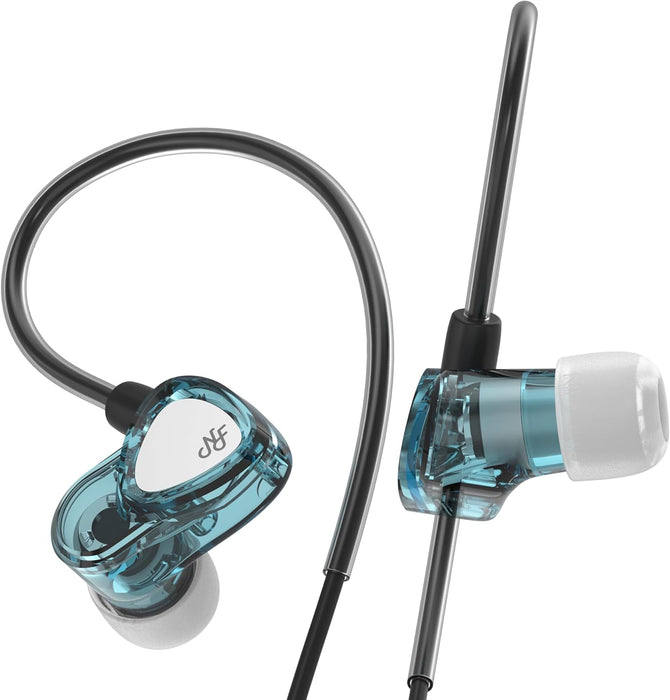

NF Acous RA05 Dynamic Driver Earphones IEM 3.5mm No Mic (Blue)

MCL-6C DYNAMIC DRIVER

A powerful engine delivers excellent sound performance. The 9μ high-polymer composite diaphragm, combined with meticulously designed patterns, achieves lower distortion and better musical expressiveness. High-performance neodymium iron boron magnets optimize the magnetic field, resulting in better dynamic transient response.

BREATHABLE DAMPING

The RA05 uses customized breathability tuning damping, which not only achieves perfect performance in the target frequency curve but also adjusts the subtle sound balance that cannot be detected by testing but is perceivable by the human ear, resulting in a more delicate and composed musical expressiveness.

DSP CUSTOMIZATION

The RA05's Type-C connector features a built-in DSP (Digital Signal Processor), empowering the NF Audio acoustics team, who excel in recording and mixing techniques. Whether it's the earphone sound quality or the microphone sound quality, the entire signal chain is optimized to achieve better acoustic performance.

MEMS MICROPHONE

The RA05 uses a costly omnidirectional MEMS microphone, offering wider frequency range, lower distortion, and higher signal-to-noise ratio. Paired with a remote control housing featuring an excellent acoustic structure, it is carefully tuned to be suitable not only for daily calls, gaming, and meetings but also for live singing.

SPECIFICATIONS

• Model
  RA05
• Dimensions
  132 × 96 × 38mm
• Weight
  120g
• Driver
  6mm Dynamic Driver
• Cable Material
  5N OFC
• Frequency Response Range
  15 - 30kHz
• Connector
  3.5mm or USB C
• Sensitivity
  102db / mW
• Impedance
  16Ω
• Insulation
  -25dB
• Distortion
  < 1%
