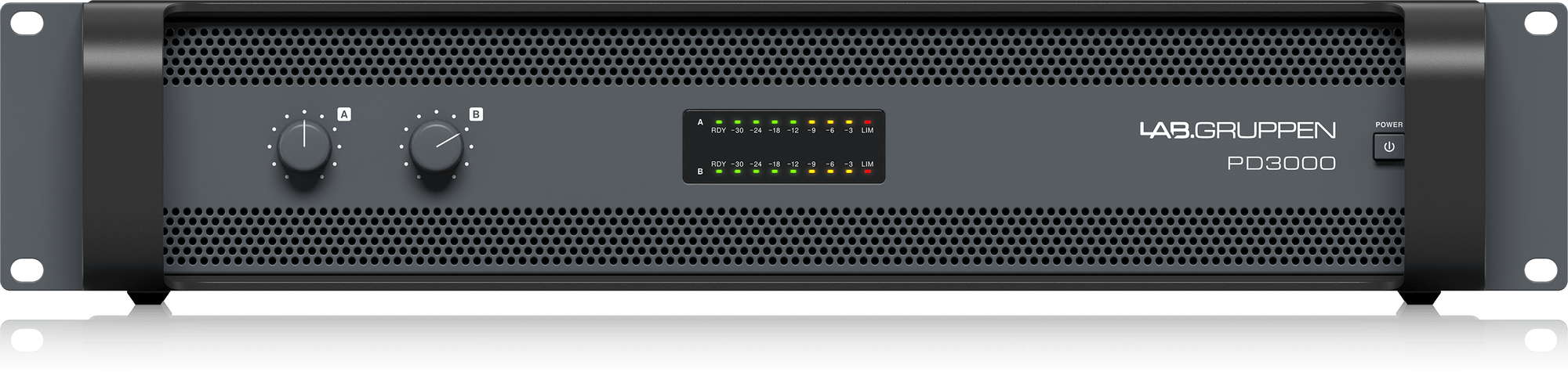

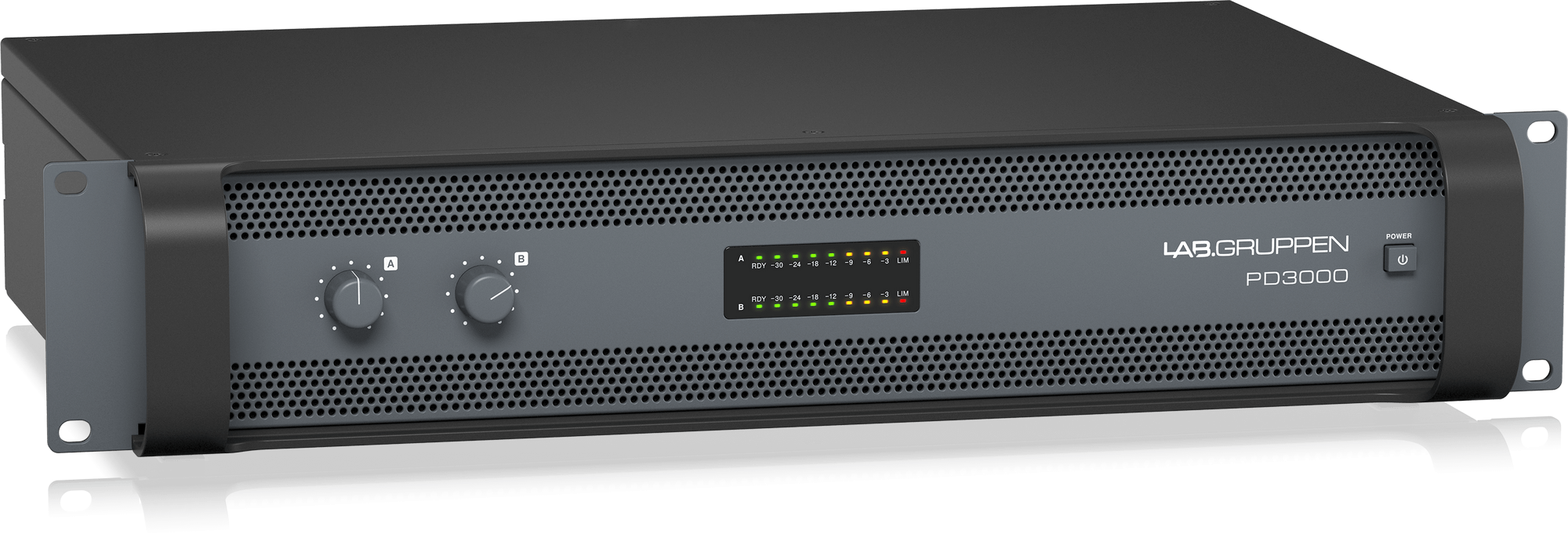

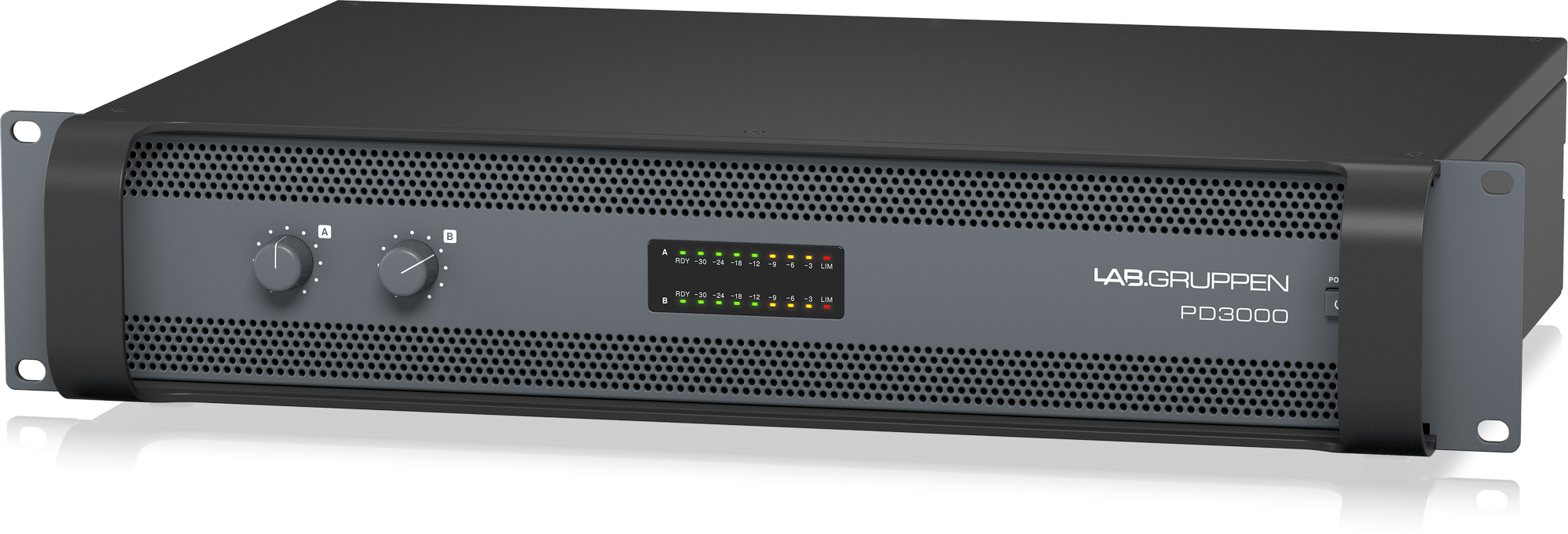

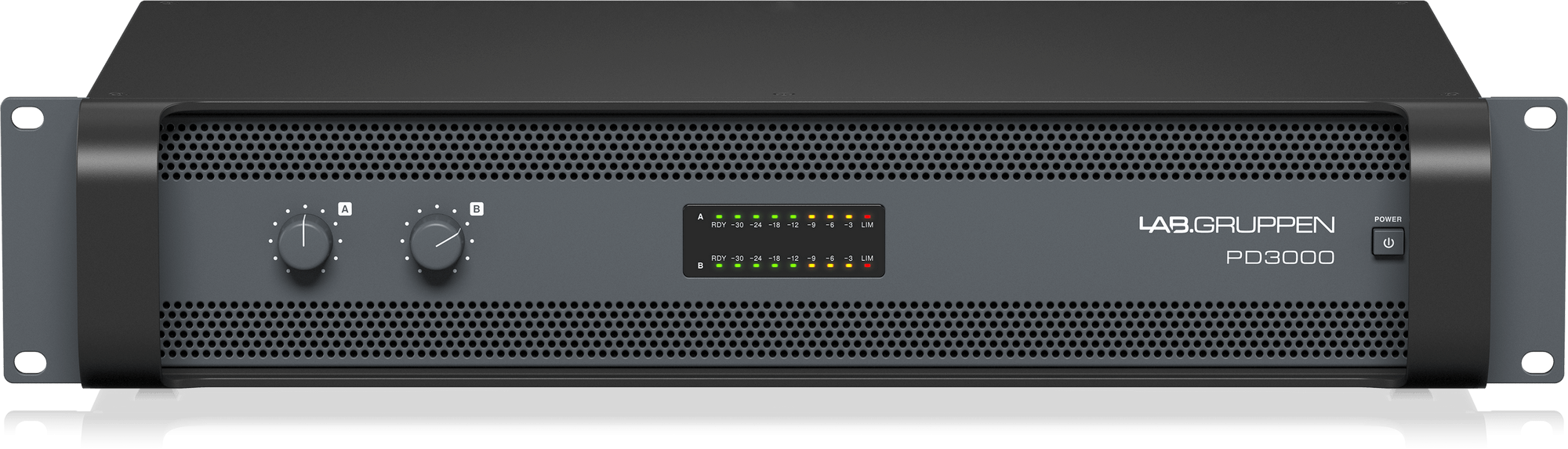

Lab Gruppen PD3000 3000W Two-Channel Amplifier with Precise Power Management

Tailor-made for a wide range of live sound applications, the Lab Gruppen PD3000 punches well above its weight. This robust 2-channel unit employs a cutting-edge IDEEA Class D amplifier that's meticulously matched to its 3000-watt output for class-leading performance and efficiency. The PD3000 features an integrated crossover with low-cut, high-cut, and full-range modes. At Music Bliss, we appreciate the PD3000's signal and limit LEDs — they make monitoring this power amplifier's performance easy. The PD3000 includes an ultra-efficient switch mode power supply, as well as comprehensive circuit protection against shorts and overloads and a temperature-controlled fan for effective cooling. You also get a built-in limiter to maximize your output and safeguard your drivers against excessive levels. The PD3000 includes a rugged and lightweight rackmount housing, balanced XLR and TRS inputs, and roadworthy speakON outputs.

FEATURES

• 3000W IDEEA Class D amplifier is meticulously matched to its rated output
• Integrated crossover with low-cut, high-cut, and full-range modes
• 8-segment signal/limit LEDs make monitoring the amplifier's performance easy
• Ultra-efficient switch mode power supply
• Comprehensive circuit protection against shorts and DC/thermal overloads
• Temperature-controlled fan facilitates effective cooling
• Built-in limiter maximizes output and safeguards drivers against excessive levels
• Rugged, lightweight rackmount housing

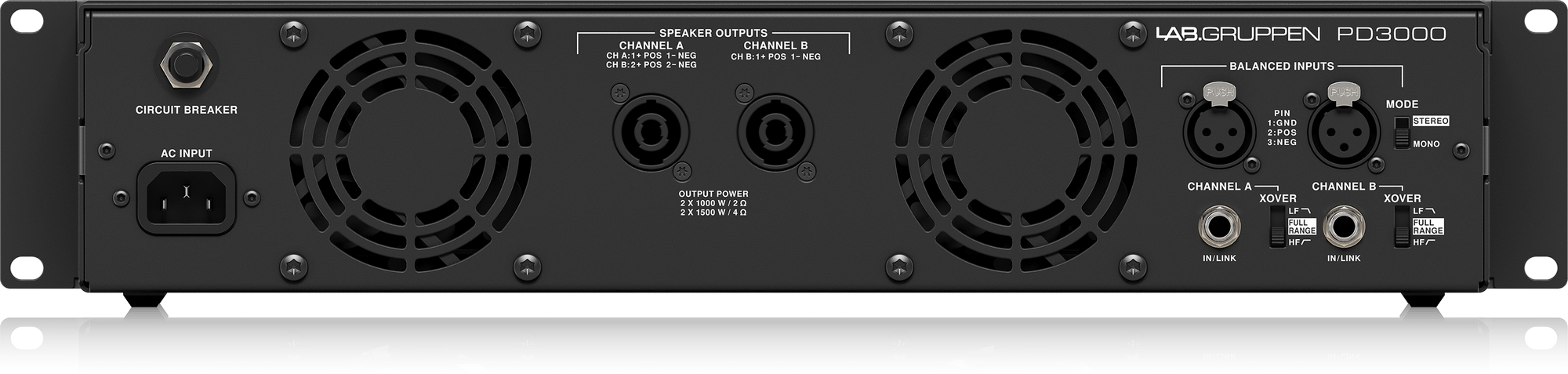

• Balanced XLR and TRS inputs and roadworthy speakON outputs

SPECIFICATIONS

• Number of Channels:2
• Power Class:Class D
• Watts/Side @ 8 ohms:800W
• Watts/Side @ 4 ohms:1500W
• Watts/Side @ 2 ohms:1000W
• Inputs:2 x XLR, 2 x 1/4"
• Outputs:2 x speakON (NLT4)
• Cooling System:Dual Fans, Front to Rear
• Frequency Response:10Hz-20kHz
• THD:< 0.1%
• Rack Spaces:2U
• Height:3.7"
• Depth:12.8"
• Width:19"
• Weight:14.3 lbs.
