Xvive PX-A Mixer/Headphone Amplifier (PXA)

Three-channel personal mixer and headphone amp for instrumentalists and singers

FEATURES

• CONTROL WITHIN REACH

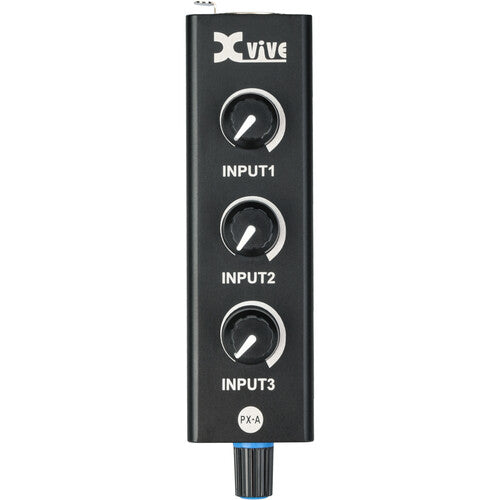

  The PX-A 3-Channel Mixer and Headphone Amplifier is a beltpack unit that accepts three audio signals, lets you mix them however you like, and passes on the mixed signal to your in-ear monitors, earphones or headphones.


• CHOOSE YOUR SOURCES
  You choose what you need to hear and adjust as needed during performance. Singers, for example, need to control their own volume, but will also need to hear whatever instruments they rely on for a pitch reference. So Input 1 might be an aux mix including only their vocal—or a mix of all vocals with their voice loudest; Input 2 could have a mix of guitar and keyboards, and Input 3 could be a mix of bass and kick drum. This is just one example!


• APPLICATIONS
  Whether you’re a singer or an instrumentalist—or both—the PX system lets you hear what you want to hear on stage, in the studio or in rehearsal.


• FOR SINGERS
  If you’re a singer, you really need to hear your own voice loud and clear, so you don’t strain your voice. But you also need to hear the instruments because you need a solid pitch reference to make sure you sing in tune. You also want to hear and feel the rhythm so you can keep your singing in the groove!


• FOR INSTRUMENTALISTS
  If you play an instrument, you want to hear what you’re playing loud and clear so you don’t wear out your fingers, and so that the subtleties of your playing matter. But you need to hear the vocals to keep you in touch with the structure (and the emotion) of the song; and you need to hear the drums so you not only play in time, but groove well with the group.

SPECIFICATIONS

• INPUT TYPE : XLR Balanced

• OUTPUT TYPE : 1/8” TRS, stereo

• IMPEDANCE : 8 - 80 kΩ

• MAX. OUTPUT : 2x 150mW @ 16Ω

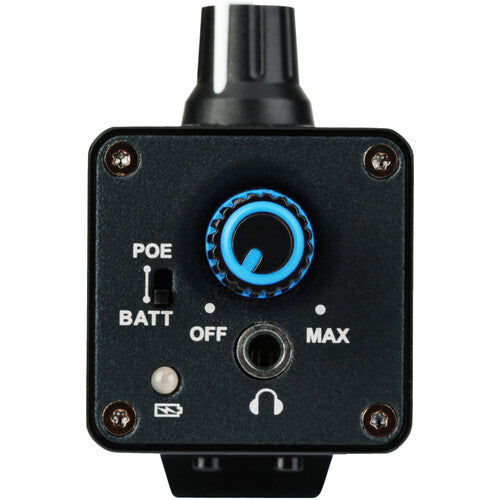

• POWER INPUT : PoE (Power over Ethernet) or 2x AAA batteries

• BATTERY LIFE : ~5 hours

• CURRENT : ~210 mA

• POE POWER REQUIREMENT : 9V/2A center-negative. Powers up to 5 PX-A units
