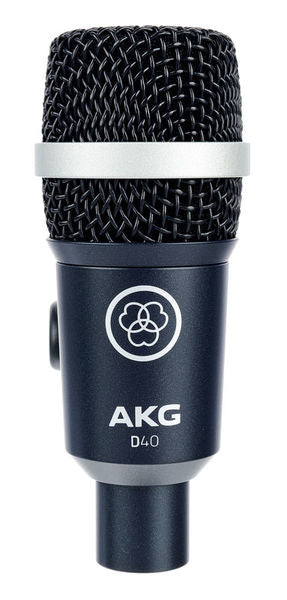

AKG D40 Professional Dynamic Instrument Microphone (D-40 / D 40)

The D40 professional instrumental microphone with its solid all-metal body will stand up to the hardships of night-after-night onstage use with a smile. Its patented Varimotion diaphragm uses a unique laminated material to damp high resonance peaks, leading to a quantum leap in audio performance. The transducer is protected by a sturdy wire-mesh cap and can take extremely high sound pressure levels with ease. An integrated stand adapter in combination with the included H440 mounting bracket makes the D40 a highly versatile tool for use on drums, percussion, wind instruments and guitar amps.

FEATURES

• Cardioid Polar Pattern
• Dual-Thickness Varimotion Diapraghm
• Highest Sound Pressure Levels up to 156db
• Integrated Stand Adapter and External Bracket
• Rugged Wire-Mesh Cap and Sturdy Die-Cast Metal Body

SPECIFICATIONS

General Specifications

• Type : Dynamic pressure gradient microphone
• Polar Pattern : Cardioid
• Audio frequency bandwidth : 50 - 20000 Hz
• Sensitivity at 1000 Hz : 2.5 mV/Pa (–52 dBV re 1 V/Pa)
• Equivalent noise level : 18 dB(A) (IEC 60268-4)
• Max. SPL for 1 % / 3 % THD : 147 dB SPL / 156 dB SPL
• Electrical impedance at 1000 Hz : ≥ 600 Ohms
• Recommended load impedance : ≥ 2000 Ohms

Dimensions

• Length : 104 mm
• Height : 79 mm
• Diameter : 44 mm
• Net Weight : 245 g

Design

• Body : metal
• Finish : dark stage blue

Audio Output

• Type : Balanced XLR
• Gender : Male
• Contacts : 3-pin

Instrument

• Drums / Percussion : Yes
• Guitar Amps / Bass Amps : Yes

Application

• Live Instrument : Yes
