Product Description

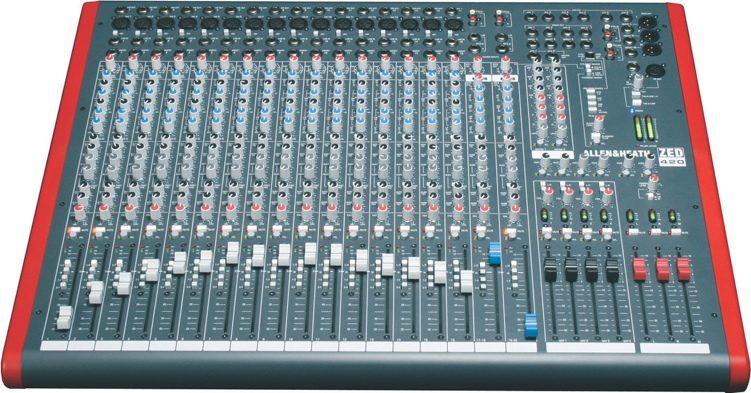

Allen & Heath ZED-420 Mixer with USB (ZED2042)

Allen & Heath ZED-420 Mixer with USB (ZED420)


Allen & Heath's ZED-420 gives you all the essentials you need for flexible live mixing: 16 channels with smooth, long-throw faders, 4-band EQ with swept mids, six aux sends, and four sub groups. You also get a direct output on every channel and master level controls on all outputs. It's an incredible amount of flexibility, at a great value, but Allen & Heath added another dimension of functionality to the ZED-420: USB connectivity! Now you can get clean, clear audio straight into and out of your computer with the ZED-420.


FEATURES
  • 16 Channel
  • 4-band EQ with 2 swept mids and in/out switch
  • 6 auxiliary sends (2 pre, 2 post, 2 pre/post)
  • 4 sub groups fed from each channel
  • L, R and M main mix outputs
  • Individual channel 48V phantom power
  • Direct output on every mono channel
  • 2 dual stereo inputs with 4-band EQ
  • Peak and signal indication on every channel
  • 2 matrix sections available; can send output to USB
  • Configurable USB stereo audio in/out
  • Master level controls on all outputs

SPECIFICATIONS
  • Type:Analog
  • Channels:20
  • Computer Connectivity:USB (2 x 2)
  • Faders:25 x 100mm
  • Inputs - Mic Preamps:16 x XLR
  • Phantom Power:16
  • Inputs - Line:16 x 1/4" (CH 1-16), 4 x 1/4" & 4 x RCA (CH 17-20 Stereo), 2 x RCA (2 TRK)
  • Outputs - Main:2 x XLR (Main), 1 x XLR (Mono)
  • Outputs - Direct:16 (CH 1-16)
  • Outputs - Other:2 x 1/4" (Matrix), 2 x RCA (2TRK), 4 x 1/4" (Group)
  • Aux Sends:2 x Pre, 2 x Post, 2 x Pre/Post
  • Send/Return I/O:6 x 1/4" (AUX)
  • Busses/Groups:4 x Groups
  • Channel Inserts:Yes (CH 1-16), 4 x 1/4" (Group)
  • Headphones:1 x 1/4", 1 x 1/8"
  • USB:1 x Type B
  • Talkback:Yes
  • EQ Bands:4-band, Sweepable Hi- and Low-Mids (CH 1-16), 4-band (CH 17-20 Stereo)
  • Height:5.25"
  • Width:28.2"
  • Depth:22.1"
  • Weight:31 lbs.

Dimension Packaging Weight : 31.2 kg
