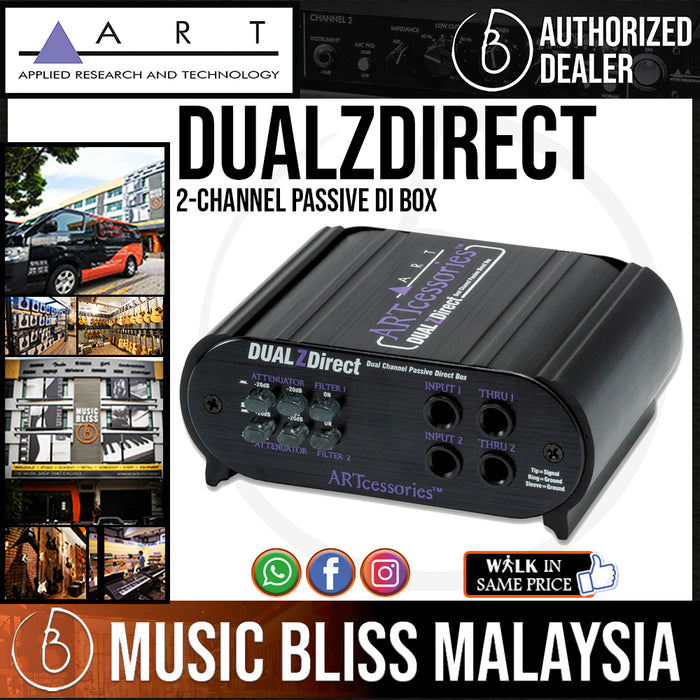

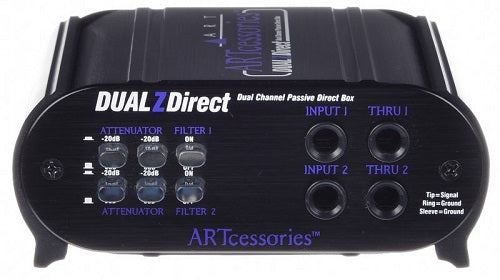

ART DUALZDirect 2-channel Passive DI Box for Active Bass, Electric and Acoustic Guitars

The ART DUALZDirect Professional Passive Direct Box is the 2-channel version of the ART Zdirect. It's a high-quality totally passive interface that lets you connect instrument, line, or speaker level signals to a mixer or other balanced input thru a high performance audio isolation transformer. A pair of high impedance single-ended 1/4" inputs are converted by the transformer into an isolated balanced low impedance signal source. The DUALZDirect has an extremely flat and wide frequency response and can handle high signal levels while still maintaining an isolated balanced low-impedance output. This gives the DUALZDirect a very clean and neutral sound with a wide variety of signal sources and over long signal runs in high noise environments.

FEATURES

• 2-channel passive direct box
• A stylish and very compact durable aluminum chassis
• Input Attenuator switches for a wide range of signal levels
• Phase Invert switch on the box for quick phase corrections
• An "input thru" jack that allows for tapping off of the signal chain
• A ground lift switch which lets you totally separate the input and output signal grounds, to reduce hum and ground-loop noise

SPECIFICATIONS

• Type:Passive DI
• Channels:2
• Pads:-20dB, -40dB
• Polarity Switch:Yes
• Ground Lift:Yes
• Inputs:2 x 1/4"
• Outputs:2 x XLR, 2 x 1/4" (thru)
• Height:1.85"
• Width:4.6"
• Depth:3.9"
• Weight:0.88 lbs.
