Blackmagic Design ATEM 1 M/E Constellation HD Professional Video Switcher

Looking to punch up your content with video switching, controls, effects, and audio tools all in one box? The Blackmagic Design ATEM 1 M/E Constellation HD is a comprehensive multimedia switcher. It makes quick work of organizing broadcasts and streams via BMD’s proven ATEM platform. This 10-in/6-out video mixer packs a spread of connectivity options. There's 10 3G-SDI inputs with automatic standard conversion, 6 3G-SDI outputs, USB connectivity, audio mix controls, streaming via Ethernet or USB, and much more. Beyond video, the ATEM 1 M/E Constellation HD is primed for multimedia work with green screen and picture-on-picture composition tools, plus a Fairlight audio mixer with effects. The ATEM's integrated control panel gives immediate access to all features; workflows can be customized and controlled via the ATEM Control App for Mac or PC. What’s more, this powerful device is approachable and simple enough to operate that even volunteer crews can learn the ropes with some initial guidance. Pro-level broadcasting and production are realities anytime and anywhere with the ATEM 1 M/E Constellation HD!

FEATURES

• Professional multimedia video switcher for live broadcasts and streams

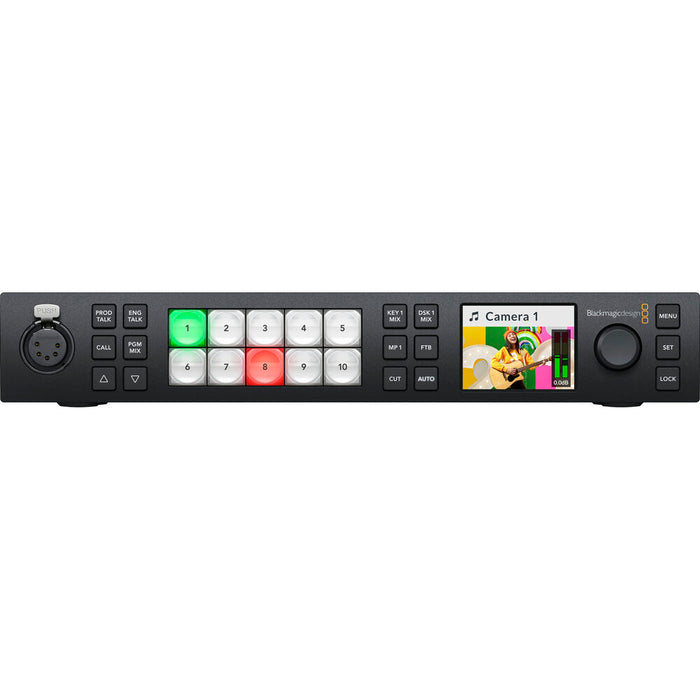

• 2.2-inch LCD monitor panel with 10 LED buttons

• 10-in/6-out 3G-SDI connections

• Professional program/preview switching

• 5-pin XLR integrated talkback mic I/O and RJ12 connector for interfacing with professional talkback systems (ClearCom, RTS, etc.)

• Fairlight audio mixing for each channel with compressor, noise gate, limiter, panning, 6-band EQ, and more

• Single multiview for monitoring of multiple inputs on a single monitor with tally, VU metering, and source labelling

• Built-in digital video effects and preview tools — instant cut, auto, effect duration (0.5, 1, 1.5, and 2 seconds), transition mix, color dip fade, and more

• 4 Advanced Chroma keyers for virtual sets, green screen effects, and parameter control

• USB-C for connecting webcams and other hardware

• Built-in streaming engine for livestreams via Ethernet or USB-C

• Near universal compatibility with almost all video software

• Media pool for graphics, logos, etc. (up to 20 stills and 200 frame animations)

SPECIFICATIONS

• Type : Live Production Switcher

• Channels : 10 video, 28 audio

• Video Format : 1080p/60fps

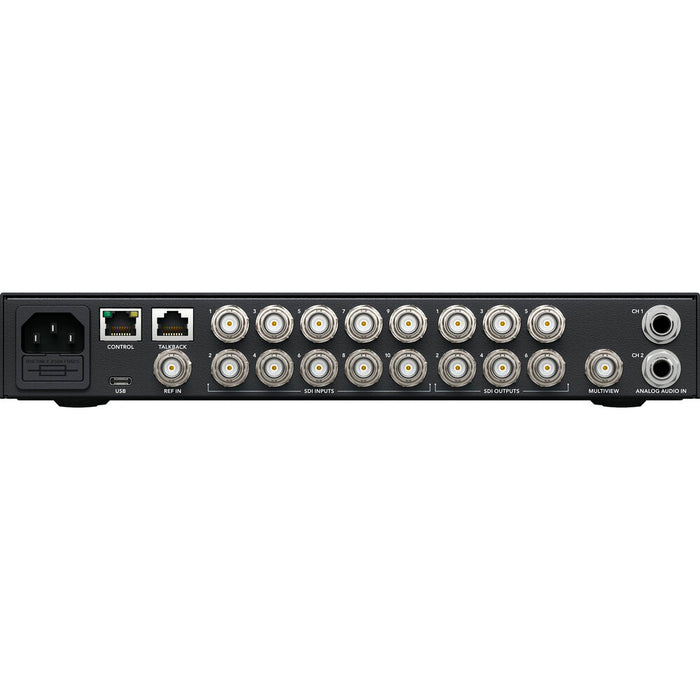

• Video Inputs : 10 x BNC (3G-SDI)

• Video Outputs : 6 x BNC (3G-SDI), 1 x BNC (multi-view)

• Audio Inputs : 2 x 1/4" TRS (CH1, CH2)

• Sync : 1 x BNC (ref in)

• Headphones : 1 x 5-pin XLR (talkback)

• USB : 1 x USB-C

• Other I/O : 1 x RJ45 (control), 1 x RJ45 (talkback)

• Software : ATEM Software Control Panel

• Power Source : Standard IEC AC Cable

• Height : 1.74"

• Width : 11"

• Depth : 6.94"

• Weight : 4.13 lbs.
