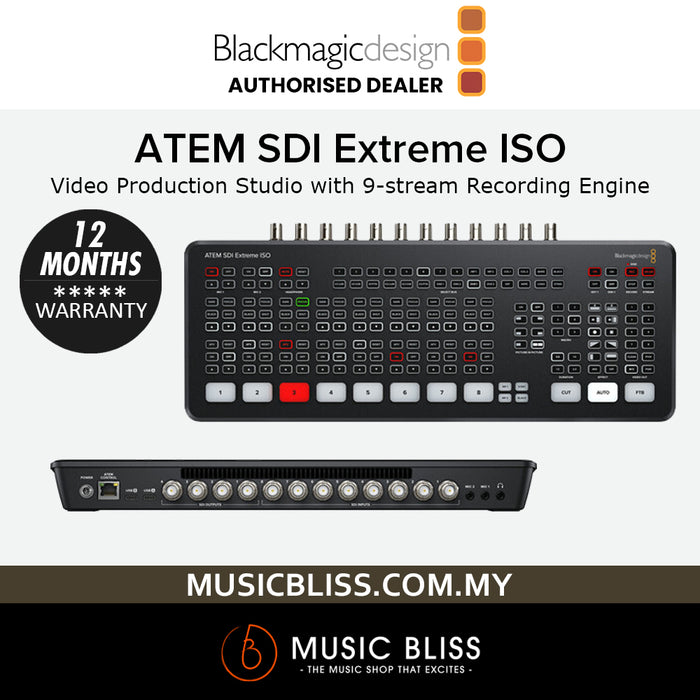

Blackmagic Design ATEM SDI Extreme ISO Video Production Studio with 9-stream Recording Engine

With the inclusion of built-in individual input recording, the Blackmagic Design ATEM SDI Extreme ISO is one of the most comprehensive video mixers on the market today. In fact, many of the production pros at Music Bliss proclaim that it’s one of the best tools for livestreaming and producing quality video content. This 12-channel video mixer packs all the functionality and features of the ATEM SDI Pro ISO but brings eight standard converted 3G-SDI inputs and four SDI outputs to the table. It also features a DaVinci project file and Blackmagic RAW file relinking for lightning-quick editing in post-production. With stunning features like direct streaming via Ethernet, direct recording to USB flash disks, USB webcam connection, and more, it’s no secret why the ATEM SDI Extreme ISO is favored for business, gaming, eSports, investment, education, and so much more. Quick to use and easy to master, the ATEM SDI Extreme ISO brings pro-level broadcasting and production capabilities to your fingertips for a wide range of differing applications. Did we mention that it even comes with a Fairlight audio mixer with EQ and dynamics?

FEATURES

• Video switcher with 8 3G-SDI inputs and 4 SDI outputs

• All SDI inputs have standards converters and re-sync

• Direct livestream to your favorite platforms like YouTube, Twitch, Facebook Live, and more via the built-in streaming hardware

• Connect via USB to Apple or Android phones for their 5G or 4G mobile data

• Record easily to USB flash disks in H.264 video files and AAC audio

• Record 9 separate H.264 video streams (8 clean ISO feeds and program video)

• Cut and Auto buttons employ transitions like dissolve, dip to color DVE squeeze, DVE push, and more

• Toggle between "cut bus" mode and "program/preview" mode

• Fairlight audio mixer allows you to keep your input audio perfectly mixed live

• Added headphone jack allows for direct mixing/audio monitoring

• Use for business presentations that utilize a PowerPoint with Skype, Zoom, Microsoft Teams, and more

• eSports events stream excellently thanks to 60 fps that eliminates lagging and makes for ultra-clear picture

• Investors and Kickstarter presenters can easily connect cameras for plenty of differing shots

• 16-view multi-view allows monitoring for inputs, preview, and program, audio mix, record/stream statuses, and more

• 4 separate advanced Chroma Keyers let give you powerful per-camera green screen keying effects

• 4 additional computer inputs enable unique virtual set design

• SuperSource multi-layering supplies 4 extra DVE layers and background layer, ideal for picture-in-picture interviews

• Even more extended features lie at your fingertips through the ATEM Software
• Control app for Mac/Windows


SPECIFICATIONS

• Type:    Live Production Video Switcher

• Channels:    8 Video, 2 Audio

• Video Format:    1080p/60fps

• Video Inputs:    8 x BNC (SDI)

• Video Outputs:    4 x BNC (SDI)

• Audio Inputs:    2 x 1/8" TRS (mic 1, mic 2)

• Headphones:    1 x 1/8" TRS

• USB:    2 x USB-C (3.1)

• Other I/O:    1 x RJ45 (ATEM control)

• Software:    ATEM Software Control Panel

• Power Source:    12V Power Supply (included)

• Height:    1.56"

• Width:    14.56"

• Depth:    5.64"

• Weight:    3.13 lbs.
