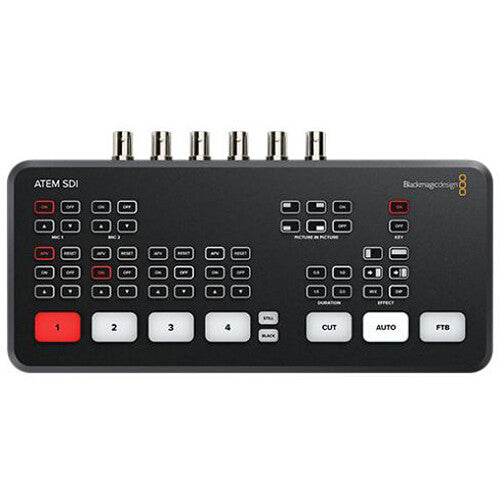

Blackmagic Design ATEM SDI Video Production Studio

ATEM SDI is a family of live production switchers designed for broadcasters who need extreme portability! ATEM SDI switchers are very similar to ATEM Mini, however the video connections are 3G-SDI and each model has double the number of video outputs! You get 4 SDI inputs on the ATEM SDI and ATEM SDI Pro ISO models and 8 SDI inputs on the ATEM SDI Extreme ISO model. Plus all SDI inputs feature standards converters and re-sync! You even get DVEs for picture in picture effects! The USB works as a webcam for connecting video to computers, while the Pro and Extreme models feature built in streaming. For audio the Fairlight mixer includes a compressor, limiter and 6 band parametric EQ on each input!

FEATURES

• 4-Channel Live Stream 3G-SDI Switcher

• Input/Output up to 1080p60 10-Bit 4:2:2

• 2-Channel Digital Audio Mixer

• 2 x 3G-SDI Output, Ethernet ATEM Control

• Media Player, Computer Input Support

• Upstream and Downstream Keyers

• DVE Transition, Chroma/Luma Keyers

• Color and Pattern Generators

• USB-C Streaming/Webcam Output

SPECIFICATIONS

• Available M/E Layers : 5 M/E

• Effect Types : DVE, Transition, Chroma Key

• Generators : 1x Pattern | 2x Color

• Audio Mixing : 2-Channel Mixing

• Processing
  - Switching Type : IR Remote, Pushbutton, Software

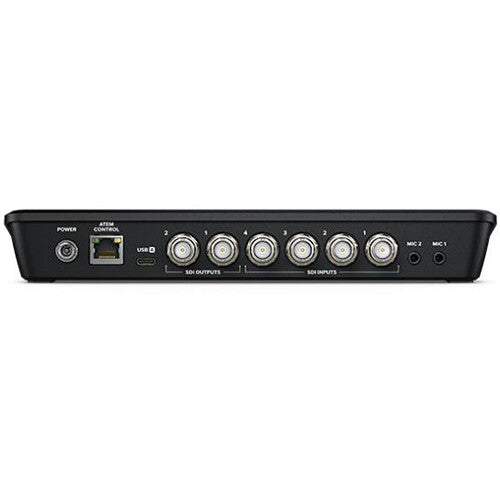

• Input
  - Number of Video Input Sources : 4
  - Video Inputs : 4x BNC (3G-SDI)
  - Input Video Format : SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps | 1080i at 56/59.94/60 fps | 720p at 50/59.94/60 fps
  - Audio Inputs : 2x 1/8" / 3.5 mm TRS Stereo Analog Female
  - Input Audio Format : Analog
  - Embedded Audio Input : SDI: 2-Channel (per Input)
• Output
  - Video Output Channels : 3
  - Video Outputs : 2x BNC (3G-SDI) (Program)
  - Output Video Format : SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps | USB-C (10-Bit 4:2:2 YUV)
  1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
  - Embedded Audio Output : SDI
  - Multiview Output : No
• Connectivity
  - Other I/O : 1x RJ45 Control Input/Output
  - HDCP Support : No
• Hardware
  - Operating System : macOS, Windows 10 Home, Windows 11 Home
  - OS Compatibility : macOS 11 or Later / Windows 10 or Later
  OS Compatibility : macOS 11 | macOS 12 or Later | Windows 10 | Windows 11
  - Processor : Not Specified by Manufacturer
  - Wi-Fi : No
  - Bluetooth : No
  - Power I/O : 1x Barrel (12 VDC ) Input
  - Power Consumption : Device: 18 W
