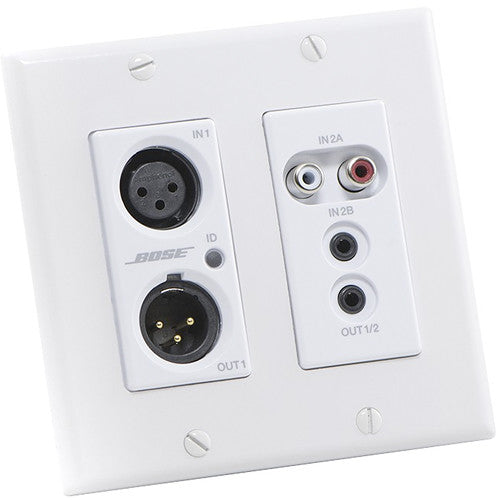

Bose ControlSpace WP22BU-D Dante Wall Plate

The ControlSpace WP22BU-D Dante wall plate is a cost effective multi-I/O wall box. The WP22BU-D features a balanced mic/line XLR input and a balanced XLR line output. Two RCA line-level inputs and a 3.5mm TRS line-level input complete the available inputs. A 3.5mm TRS line-level output is also included. The WP22BU-D is designed to fit into most dual gang US junction boxes and is PoE enabled, so all connectivity (power and data) is provided by a single CAT-5 cable. The size of the WP22BU-D and I/O density make it easy to put Dante connectivity wherever it’s needed—near the audio source or sink—thereby eliminating costly and interference-prone analog wiring. Setup and control, including like mic/line input gain, balanced/unbalanced source selection, and phantom power, as well as Dante audio routing are all integrated in ControlSpace Designer.
