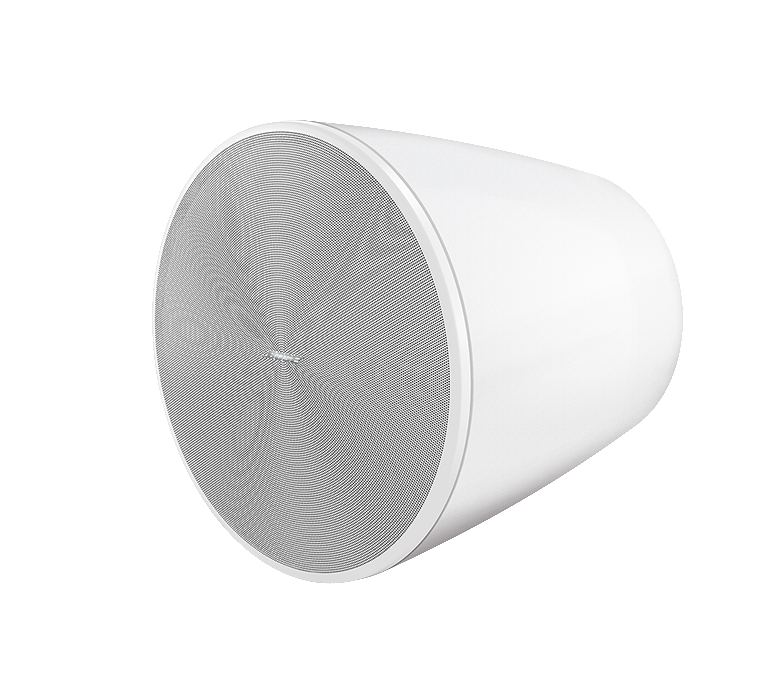

Bose DesignMax DM10P-SUB Loudspeaker - White

Delivering rich low-end performance, the DesignMax subwoofers bring instantly impressive bass to any commercial sound installation. The 300-watt DM10P-SUB is a 10-inch pendant subwoofer with a 40 - 125 Hz frequency range and has a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.

FEATURES

• Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options
• Choose from three DesignMax subwoofer models — the 180-watt in-ceiling DM8C-SUB, the 300-watt surface-mounted DM10S-SUB, and the sleek 300-watt DM10P-SUB pendant subwoofer
• Deliver rich bass performance with custom Bose drivers; for optimal performance, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
• Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
• Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
• Provide an open, attractive aesthetic with pendant loudspeakers featuring a recessed single-point suspension system that keeps hardware out of sight and can be used to hold and hide a service loop for easy access

SPECIFICATIONS

• Frequency Response (+/-3 dB) : 46 - 108 Hz
• Nominal coverage (H x V) : Omnidirectional below 200HZ
• Power Handling, peak : 1000 W
• Maximum SPL @ 1m : 110 dB
• Frequency Range (-10 dB) : 40 - 125 Hz
• Power Handling, long-term continuous : 250 W
• Sensitivity (SPL/1W @ 1 m) : 85 dB
• Nominal Impedance : 8 Ω (transformer bypass)
