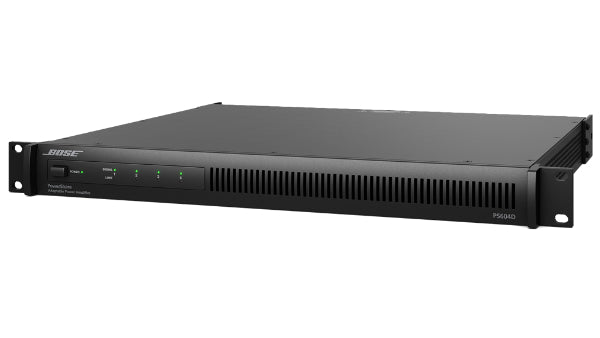

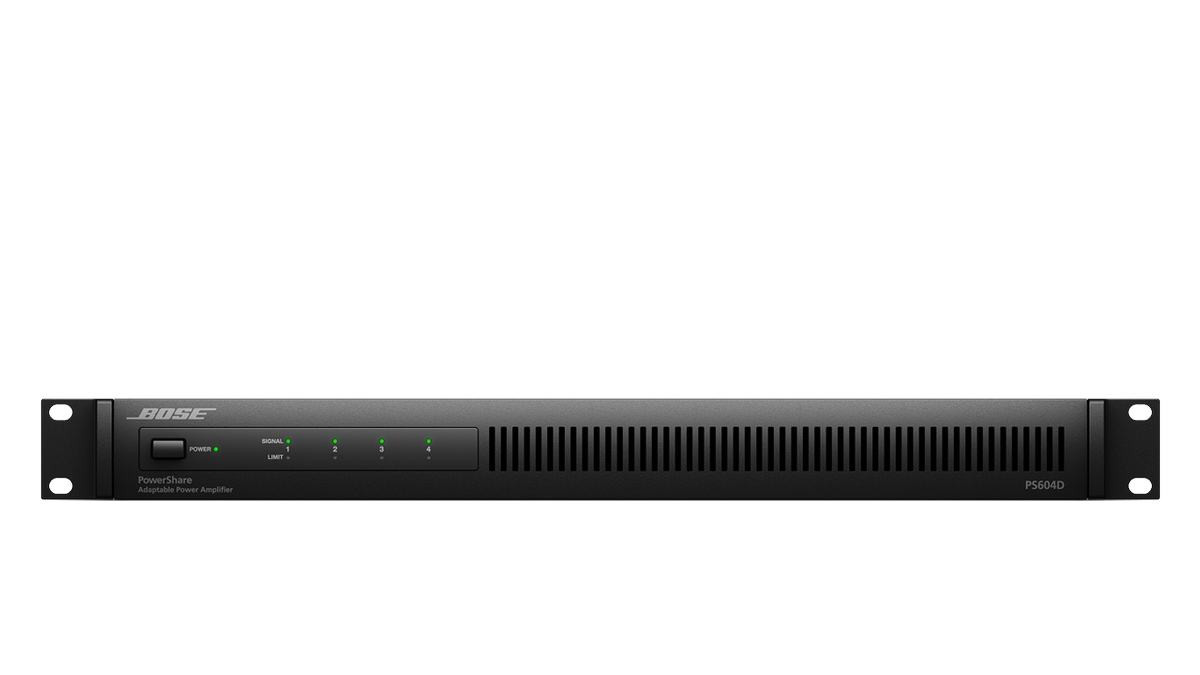

Bose PowerShare PS604D Adaptable 600W 4-Channel Power Amplifier

Power where you need it. Unique technology inherited from the well-established PowerMatch series realizes excellent audio performance, reliability, and flexibility. Adopts innovative PowerShare technology. It shares the power of the amplifier across the output channels and provides an optimal 600W output for permanent equipment. It is possible to distribute a total of 600W of power to each output as much as necessary, or to concentrate full power on one output. It supports both low impedance and high impedance transmission up to 100V, and can be easily used for various purposes. ControlSpace Designer software allows Ethernet-based configuration. Quickly set up external control options. The built-in Dante® audio network gives you the flexibility to place your PowerShare amplifier away from the source or near your speakers. Combining unmatched functionality and technology, PowerShare is one of the most versatile and high-performance power amplifiers out there today.

FEATURES

• PowerShare Technology
• Unique PowerShare technology allows you to freely distribute a total of 600W of power to all outputs. Achieve full power at each output. Rather than deciding the output of the amplifier based on the zone that requires the most power, you can freely use the required power from the total output where you need it. In addition, since the surplus power can be effectively utilized, it is possible to flexibly respond not only to the acoustic design at the time of introduction but also to unplanned changes after installation.
• Flexible Impedance Setting Set
• the channel to low impedance (4-8Ω) or high impedance (70 / 100V) without the need for bridge connections or jumpers.
• Built-in Dante audio network
• Supports audio input channels (4ch) of the Dante network. Mix the digital Dante input selected with the ControlSpace Designer software with the built-in analog input.
• Dual feedback loop system
• Improves performance and reliability. Inheriting the dual feedback loop system of the well-established PowerMatch amp series. Supports continuous monitoring and control of both current and voltage sent to each output. It improves linearity, reduces distortion, and protects speakers at the same time.
• ControlSpace Network
• Connect to a large network audio system using the settings in the ControlSpace Designer software. You can control amplifier parameters with end-user controllers and scheduling events.
•

• Adjust various parameters such as 9-band PEQ, matrix mixing, crossover, limiter, delay, mute / output polarity using the integrated speaker processing ControlSpace Designer software.
• Auto Standby
• Power Savings — The PowerShare amplifier can be configured to automatically enter standby mode when the audio signal falls below the threshold and automatically start when the audio signal is detected again.

SPECIFICATIONS

• POWER RATING
• Amplifier Power 4 x 150 W (THD+N < 0.04%, 1 kHz, 4-8 Ω, 70/100V)
• Maximum Power per Channel 600 W @ 4-8 Ω, 70/100V
• Gain (Low-Z mode) 32.0 dB
• Gain (70V mode) 35.0 dB
• Gain (100V mode) 38.0 dB
• AUDIO PERFORMANCE
• Frequency Response 4-8 Ω: 20 Hz – 20 kHz (+/- 0.5 dB @ 1 W); 70/100V: Same as 4-8 Ω with 50 Hz high-pass filter
• Channel Separation (Crosstalk) > 85 dB @ 1 kHz, > 65 dB @ 20 kHz
• Signal to Noise Ratio 100 dB (at rated power, A-weighted)
• AUDIO INPUTS ANALOG DANTE
• Input Channels 4 balanced 4 digital
• Connectors 12-pin Euroblock RJ-45 (primary)
• Input Impedance 20 kΩ
• Maximum Input Level 20 dBu (at 12 dBu sensitivity setting)
• Sensitivity 4 / 12 dBu (low / high sensitivity)
• AUDIO OUTPUTS ANALOG
• Outputs 4
• Connectors 8-pin inverted Euroblock
• INTEGRATED DSP
• A/D and D/A Converters 24-bit / 48 kHz
• Processing Functions Matrix mixer, loudspeaker EQ, real-time 9-band PEQ, Vpeak/Vrms limiters, delay, band pass, mute/output polarity
• inversion
• Audio Latency < 1 ms (Analog input to analog loudspeaker output)
• INDICATORS AND CONTROLS
• Power LED Solid green: Power is on. Blinking green: Unit is in standby mode. Solid amber: Thermal fault. Solid red: Supply fault.
• Input Signal LED Green: Signal present. Amber: Input is near clipping. Red: Input is clipping. Solid red: Indicates a fault.
• Output Limit LED Amber: Amplifier limiting an output. Blinking red: Amplifier muted. Solid red: Indicates a fault.
• Controls, Front Panel Power On/Off
• Controls, Rear Panel Output attenuators
• ELECTRICAL
• Mains Voltage 100 VAC to 240 VAC (±10%, 50/60 Hz)
• AC Power Consumption 120 VAC: 14 W (Standby), 700 W (Max) 230 VAC: 14 W (Standby), 700 W (Max)
• Mains Connector Standard IEC (C14)
• Maximum Inrush Current 14.14 A (230 VAC / 50 Hz), 8.04 A (120 VAC / 60 Hz)
• Protections High temperature, output short, extra high frequency (EHF), excessively low or high AC line voltage
• PHYSICAL
• Dimensions (H x W x D) 44 mm x 483 mm x 414 mm (1.7 in x 19.0 in x 16.3 in)
• Shipping Weight 7.8 kg (17.2 lb)
• Net Weight 6.4 kg (14.1 lb)
• Cooling System Microprocessor controlled, variable speed fans, left to right air flow
• GENERAL
• Inputs (Control) Mute input control
