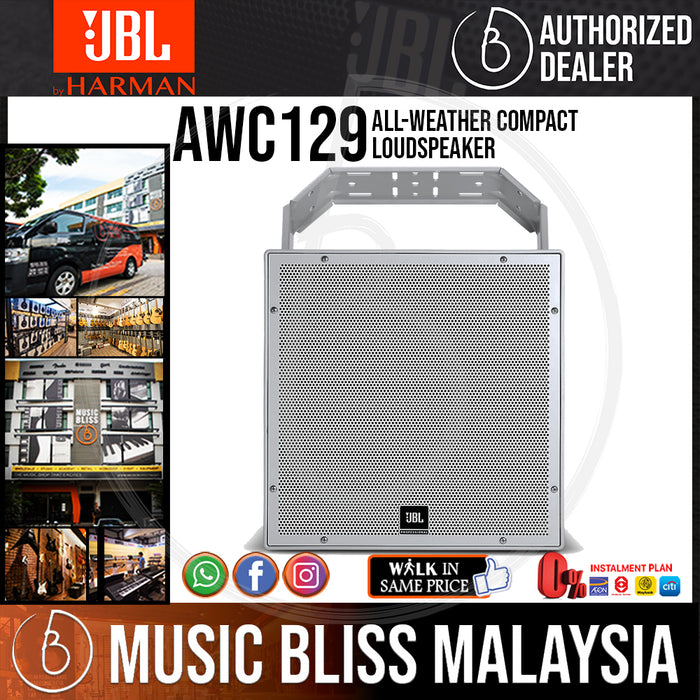

JBL AWC129 All-Weather Compact Loudspeaker - Gray (AWC-129/AWC 129)

The JBL AWC129 is a great-sounding weather-resistant speaker that’s compact enough to fit anywhere. This full-range, 2-way speaker reproduces both speech and music with remarkable clarity, and its impressive SPL capability delivers minimal distortion — even at high volumes. Beyond that, a broad 90° x 90° dispersion pattern ensures maximum coverage. At Music Bliss, we’ve found that the AWC129 is a great choice for a wide variety of environments, including sports facilities, race tracks, stadiums, fairgrounds, rodeos, skating rinks, theaters, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venues.

FEATURES

• 400-watt 2-way passive speaker
• 12” LF driver with Kevlar-reinforced cone and 3” voice coil
• Extended frequency response reproduces both speech and music with remarkable clarity
• Weather-resistant with an IP56 rating
• Impressive SPL capability delivers minimal distortion at high volumes
• Broad 90° x 90° dispersion pattern ensures maximum coverage
• High-power passive crossover yields smooth, natural midrange
• Built-in overload protection
• Compact enough to fit anywhere

SPECIFICATIONS

• Powered:No
• Power Configuration:2-way
• LF Driver Size:12" Woofer with Weather Treatment
• HF Driver Size:Coaixial 1" HF Compression Driver
• Power Rating:250W (100 hours), 400W (2 hours)
• Total Power:1000W Peak (100 hours), 1600W Peak (2 hours)
• Impedance:8 ohms
• Inputs:Barrier Strip Terminal (bare wire / spade lugs)
• Frequency Range:55Hz-20kHz (-10 dB)
• Frequency Response:80Hz-20kHz (±3 dB)
• Crossover Frequency:18 dB/octave @ 1.5kHz
• Maximum Peak SPL:122 dB SPL @ 8 ohms, 119dB SPL @ 70V/100V
• Horizontal Coverage Angle:90 Degrees
• Vertical Coverage Angle:90 Degrees
• Enclosure Material:IP56 Weather Resistant, ABS with Glass Enclosure, Corrosion Resistant Zinc Coated Steel Grille
• Mounting Options:2 x M10 (fine thread) Points, U-bracket, M6 Secondary Safety Point
• Height:17.5"
• Width:15.8"
• Depth:15.8" (cabinet), 18.5" (with gland nut)
• Weight:35 lbs. (cabinet), 41.5 lbs. (with bracket)
