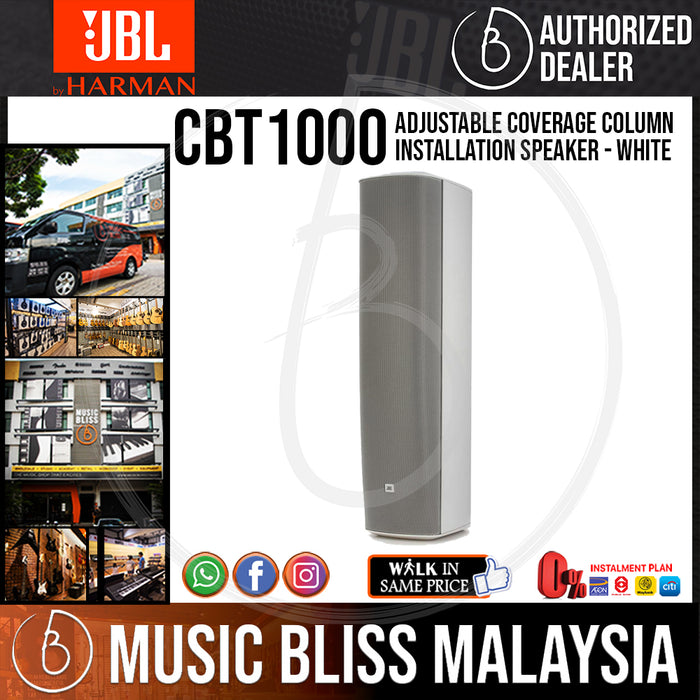

JBL CBT1000 Adjustable Coverage Column Installation Speaker - White (CBT 1000/CBT-1000)

JBL has expanded on its hugely successful Constant Beamwidth Technology with the CBT 1000 — the next leap forward in a pattern-controlled, passive loudspeaker perfect for a wide array of performance spaces. Auditoriums, houses of worship, lecture halls, classrooms — just about any conceivable space can be filled with the CBT 1000 and its highly adjustable vertical and horizontal pattern coverage. The CBT 1000 puts you in the driver's seat when it comes to customizing the direction of the sound it projects, allowing you to essentially "paint" the canvas of each room's unique shape with beautifully projected sound. Acoustic projection and design enthusiasts here at Music Bliss love the CBT 1000.

FEATURES

• Constant Beamwidth Technology provides directivity through highest frequencies for reduced lobing
• Individually adjustable vertical pattern coverage gives you control for acoustic shaping to fit room
• Patent-pending Tapered Horizontal Waveguide lets you vary horizontal dispersion for better coverage of front and rear corners of room
• Single-speaker room coverage at high SPL, with little over-splash and strong bass response down to below 40Hz
• Frequency range 45Hz–20kHz perfect for music or speech
• Switchable voicing adds a presence boost for speech applications

SPECIFICATIONS

• LF Driver Size:6 x 6.5" Neodymium woofers
• HF Driver Size:24 x 1" Soft dome tweeters
• Power Rating:1500W (2 hours continuous), 1000W (100 hours)
• Peak Power Capacity:4000W (100 hours continuous)
• Impedance:4 ohms
• Inputs:1 x Dual Bare Wire terminals
• Frequency Range:45Hz-20kHz
• Maximum Peak SPL:130-133 dB SPL @ 1m (music voicing dependent on directivity)
• Horizontal Coverage Angle:100-160 Degrees
• Enclosure Material:Fiberglass reinforced ABS cabinet, powder coated white 1050 aluminum grille
• Mounting Options:22 x M8 Fly Points (back, top, bottom), Wall Mount (hardware included)
• Height:40.2"
• Width:9.9"
• Depth:13.6"
• Weight:54 lbs.
