PreSonus AVB-D16 16-ch I/O AVB to Dante Bridge

Add Dante compatibility to any AVB-equipped StudioLive Series III mixer and stage box with the PreSonus AVB-D16 AVB to Dante bridge. This 16-channel I/O box includes one AVB port and two Dante ports — primary and secondary, and it features precision clock isolation for reliable hardware sync. Housed in a rugged metal chassis, the PreSonus AVB-D16 bridge is powered by a 12V adapter, and its small form factor fits nicely on a mixing desk, rack shelf, or tucked next to a stage box. For high-quality audio, the AVB-D16 supports 44.1kHz and 48kHz sample rates for both AVB and Dante, and it supports higher 88.2kHz and 96kHz sample rates for Dante alone. At Music Bliss, we appreciate the flexibility and scalability of Dante networked audio systems, and, when it’s time to expand your system, you can connect multiple AVB-D16 devices to increase your channel count. Power up your Studio Live Series III ecosystem with Dante audio networking!

FEATURES

• Compact AVB to Dante interface

• 16 x 16 channels over AVB; 16 x 16 channels over Dante

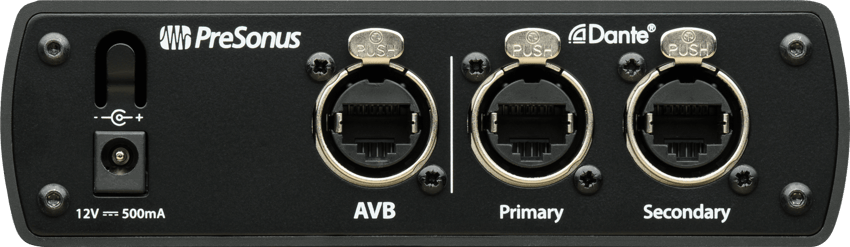

• 1 x AVB etherCON port; 2 x Dante etherCON port (primary and secondary)

• Ultra-stable hardware sync with precision clock isolation

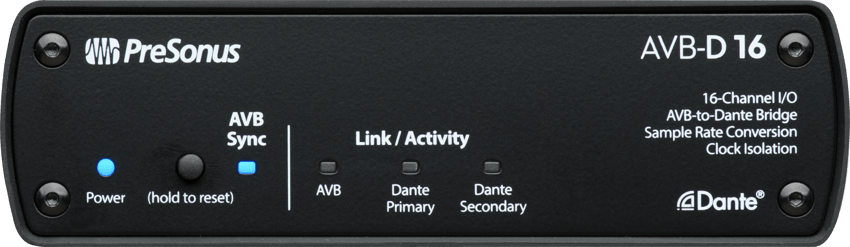

• Easy-to-read network link and activity indicator lights

• Sample rate support: 44.1kHz and 48kHz - AVB & Dante; 88.2kHz and 96kHz - Dante

• Expand your systems channel count with multiple AVB-D16 units

• Housed in a rugged metal chassis; powered by 12V adapter

SPECIFICATIONS

• Type:    AVB to Dante Bridge

• Compatibility:    StudioLive Series III

• Channels:    16 x 16

• Data I/O:    1 x Locking EtherCON (AVB), 2 x Locking EtherCON (Dante)
