QSC GX5 700-watt 2-channel Power Amplifier

The QSC GX5 700-watt power amplifier gives your speakers the power they need while giving you the efficiency and protective features you want for easy operation and peace of mind. The QSC GX5 uses advanced components for both light weight and reliability. Its Guardrail protection allows delivery of peak power while preventing overloads. It's equipped with a crossover switch, so adding a subwoofer to your system is a snap. Optimized for 4- and 8-ohm speakers, this amp also fits perfectly into popular racks, and its lightweight design (less than 30 lbs.) makes the QSC GX5 incredibly easy to transport.

FEATURES

• Power levels matched to the most popular speakers
• Optimized for maximum real-world headroom into 4 ohm and 8 ohm speaker systems

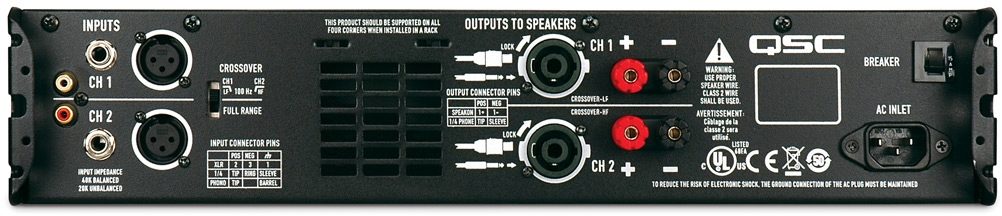

• Inputs: XLR, 1/4" TRS and phono input connectors for compatibility with any source
• Outputs: Speakon combo accepts, 1/4" (TS) plugs or Speakon 2-pole and 4-pole plugs (connects 2 poles only). Binding posts support all other speaker wiring systems.
• Minimum depth chassis (10.1" / 257 mm) fits in compact, inexpensive effects racks
• Lightweight - less than 30 lbs.
• Detented gain controls for precise setting and matching of sensitivity
• GuardRail automatically protects the amplifier and loudspeakers from damage due to temperature rise or overdrive without shutting down the show
• Front panel LEDs monitor power, signal and clipping
• Subwoofer/Satellite crossover built-in

SPECIFICATIONS

• Number of Channels : 2

• Power Class : Class H

• Watts/Side @ 8 ohms : 500W

• Watts/Side @ 4 ohms : 700W

• Inputs : 2 x XLR, 2 x 1/4", 2 x RCA

• Outputs : 2 x SpeakON, 2 x Binding Posts

• Cooling System : Variable-speed fan with rear-to-front airflow

• Rack Spaces : 2U

• Height : 3.5"

• Depth : 10.1"

• Width : 19"

• Weight : 28 lbs.
