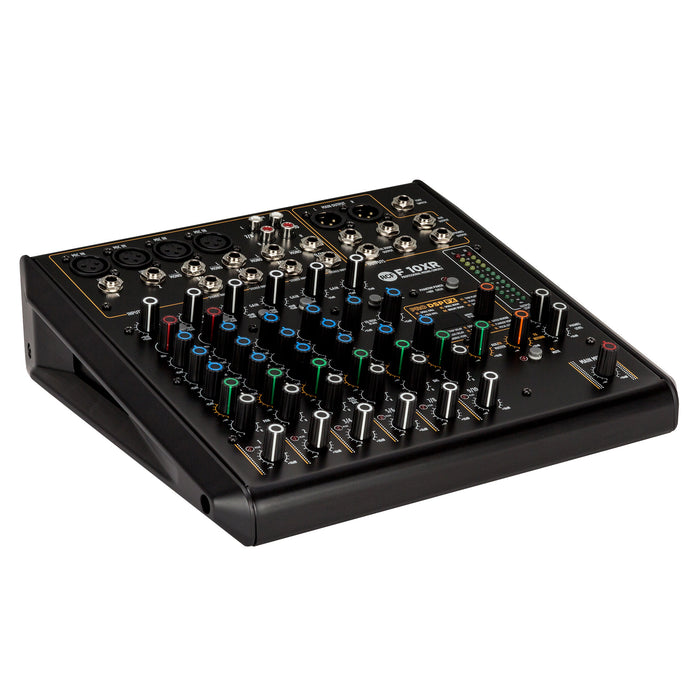

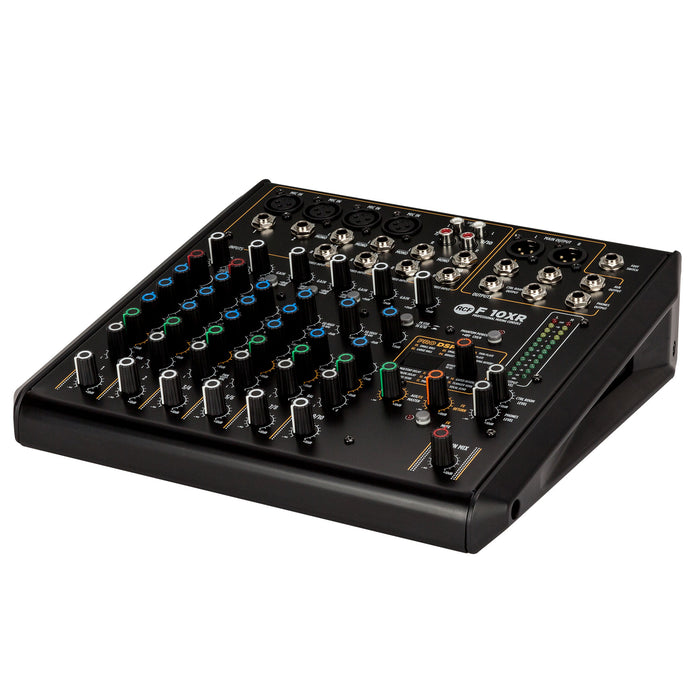

RCF F 10XR 10-Channel Mixer with Multi-FX

RCF’s next generation F Series mixers builds on the rich analog legacy found in the professional E Series, featuring high quality sound in five formats from 6 to 24 channels. A powerful tool for the musician and the sound enthusiast, entirely conceived and designed by the RCF R&D team. Housed in a sturdy metal chassis, each mixer features a full balanced audio path from input to output and the unique PRO DSP FX: 16 professional effects such as Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers and Echoes. The models F-10XR, F-12XR, F-16XR and F-24XR, include an USB audio interface, for stereo recording on computer-based DAW and 2-channel playback.

FEATURES

• Sturdy Metal Chassis
• PRO DSP FX onboard with 16 presets
• Stereo Recording and Playback via USB port
• Balanced main output audio path from input to output
• 2 single control compressors
• Mono channels provided with 3-band EQ. 2-band EQ on stereo channels.
• Robust, compact and attractive design.
• Designed and Engineered in Italy
• External Universal Power Supply

SPECIFICATIONS

ELECTRONIC SPECIFICATIONS

• Frequency Response: 20 Hz ÷ 20 kHz
• THD+N, 20dB gain, 0dBu out : <0,02% A-Weighted

INPUTS

• Channels: 10
• Mic: 4
• Gain Range: 0 dB ÷ -50 dB
• Input Noise Level: -124 dBu A-Weighted
• Mic Inputs Impedance: 14 kohm
• Low Cut: 80 Hz
• Phantom Power +48V: Yes
• Mono Line: 2
• Gain Selection: 20 dB ÷ -30 dB
• Line Input Impedance: 21 kohm
• Stereo Line: 4
• Gain Selection: 20 dB ÷ -30 dB
• Stereo Line Input Impedance (kOhm) 15 kohm
• Input connectors: XLR, Jack, RCA

OUTPUTS

• Main MIX: 1
• Control Room: Yes
• FX Send: 1
• AUX Output: 1
• Phones: 1
• Output connectors: XLR, Jack

OUTPUTS SPECIFICATIONS

• Main Out Level: 28 dBu
• Aux Out Level: 28 dBu
• Phones Out impedance (ohm): 150 ohm

COMPRESSORS

• RCF Compressors: n° 2 Single Control compressors on channels 1&2

EQ

• Input Channels EQ: 2 Shelving / 1 Generic
• Description: High:+/-15 dB @ 10 kHz Shelving Mid:+/-15 dB @ 1,250 kHz Bell Low:+/-15 dB @ 100 Hz Shelving

AUXILIARY SENDS

• FX POST: 1

INTERNAL EFFECTS

• Send Effects: 1

USB AUDIO

• USB Audio Interface: Yes
• Type: B
• Play trk: 2
• Rec trk: 2
• Supported Sample Rate: 44.1, 48.0 kHz

OTHER FEATURES

• Footswitch: Yes

ELECTRICAL SPECIFICATIONS

• Power supply: External
• Voltage requirements: 100 V - 240 V
• Power consumption (MAX): 18 W

PHYSICAL SPECIFICATIONS

• Cabinet/Case Material: Metal
• Color: Black

SIZE

• Height: 82 mm / 3.23 inches
• Width: 294 mm / 11.57 inches
• Depth: 275 mm / 10.83 inches
• Weight: 2.8 kg / 6.17 lbs
