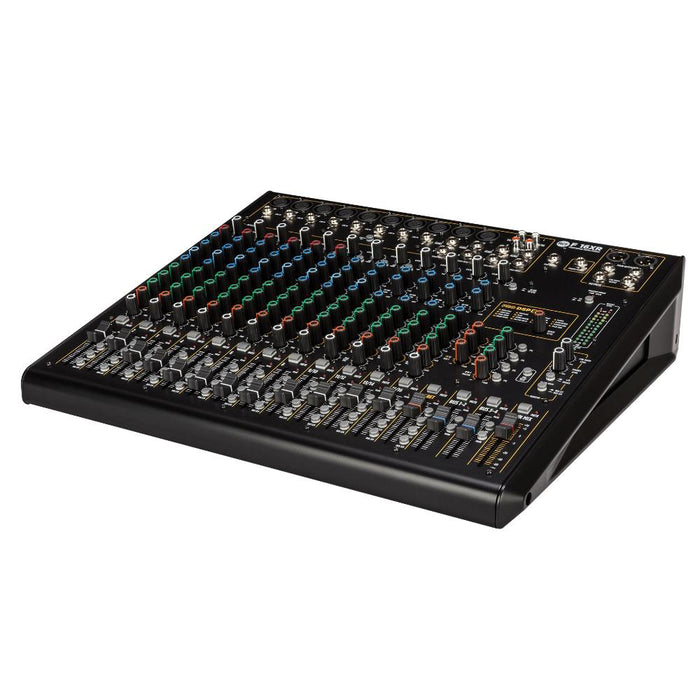

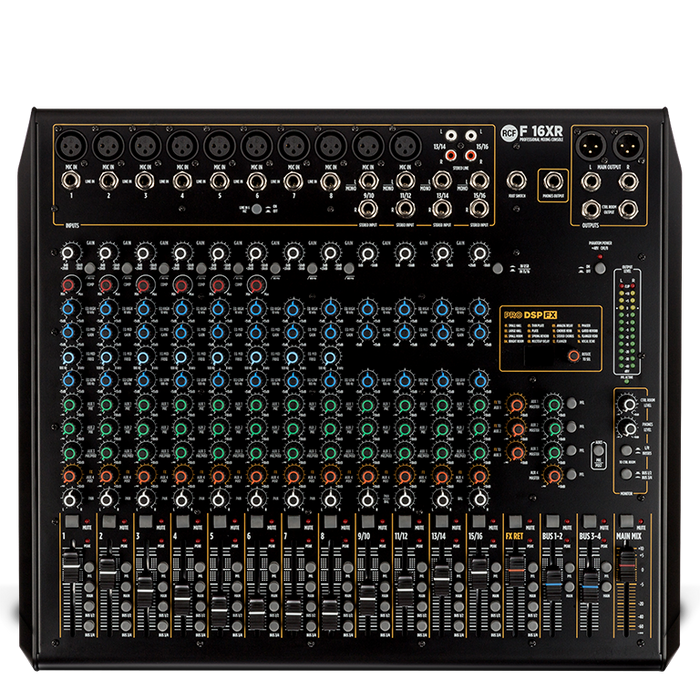

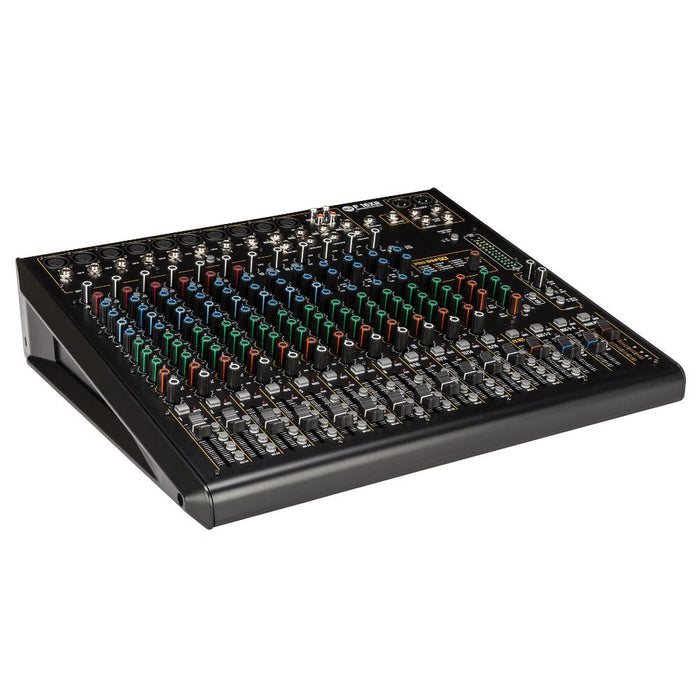

RCF F 16XR 16-Channel Mixer with Multi-FX

RCF’s next generation F Series mixers builds on the rich analog legacy found in the professional E Series, featuring high quality sound in five formats from 6 to 24 channels. A powerful tool for the musician and the sound enthusiast, entirely conceived and designed by the RCF R&D team. Housed in a sturdy metal chassis, each mixer features a full balanced audio path from input to output and the unique PRO DSP FX: 16 professional effects such as Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers and Echoes. The models F-10XR, F-12XR, F-16XR and F-24XR, include an USB audio interface, for stereo recording on computer-based DAW and 2-channel playback.

FEATURES

• 10 Mic preamp inputs, 4 mono line inputs
• 4 Stereo line inputs
• PRO DSP FX onboard with 16 presets
• Stereo recording and playback via USB port
• 6 single control compressors
• Balanced main output +28 dB (Stereo XLR + TRS)
• Two stereo output busses and 4 aux sends (2 pre, 1 pre/post, 1 post)
• 60 mm faders
• Internal universal power supply
• Designed and engineered in Italy

SPECIFICATIONS

ELECTRONIC SPECIFICATIONS

• Frequency Response: 20 Hz ÷ 20 kHz
• THD+N, 20dB gain, 0dBu out <0,02% A-Weighted

INPUTS

• Channels: 16
• Mic: 10
• Gain Range: 0 dB ÷ -50 dB
• Input Noise Level: -124 dBu A-Weighted
• Mic Inputs Impedance: 14 kohm
• Low Cut: 80 Hz
• Phantom Power +48V: Yes
• Mono Line: 8
• Gain Selection: 20 dB ÷ -30 dB
• Line Input Impedance: 21 kohm
• HI-Z Line Inputs: 1
• HI-Z Line Inputs Impedance (Mohm): 1 Mohm
• Stereo Line: 4
• Gain Selection: 20 dB ÷ -30 dB
• Stereo Line Input Impedance (kOhm) 14 kohm
• Input connectors: XLR, Jack, RCA

OUTPUTS

• Main MIX: 1
• Control Room: Yes
• FX Send: 1
• AUX Send: 3
• AUX Output: 4
• Group Out: 4
• Phones: 1
• Output connectors: XLR, Jack

OUTPUTS SPECIFICATIONS

• Main Out Level: 28 dBu
• Aux Out Level: 28 dBu
• Group Out Level: 28 dBu
• Phones Out impedance (ohm): 150 ohm
• Phones Out Level: 10 dBm

COMPRESSORS

• RCF Compressors: n°6 Single Control Compressors on Channels 1 to 6

EQ

• Input Channels EQ: 1 Semi Parametric / 2 Shelving
• Description: High: +/-15 dB @ 10 kHz Shelving Mid: +/-15 dB @ Freq. sel. from 100Hz to 8kHz - Bell Low: +/-15 dB @ 100 Hz Shelving

AUXILIARY SENDS

• AUX: 2 PRE / 1 PRE/POST
• FX POST: 1

INTERNAL EFFECTS

• Send Effects: 1

USB AUDIO

• USB Audio Interface: Yes
• Type: B
• Play trk: 2
• Rec trk: 2
• Supported Sample Rate: 44.1, 48.0 kHz

OTHER FEATURES

• Footswitch: Yes

ELECTRICAL SPECIFICATIONS

• Power supply: Internal
• Voltage requirements: 100 V - 240 V
• Power consumption (MAX): 30 W

STANDARD COMPLIANCE

• CE marking: Yes

PHYSICAL SPECIFICATIONS

• Cabinet/Case Material: Metal
• Color: Black

SIZE

• Height: 107 mm / 4.21 inches
• Width: 479 mm / 18.86 inches
• Depth: 406 mm / 15.98 inches
• Weight: 6.4 kg / 14.11 lbs
