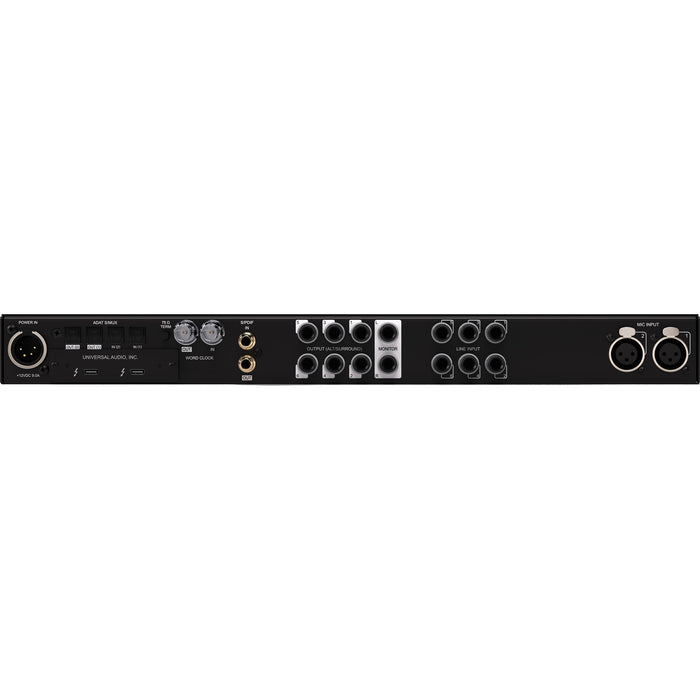

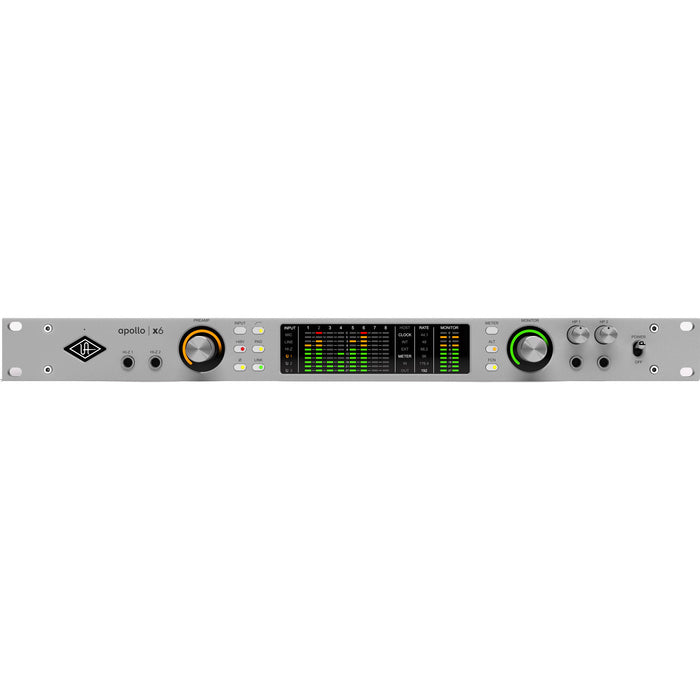

Universal Audio Apollo x6 Gen 2 and Studio+ Thunderbolt Audio Interface

Universal Audio Apollo x6 Gen 2 with Studio+ Bundle is a 16x22 rackmount Thunderbolt 3 audio interface that offers two Unison mic preamps with Auto-Gain, flagship, Gen 2 Elite-Class 24-bit / 192 kHz AD/DA conversion, surround audio up to 5.1, and HEXA Core DSP for real-time UAD plug-in processing over Thunderbolt at near-zero latency-on Mac and Windows computers. The Studio+ Bundle lets you mix and record live performances with 56 UAD plug-ins including Avalon channel strip, Manley preamp, Pultec EQ, Auto-Tune, classic LA-2A and 1176 compressors, and more. You can use Plug-In Scenes to recall settings instantly, even in the middle of a performance.

SPECIFICATIONS

• Computer Connectivity:    Thunderbolt 3

• Form Factor:    Rackmount

• Simultaneous I/O:    16 x 22

• A/D Resolution:    24-bit/192kHz

• Built In DSP/FX:    6 x UAD DSP Cores

• Number of Preamps:    2 x mic, 2 x instrument

• Phantom Power:    Yes

• Analog Inputs:    2 x XLR (mic), 2 x 1/4" (Hi-Z), 6 x 1/4" (line)

• Analog Outputs:    2 x 1/4" (monitor), 6 x 1/4" (alt/5.1 surround)

• Digital Inputs:    1 x Coax (S/PDIF), 2 x Optical Toslink (ADAT/SMUX)

• Digital Outputs:    1 x Coax (S/PDIF), 2 x Optical Toslink (ADAT/SMUX)

• Headphones:    2 x 1/4"

• Thunderbolt:    2 x USB-C (Thunderbolt 3)

• Clock I/O:    In/Out (75 ohm termination switch)

• Software:    UA Studio+ Edition Plug-in Bundle

• OS Requirements - Mac:    macOS 10.15 or later, Quad Core i7 Processor or higher

• OS Requirements - PC:    Windows 10 64-bit Anniversary update or later, Quad
• Core i7 Processor or higher, Thunderbolt 3 port required

• Rack Spaces:    1U

• Power Supply:    12V DC power supply
