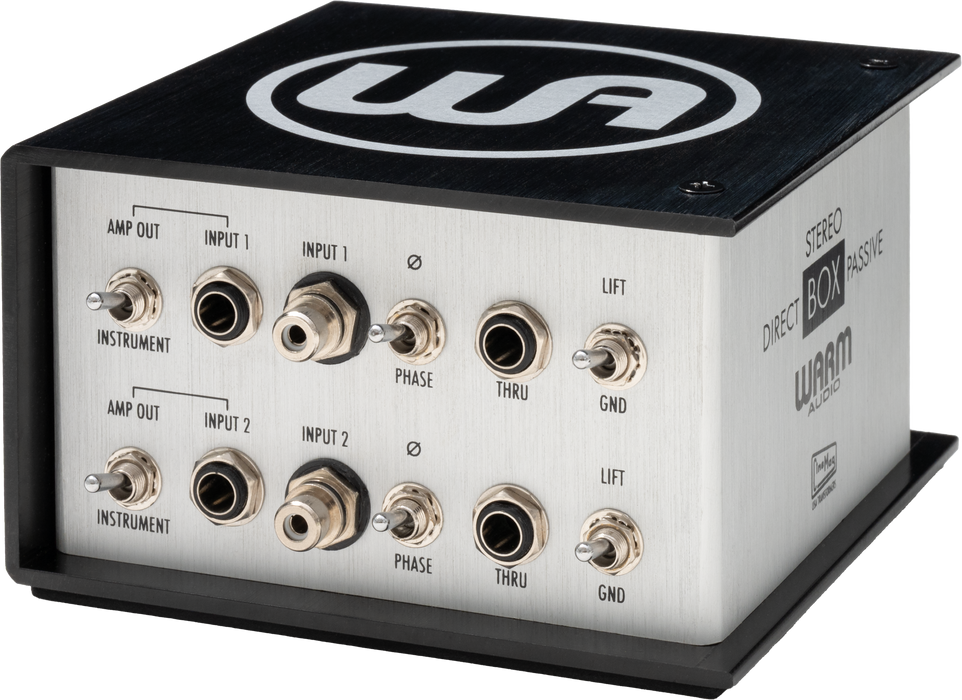

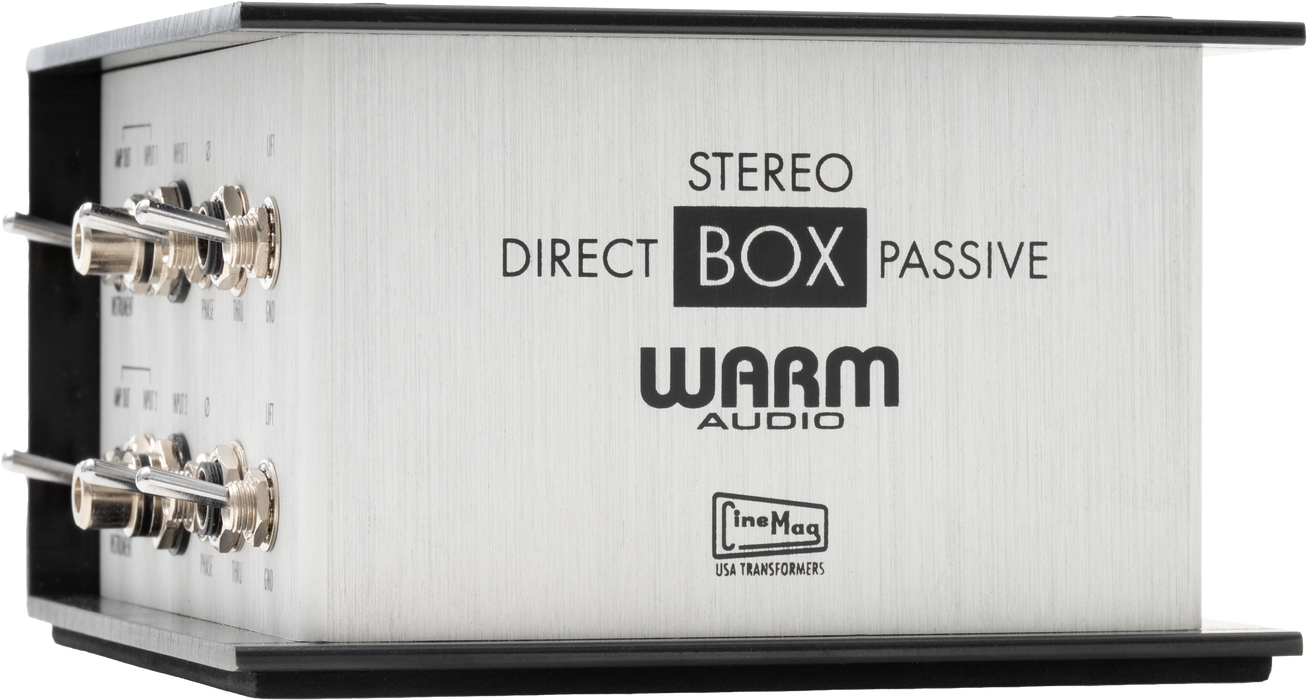

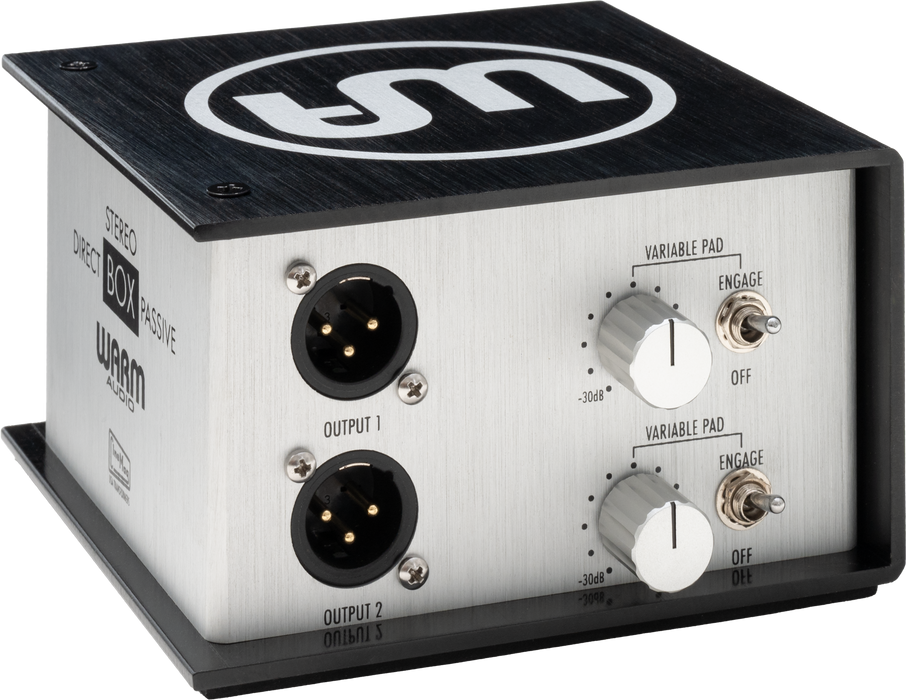

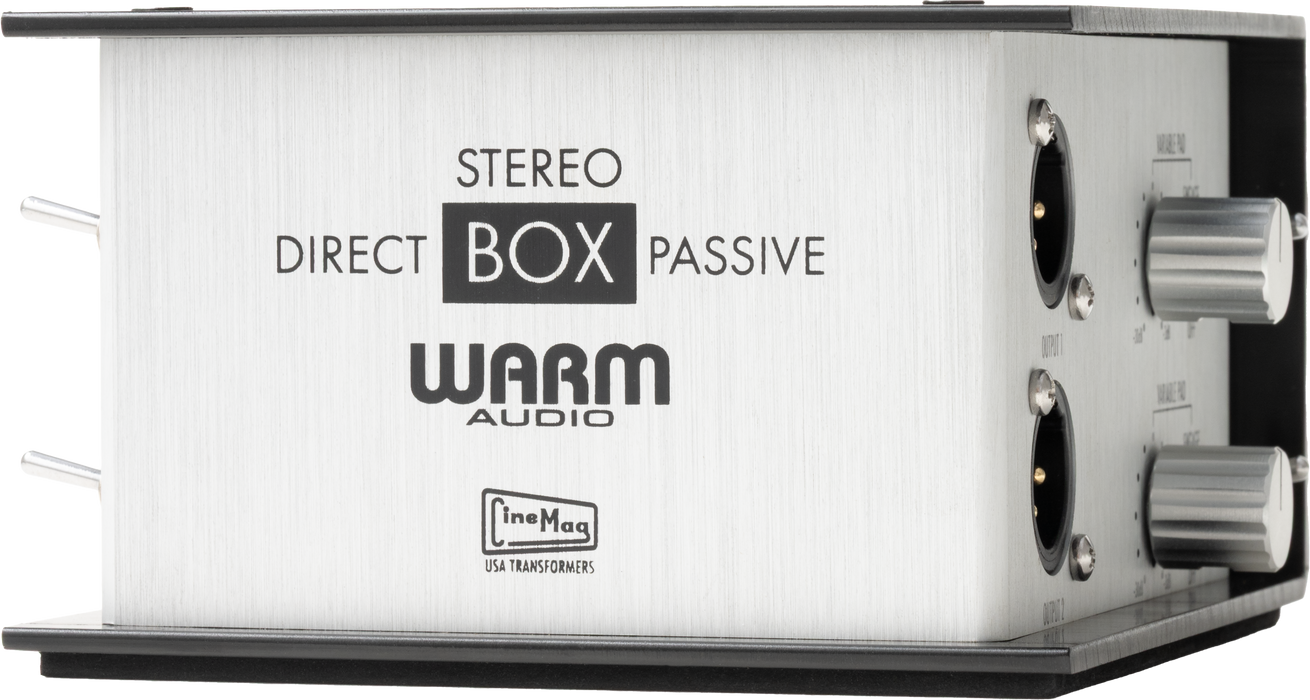

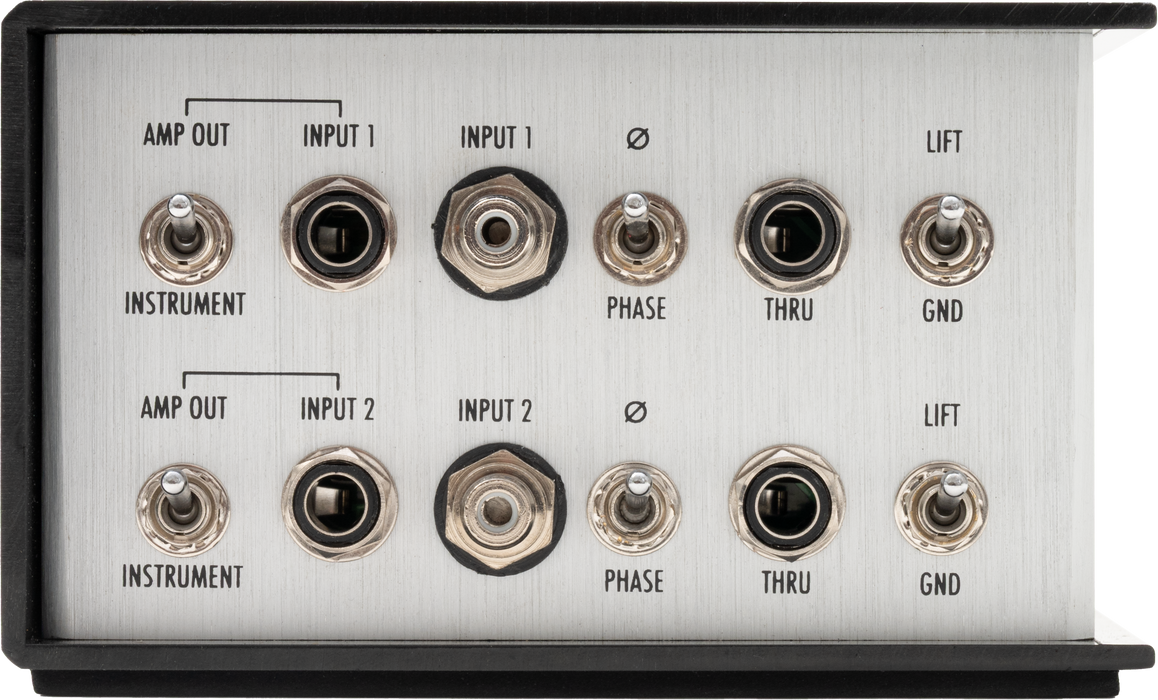

Warm Audio Transformer- Balanced 2-Channel Passive Direct Box

Warm Audio Stereo DIs include active and passive two-channel direct boxes designed for stereo instruments, including keyboards, synthesizers, guitar processors, and stereo pedalboards. Built with premium CineMag USA transformers, both models preserve the tonal character of your instrument while delivering clean balanced signals to mixers, audio interfaces, and PA systems. A negative (3 - 30dB) pad helps dial in signal volume, and a ground/lift switch helps eliminate ground-loop noise. The Active Stereo DI provides additional headroom and selectable active circuitry per-channel for lower output instruments and stereo rigs. The Passive Stereo DI offers transformer-isolated signal conversion ideal for high-output sources like drum machines, playback rigs, and modelers feeding FOH consoles or recording systems.

SPECIFICATIONS

• Tech Specs
  PRODUCT DESCRIPTION & EXTERNAL SPECS
  - Transformer-Balanced Stereo Direct Box (Active or Passive)
  - Converts Instruments To Mic-Level Signals Without Signal Degradation
  - Ideal Solution For Plugging Your Instrument Direct Into Any Mic Pre
  Rugged Aluminum Construction

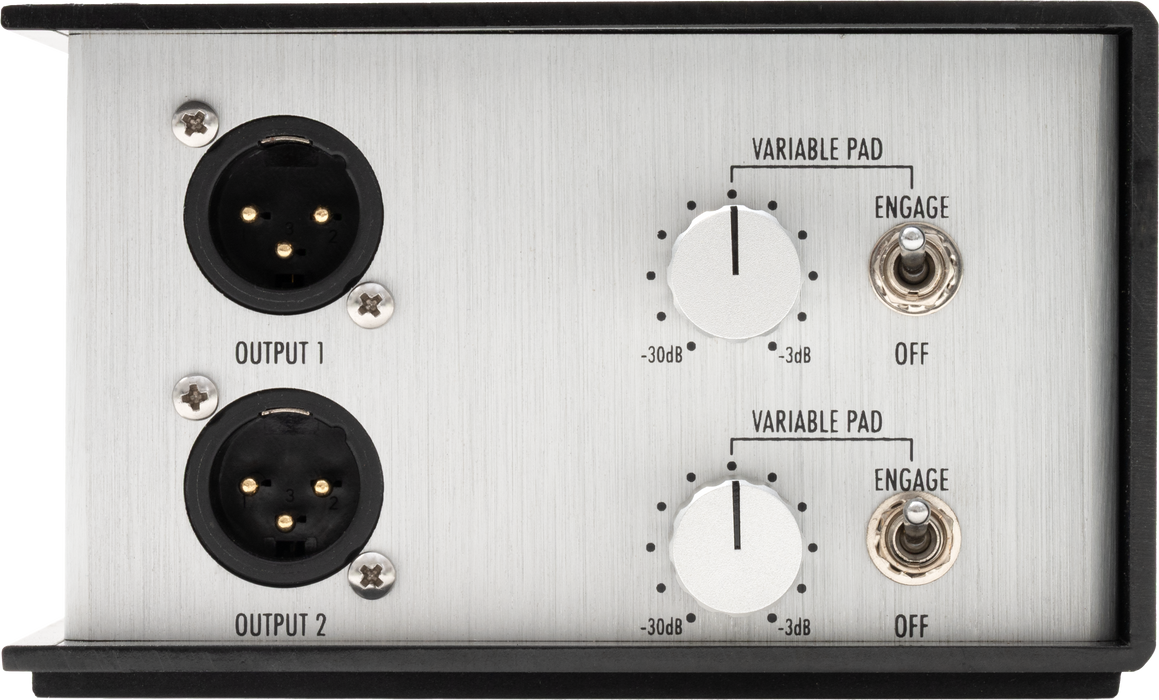

  - Pad: Variable From -3dB To -30dB
  - Measurement: 5" X 5-1/2" X 2-7/8"
  - Active Only: Selectable active/passive switch to boost weaker signals


• COMPONENTS & INTERNAL SPECS
  - Custom-Wound CineMag USA Output Transformer
  - Top-Quality Class-A Components With Gold-Plated Traces On Circuit Board
  - Active Only: Power: 48v Phantom. Can Also Be Used Passively


• PERFORMANCE SPECS
  - Balanced Output: 600 Ohms, Mic Level
  - Input Impedance: 1 Meg Ohms
  - Active THD: .01% From 20 Hz To 50 Hz. Less than .003% From 50 Hz To 20 kHz
  - Passive THD: .01% From 20Hz To 50 Hz. Less Than .004% From 50 Hz To 20 kHz
  - Active/Passive Frequency Response: 10 Hz To 100kHz +/- 0.5db


• Popular Uses
  - Connect Stereo Keys & Synths > Balanced XLR Outputs To Mixers Or Audio Interfaces
  - Stereo Guitar Modelers & Amp Simulators > FOH Mixers Or Recording Interfaces
  - Stereo Pedalboards & Effects Rigs > Clean Balanced Signal To PA Systems
  - Electronic Drum Modules & Samplers > Noise-Free Connection To Stage Boxes Or Consoles
  - Laptop Audio Interfaces & Playback Rigs > Balanced Feed To Live Sound Systems
