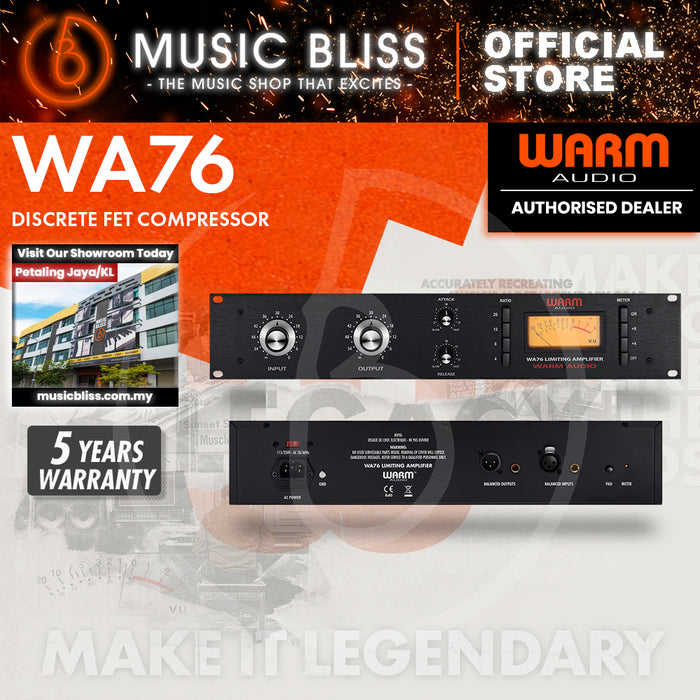

Warm Audio WA76 Limiting Amplifier (WA-76)

Warm Audio's WA76 set its target high: the most iconic solid-state limiting amplifier in history. How does Warm do it? Through economies of scale, mostly. They don't cut corners on components (the WA76 employs genuine US-made Cinemag transformers), but they do order parts and build in quantity, which keeps costs down. Like the original classic unit, the WA76 gives you a completely discrete signal path and the same arrangement of controls. And yes, it replicates the original's explosive performance when all the ratio buttons are pressed in. Elevate your studio to the next level with the Warm Audio WA76.

FEATURES

• Class A line-level output amplifier
• Inspired by the sought-after D revision of the iconic solid-state limiting amplifier
• Completely discrete signal path
• Utilizes US-made Cinemag input and output transformers
• Supports the famous all-buttons-in ratio setting
• Ultra-fast attack time; 55db of gain
• Input impedance is 600 ohms, bridges-T control (floating)
• 20Hz–20kHz (±1dB) frequency response
• XLR and TRS inputs and outputs
• Less than 0.4% total harmonic distortion from 50Hz–20kHz with limiting
• Signal to noise ratio is greater than 74dB at +25dBm
• Equivalent input noise (EIN) is -104.1dBm
• Attack time is 20 microseconds to 800 microseconds
• Release time is 50 milliseconds to 1 second
• Meter provides dB gain reduction and dB output
• 2U, 19" rackmount chassis

SPECIFICATIONS

• Number of Channels:1
• Controls:Input, Output, Attack, Release, Ratio (Buttons)
• Ratio:4:1, 8:1, 12:1, 20:1
• Frequency Response:20Hz-20kHz
• Inputs:1 x XLR, 1 x 1/4" TRS
• Outputs:1 x XLR, 1 x 1/4" TRS
• Rack Spaces:2U
• Power Source:Standard IEC AC cable
• Height:3.5"
• Width:19"
