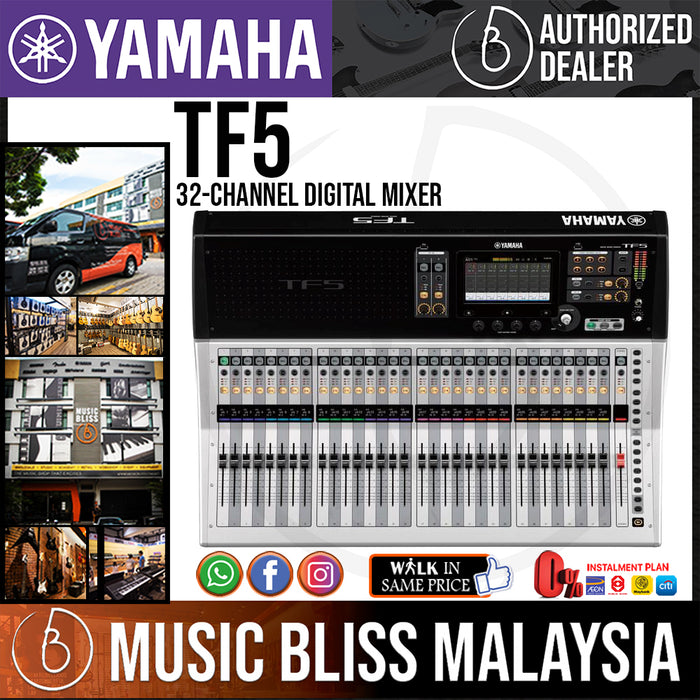

Yamaha TF5 32-Channel Digital Mixer

Yamaha TF5 32-Channel Digital Mixer

32-input TF Series Digital Mixer with 48 Mixing Channels, 33 Motorized Faders, 20 Aux Buses, 8 DCA Groups with Roll-out, 1-knob Compression/EQ, and TouchFlow Operation

Yamaha TF5 32-Channel Digital Mixer

Availability: Call For Status Check
We’re still waiting for an expected delivery date on this product. Please contact us for the latest information.
Want alternative recommendations? Let us know!

Estimated Shipping Fees - calculating...

Product Description

Yamaha TF5 32-Channel Digital Mixer (TF5)

Yamaha TF5 32-Channel Digital Mixer (TF-5)

The Yamaha TF5 32-input digital console fluid TouchFlow Operation will completely unleash your creativityallowing you to respond to the music onstage with effortless speed and freedom. In other wordsthe TF5 ensures that nothing restricts your inspiration. Whether youe an experienced engineer or a complete novicethe TF5 level of refinement is nothing short of astonishingmaking it remarkably easy to achieve a great mix. And after listening to the TF5 great-sounding D-Pre mic preampswe think youl agree that this comfortablesmooth-operating compact digital mixer doesn skimp on sound quality.
  • 33 motor faders (32 channels + 1 master)
  • 48 input mixing channels (40 mono + 2 stereo + 2 return)
  • 20 Aux (8 mono + 6 stereo) + Stereo + Sub buses
  • 8 DCA groups with Roll-out
  • 32 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs
  • 16 analog XLR outputs
  • 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
  • 1 expansion slot for NY64-D audio interface card

Fader Configuration 32 + 1 (Master)
Mixing Capacity Input Channels 48 (40 mono + 2 stereo + 2 return)
Aux Buses 20 (8 mono + 6 stereo)
Stereo Buses 1
Sub Buses 1
Input channel functions 8 DCA Groups
I/O Inputs 32 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)
Outputs 16 (XLR)
Expansion slots 1
On-board processors DSP 8 Effects + 10 GEQ
USB 34x34 USB Audio Interface2-track recording via USB Storage Device
General specifications
Sampling frequency rate Internal 48 kHz
Signal delay Less than 2.6 msINPUT to OMNI OUTFs=48 kHz
Fader 100 mm motorizedResolution = 10-bit+10 dB to -138 dB-dB all faders
Total harmonic distortion Less than 0.05% 20 Hz-20 kHz @+4 dBu into 600 INPUT to OMNI OUTInput Gain=Min. (Measured with a -18 dB/octave filter@80 kHz)
Frequency response +0.5-1.5 dB 20 Hz-20 kHzrefer to +4 dBu output @1kHzINPUT to OMNI OUT
Dynamic range 110 dB typ.DA Converter107 dB typ.INPUT to OMNI OUTInput Gain=Min.
Hum & noise level Equivalent input noise -128 dBu typ.Input Gain=Max. (Measured with an A-Weight filter)
Residual output noise -85 dBuST master off (Measured with an A-Weight filter)
Crosstalk -100 dB (Measured with a -30 dB/octave filter@22 kHz)adjacent INPUT/OMNI OUT channelsInput Gain=Min.
Power requirements 100-240 V 50/60 Hz
Power consumption 120 W
Dimensions W 866 mm (34.1in)
H 225 mm (8.9in)
D 599 mm (23.6in)
Net weight 20.0 kg (44.1lb)
Options Expansion CardFoot Switch (FC5)
Others Operating temperature range: 0-40 °CStorage temperature range: -20-60 °C

Dimension Packaging Weight : 33.6 kg
