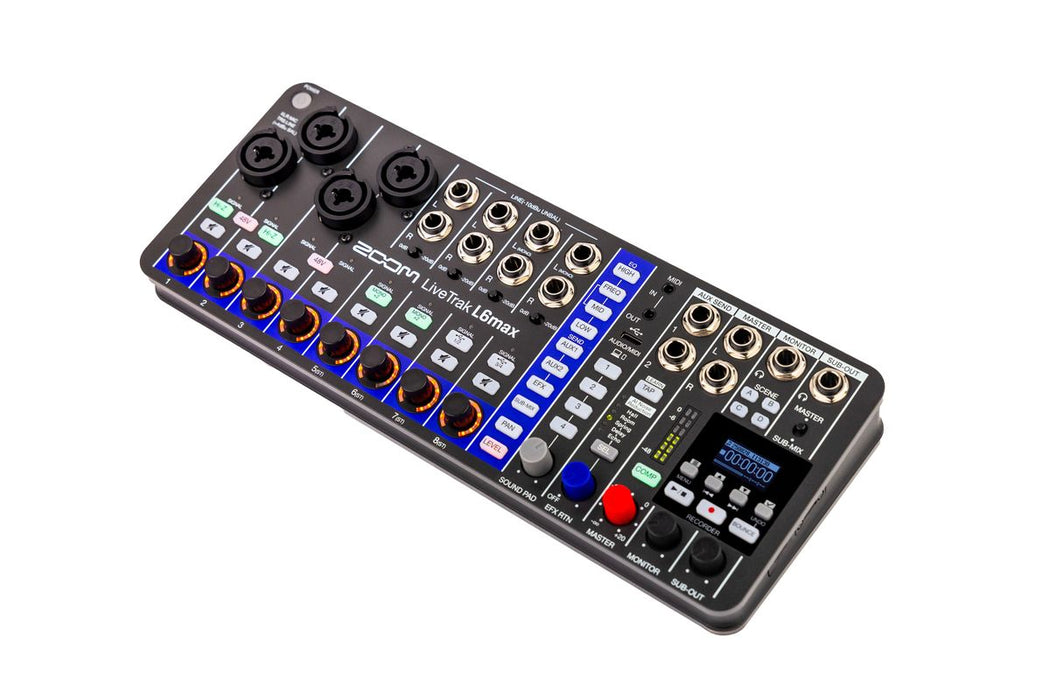

Zoom LiveTrak L6max 12-channel Digital Mixer

Tailor-made for musicians and podcasters, the Zoom LiveTrak L6max gives you the features you'd expect from a full-size mixer, along with multitrack recording, battery power, and advanced DSP. Brandishing four combo inputs and eight line-level inputs with flexible gain settings, this 12-channel digital mixer offers enough I/O to accommodate everything from a solo performer to a small band, as well as flexible routing with auxiliary sends, scene memory, and MIDI I/O for added utility. Additionally, you get two headphone outputs with a customizable monitor mix, ensuring you hear exactly what you want to hear. The LiveTrak L6max's 14-track recorder effortlessly captures 12 individual tracks and a stereo mix directly to an SD card. Moreover, you get dedicated track bouncing to free up additional channels for overdubs. You'll love what this miniature mixer's onboard DSP does for your mixes, providing you with instant access to AI-powered noise reduction, a 3-band EQ on every channel, a master bus compressor, and ear-grabbing reverb, delay, and echo effects. Beyond that, the LiveTrak L6max's four combo inputs flaunt 32-bit-float conversion, enabling you to tackle extreme dynamics with zero clipping. It also features a 12-in/4-out USB audio interface for streamlined recording to your computer or mobile device. Finally, a vivid OLED screen helps you create projects and adjust settings with ease. Compact yet uncompromising, the LiveTrak L6max is more than a portable digital mixer; it's your all-in-one command center for capturing, mixing, and producing with professional polish.

VIDEO

FEATURES

• A compact 12-ch. digital mixer with the features you'd expect from a full-size mixer
• 4 combo inputs, including 2 with hi-Z, and 8 line-level inputs offer ample I/O
• Channels 5–8 include a -20dB Pad switch to accommodate extra-loud sources
• Flexible routing with aux sends for FX loops and monitor feeds
• 2 headphone outputs with a customizable monitor mix
• 14-track recorder effortlessly captures 12 individual tracks and a stereo mix directly to an SD card
• Dedicated track bouncing frees up additional channels for overdubs
• 32-bit float A/D on channels 1–4 safeguards against clipping across extreme dynamics
• AI-powered noise reduction intelligently eliminates hum, hiss, and background chatter
• Includes a 3-band EQ on every channel, a master bus compressor, and ear-grabbing reverb, delay, and echo FX
• 12-in/4-out USB audio interface provides streamlined recording to your computer or mobile device
• Simultaneous recording to your DAW and an SD card
• Performs double duty as a control surface for your favorite DAW
• MIDI I/O and USB MIDI enable you to integrate external synths, grooveboxes, and other MIDI-equipped hardware into your setup
• Sound Pad buttons can trigger jingles, sound FX, and samples, or synchronize them to a MIDI clock
• Zoom's free L6 Editor app for macOS and Windows allows customization of pads, FX, and MIDI assignments
• Vivid OLED screen helps you create projects and adjust settings with ease
• Powered using AA batteries, USB bus power, or a mobile battery pack
• Mounts to a standard Eurorack case using the optional ERL-6 rack ears and power supply (not included)

SPECIFICATIONS

• Type:Digital Mixer
• Channels:12
• Computer Connectivity:USB (12 x 4)
• A/D Resolution:32-bit/48kHz
• Faders:13 x Rotary Encoders
• Inputs - Mic Preamps:4 x XLR-1/4" Combo
• Phantom Power:Yes (1-2, 3-4)
• Inputs - Line:8 x 1/4" TRS
• Outputs - Main:2 x 1/4"
• Outputs - Other:1 x Monitor, 1 x Sub-out
• Send/Return I/O:2 x 1/4"
• Headphones:2 x 1/4"
• USB:2 x USB-C
• MIDI I/O:In/Out
• EQ Bands:3-band
• Signal Processing:Master Compressor
• Effects:Noise Reduction, Reverb, Delay
• DAW Control:Yes
• Storage:microSD
• Software:L6 Editor App
• Power Source:USB Bus powered, 4 x AA batteries
