A high-gain amp, a low-tuned guitar and an overdrive pedal can produce a tight modern metal tone. Cut some bass before the amp, add a little midrange, keep the overdrive gain low and push the output level. It is a proven formula because it makes palm-muted notes controlled, percussive and easy to fit around fast drums.

That formula can also become too clean, too familiar and too polite. For heavier styles influenced by bands such as Knocked Loose, END and Converge, the goal is not always perfect studio precision. Sometimes the breakdown needs to sound as though the guitar cabinet is tearing open. This guide explains three ways to make your chugs more extreme: stacking fuzz into an overdriven high-gain sound, using EQ to exaggerate the right frequencies, and placing compression before distortion to make each pick attack hit the gain stage harder.

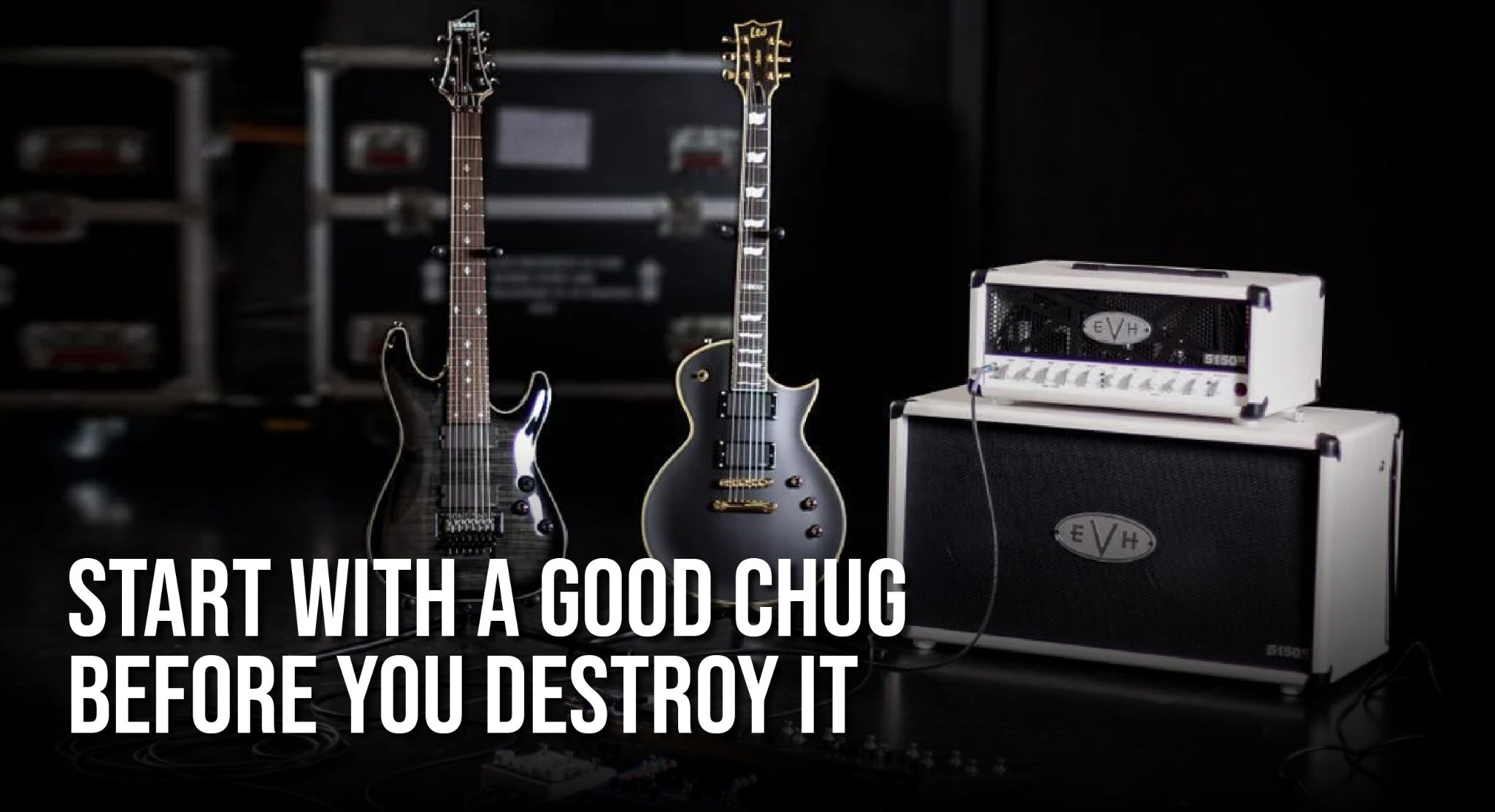

An evil chug still needs a solid foundation. Before adding more pedals, make sure the basic guitar tone already responds properly to your picking.

Start with:

• The bridge pickup.
• Fresh strings with suitable tension for your tuning.
• Moderate rather than maximum amplifier gain.
• Controlled bass.
• Enough midrange for the guitar to remain audible.
• Tight palm muting close to the bridge.
• Consistent picking strength.

The important principle is this: create the definition first, then add destruction around it.

If the original tone is already excessively bass-heavy, fizzy or undefined, adding fuzz will usually make those problems worse. The extra pedal should create a second texture on top of the chug, not compensate for a weak core sound.

A useful basic signal chain is:

Guitar → compressor or fuzz → overdrive → high-gain amplifier or preamp

An EQ can be placed at several points depending on what you want it to control:

Guitar → EQ → fuzz/overdrive → amplifier

or:

Guitar → fuzz/overdrive → amplifier → effects-loop EQ

The first position changes how the distortion reacts. The second reshapes the sound after most of the distortion has already been created.

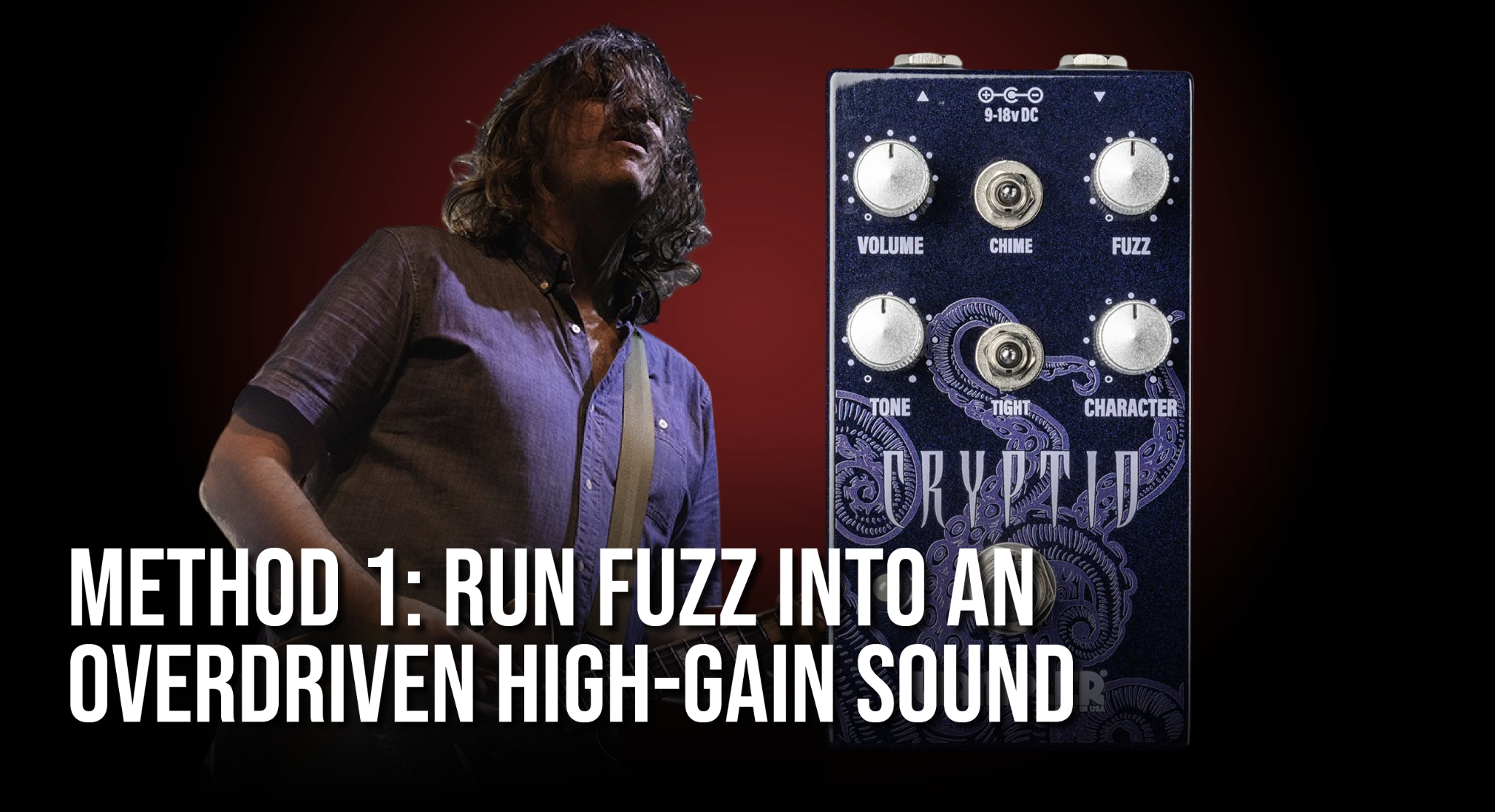

The usual advice for heavy rhythm guitar is to avoid fuzz because it can soften the attack and produce too much low-frequency movement. That advice is useful when the goal is a polished, tightly edited modern metal sound.

It is less useful when you want the chug to sound unstable, violent and oversized.

Running fuzz into an already overdriven amplifier or preamp creates multiple stages of clipping. The fuzz compresses and reshapes the guitar signal first. The overdrive and amplifier then distort that altered signal again. This can produce denser harmonics, an exaggerated low-mid grind and a ragged edge that a conventional overdrive boost cannot create by itself.

The basic chain is:

Guitar → fuzz → overdrive → distorted amp or preamp

You can also try:

Guitar → fuzz → distorted amp

The overdrive is optional. Keeping it in the chain can help remove some loose bass and restore attack after the fuzz.

Do Not Set the Fuzz Like a Traditional Fuzz Tone

For this application, the fuzz does not need to sound beautiful by itself. You are using it as a texture generator.

Begin with:

• Fuzz or sustain: low to moderate
• Output level: high enough to push the next gain stage
• Tone: adjusted for upper-mid grind rather than maximum bass
• Blend, if available: mostly dry or approximately 25–50% fuzz
• Amplifier gain: slightly lower than your normal setting
• Overdrive gain: very low
• Overdrive output: high
• Overdrive tone: adjusted to recover pick definition

Too much fuzz sustain can flatten the pick attack and turn individual chugs into one continuous block of noise. Lower fuzz settings often work better because the high-gain amplifier will add plenty of saturation afterward.

The output control may be more important than the fuzz control. A louder fuzz signal drives the following overdrive or preamp harder, producing additional aggression without necessarily covering the entire note in fuzz.

Use the Fuzz as a Switchable Destroy Layer

The most practical way to use this sound is to keep your normal rhythm tone available and activate the fuzz only for selected sections.

For example:

• Verse: overdrive into high-gain amp
• Chorus: high-gain amp with wider ambience or modulation
• Breakdown: fuzz, overdrive and high-gain amp
• Final impact: fuzz plus octave or gated texture

This contrast makes the fuzz sound larger. If the entire song uses the most extreme tone, the listener quickly becomes accustomed to it. Saving it for the heaviest riff gives the section a clear change in scale and texture.

The Way Huge Swollen Pickle and specialised God City Instruments designs have become useful reference points for this kind of sound because they can provide far more control, abrasion and low-frequency weight than a basic vintage fuzz setup.

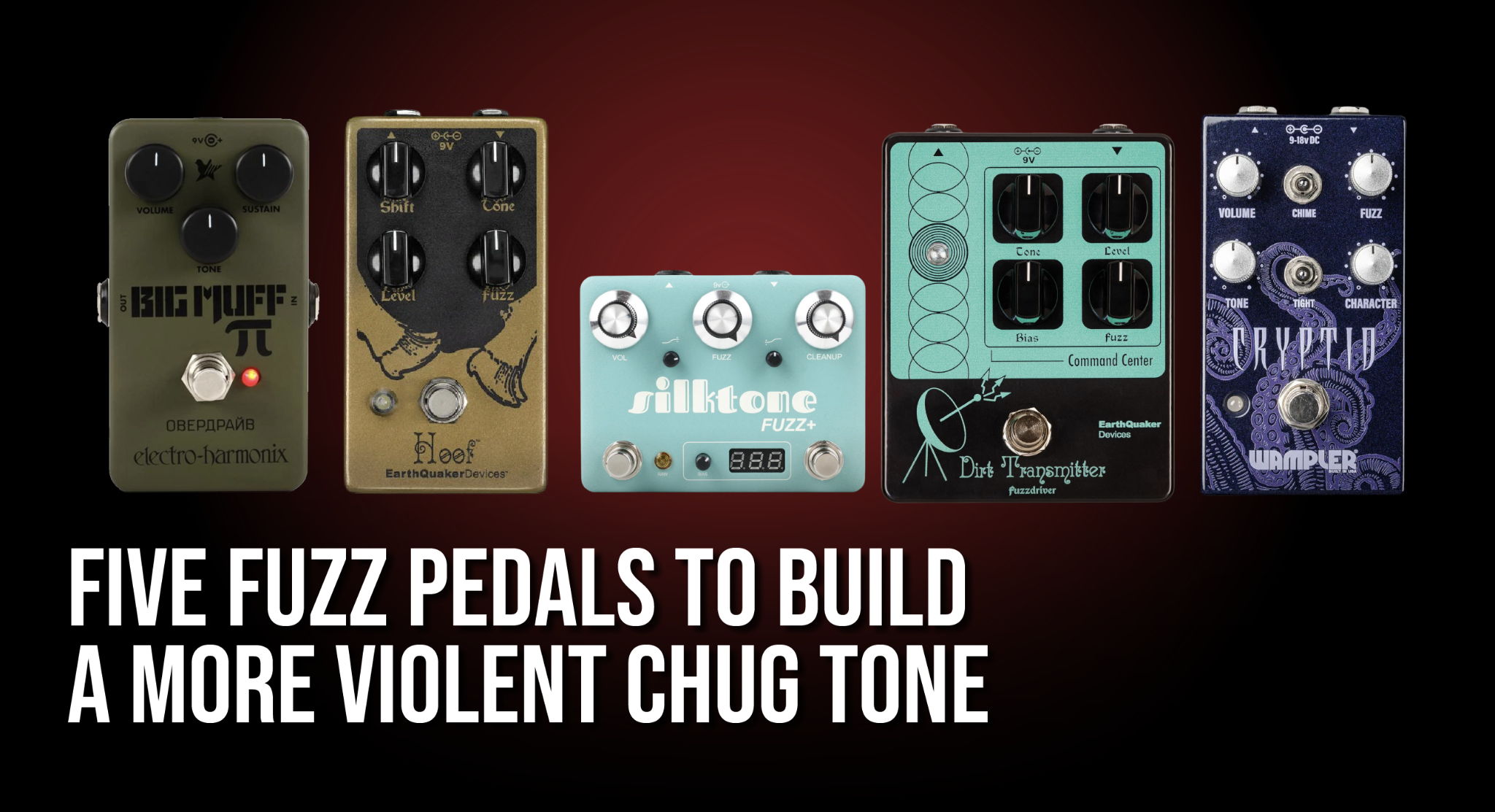

The following Music Bliss options are not direct replacements or circuit copies. However, they offer some of the closest functional qualities from the supplied selection: adjustable low-end weight, aggressive clipping, octave textures, bias control or enough tone shaping to work in front of a high-gain rig.

1. EarthQuaker Devices Hoof V2 Germanium/Silicon Fuzz

The EarthQuaker Devices Hoof V2 is one of the most adaptable choices for this application. Its hybrid germanium and silicon design is derived from the broader Muff-style fuzz family, but its Shift control gives you more authority over the midrange than a traditional fixed-scoop fuzz.

That midrange control matters when stacking into a distorted amp. A heavily scooped fuzz may sound enormous in isolation yet disappear once bass, drums and another guitar enter the arrangement. Moving the Hoof’s midrange emphasis can help the chug retain its grinding centre while the fuzz adds width and saturation.

Try this starting point:

• Fuzz: 9–11 o’clock
• Tone: 11 o’clock–1 o’clock
• Shift: begin at noon and adjust with the full band
• Level: above unity gain

For a Swollen Pickle-style role, use the Hoof as a broad, heavy distortion layer rather than a fully saturated lead fuzz.

2. Electro-Harmonix Green Russian Big Muff Pi

The Electro-Harmonix Green Russian Big Muff Pi is a strong option when you want substantial low-mid weight and a thick, blunt attack. It can make single-note chugs and slower breakdowns feel physically larger, particularly with low tunings.

That same low end must be controlled carefully. Into a high-gain amplifier, excessive sustain and bass can remove the space between palm-muted notes. Keep the sustain lower than you would for doom or sustaining lead tones, then use an overdrive after the fuzz to trim some of the loose bottom end.

Try:

• Sustain: 9–10 o’clock
• Tone: approximately noon
• Volume: 1–2 o’clock
• Overdrive after it: gain nearly off, output high

The Green Russian is especially suitable for slower, stomping riffs where mass and low-mid pressure matter more than clinical precision.

3. Silktone Fuzz+

The Silktone Fuzz+ is a useful choice for players who want the ability to move between open, vintage-style fuzz and more unstable textures. Its additional controls make it easier to alter the behaviour of the fuzz rather than accepting one fixed response.

For heavy chugging, bias-style control can be particularly valuable. Changing the operating point of a fuzz circuit can make the signal feel tighter, rougher, more gated or partially starved. That can shorten the decay between notes and create the impression that the riff is choking or breaking apart.

Use lower fuzz settings first, then adjust the bias or character controls until palm-muted notes stop cleanly without becoming too thin. This can produce a more serrated response than a conventional smooth Muff tone.

4. EarthQuaker Devices Dirt Transmitter Legacy Reissue

The EarthQuaker Devices Dirt Transmitter Legacy Reissue is another strong option when you want the fuzz to become unstable rather than simply thicker. Its bias control can move the pedal from a fuller fuzz response towards gated, spluttering textures.

That behaviour works well for short breakdown accents, dissonant chords and stop-start riffs. A gated fuzz can exaggerate silence because the note decays abruptly instead of trailing into ordinary amplifier hiss and sustain.

Try:

• Fuzz: below noon
• Tone: adjusted slightly brighter than expected
• Bias: lower gradually until the decay begins to tear apart
• Level: set to hit the overdrive or amplifier firmly

Do not assume the most heavily starved setting will be the heaviest. Extreme bias settings may remove too much body. The useful point is often just before the sound completely collapses.

5. Wampler Cryptid Fuzz

The Wampler Cryptid Fuzz is a versatile choice when you want to experiment with several fuzz personalities rather than committing to one narrow sound. That flexibility makes it suitable for finding the line between a recognisable guitar chug and a deliberately corrupted one.

For this application, favour settings that preserve enough initial attack to drive the following distortion stage. Then increase the fuzz character until the note develops the desired grind, sputter or harmonic edge.

The Cryptid may be especially useful for players who need several kinds of destruction across a set: a broad sustaining fuzz for one song, a tighter aggressive sound for another and a more unstable texture for breakdown accents.

What About Octave Fuzz?

Pedals such as the Electro-Harmonix Lizard King Octave Fuzz and EarthQuaker Devices Fuzz Master General Legacy Reissue can take the effect further by introducing octave-related harmonics.

An octave fuzz does not simply make the guitar lower or heavier. It adds another pitch component and can produce clangorous, synthesised or almost ring-modulated textures. On single-note riffs, that can sound extremely hostile. On complex chords, it may become chaotic very quickly.

Use octave fuzz selectively:

• Single-note breakdown lines
• High-register dissonant intervals
• Pick scrapes and feedback transitions
• One-beat accents
• Noise sections between riffs

For ordinary low-string chugging, keep the octave effect restrained. Too much can make pitch definition difficult to hear.

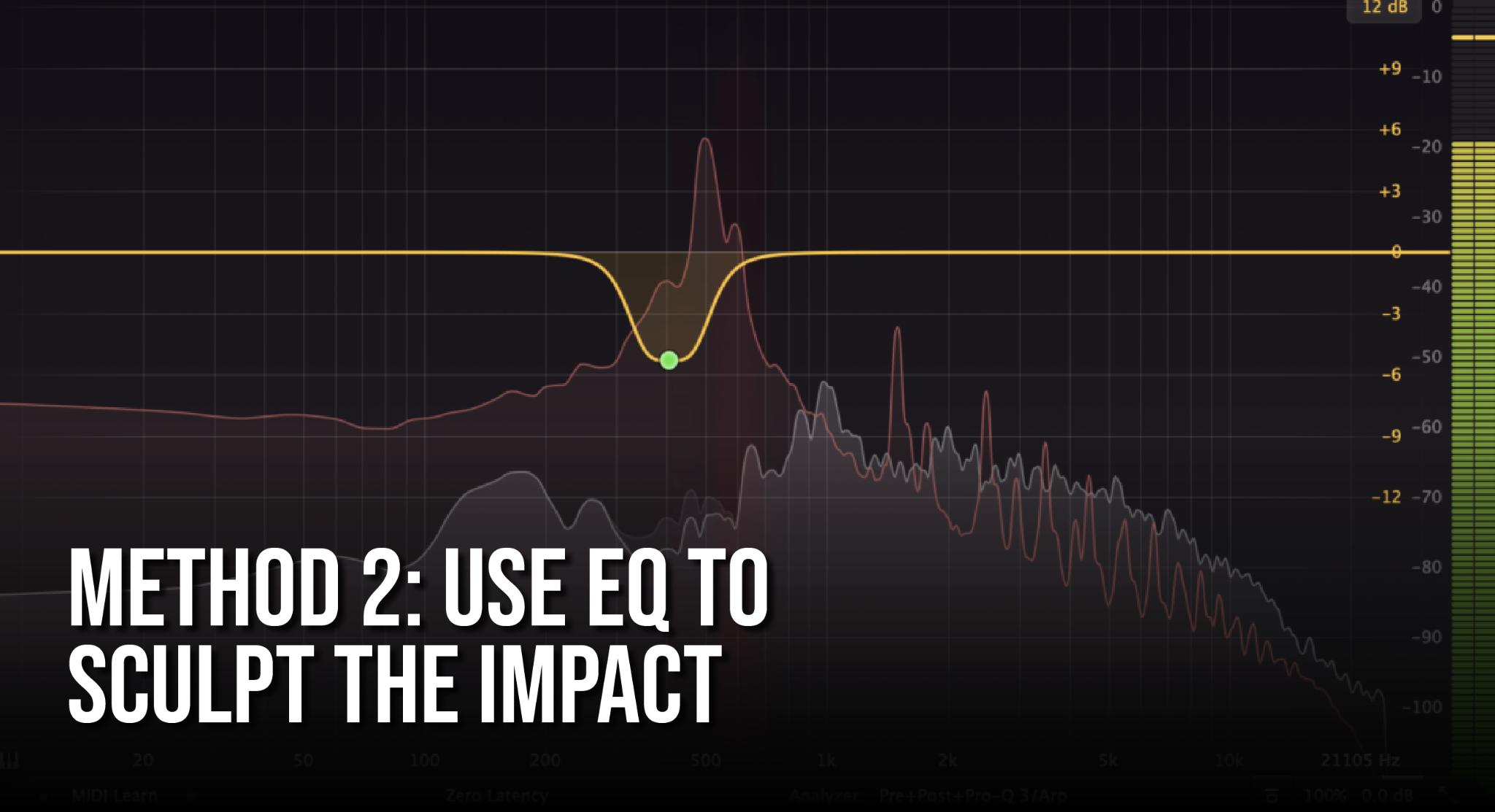

An equaliser does not create distortion by itself, but it controls which frequencies reach the distortion circuit and which frequencies remain afterward. That makes it one of the most powerful tools for changing the feel of a chug.

The location of the EQ determines what it does.

EQ Before Distortion Changes the Distortion Behaviour

Place the EQ before your overdrive, distortion or amplifier input when you want certain frequencies to distort more or less.

Boosting a frequency before distortion does two things:

1. It makes that frequency louder.
2. It causes the distortion circuit to react more strongly to it.

This means a pre-distortion EQ is not merely changing the final frequency balance. It is changing how the gain stage clips.

For a tighter but still vicious chug, try:

• Cut some 100Hz to reduce loose sub-bass.
• Reduce 200Hz slightly if the palm mutes sound bloated.
• Boost 400Hz or 800Hz for a barkier, more physical midrange.
• Add a small amount around 1.6kHz for pick definition.
• Avoid excessive high-frequency boost, which can create harsh fizz.

A useful starting curve on the BOSS GE-7 7-band Equalizer would be:

• 100Hz: -4dB
• 200Hz: -2dB
• 400Hz: +2dB
• 800Hz: +3dB
• 1.6kHz: +2dB
• 3.2kHz: 0dB
• 6.4kHz: -1dB
• Level: +2dB

Treat these values as a starting point, not a universal preset. The correct curve depends on your guitar, pickup, tuning, amplifier and cabinet.

EQ After Distortion Changes the Finished Voice

An EQ in the amplifier’s effects loop sits after the preamp distortion in many conventional amplifier designs. Here, it shapes the already-distorted tone more directly.

This position is useful for:

• Removing muddy low mids.
• Adding a narrow midrange snarl.
• Reducing harsh high frequencies.
• Matching the volume of a special breakdown tone.
• Creating a dramatic second EQ curve for selected riffs.

Try a post-distortion curve that cuts a little at 200–400Hz, boosts 800Hz–1.6kHz and gently reduces the highest available band. This can make a broad fuzz stack feel more focused without removing all of its dirt.

BOSS GE-7: Simple and Immediate

The BOSS GE-7 7-band Equalizer provides seven fixed bands from 100Hz to 6.4kHz, with up to 15dB of boost or cut per band. Its sliders make it easy to understand what each adjustment is doing.

It is a practical option for players who want one physical curve that can be changed quickly during rehearsal. It can also provide a level boost, allowing it to push the next gain stage harder.

Source Audio EQ2: Multiple Evil Personalities

The Source Audio EQ2 Programmable Equalizer is better suited to players who need several stored sounds. It combines graphic and parametric EQ operation with extensive preset capability and MIDI control.

For example, you could store:

• A normal tight rhythm curve.
• A low-mid-heavy breakdown curve.
• A narrow, nasal Converge-style dissonant tone.
• A post-fuzz correction curve.
• A lead or feedback preset.

This makes the EQ2 particularly useful in a MIDI-controlled rig or when one guitarist needs to cover several tonal roles in the same set.

Orange Two Stroke: Push and Shape at the Same Time

The Orange Two Stroke Boost EQ Pedal combines up to 12dB of clean boost with two active parametric EQ bands. Unlike a fixed-band graphic EQ, a parametric design allows you to choose the centre frequency you want to affect.

That makes it useful for finding the exact frequency that makes your rig sound ugly in the right way.

Sweep the frequency while chugging until you hear the cabinet produce a pronounced bark, grind or nasal pressure. Then adjust the amount of boost. Small boosts are often enough. Large narrow boosts can become resonant and unpleasant, which may be useful for a noise section but tiring across an entire song.

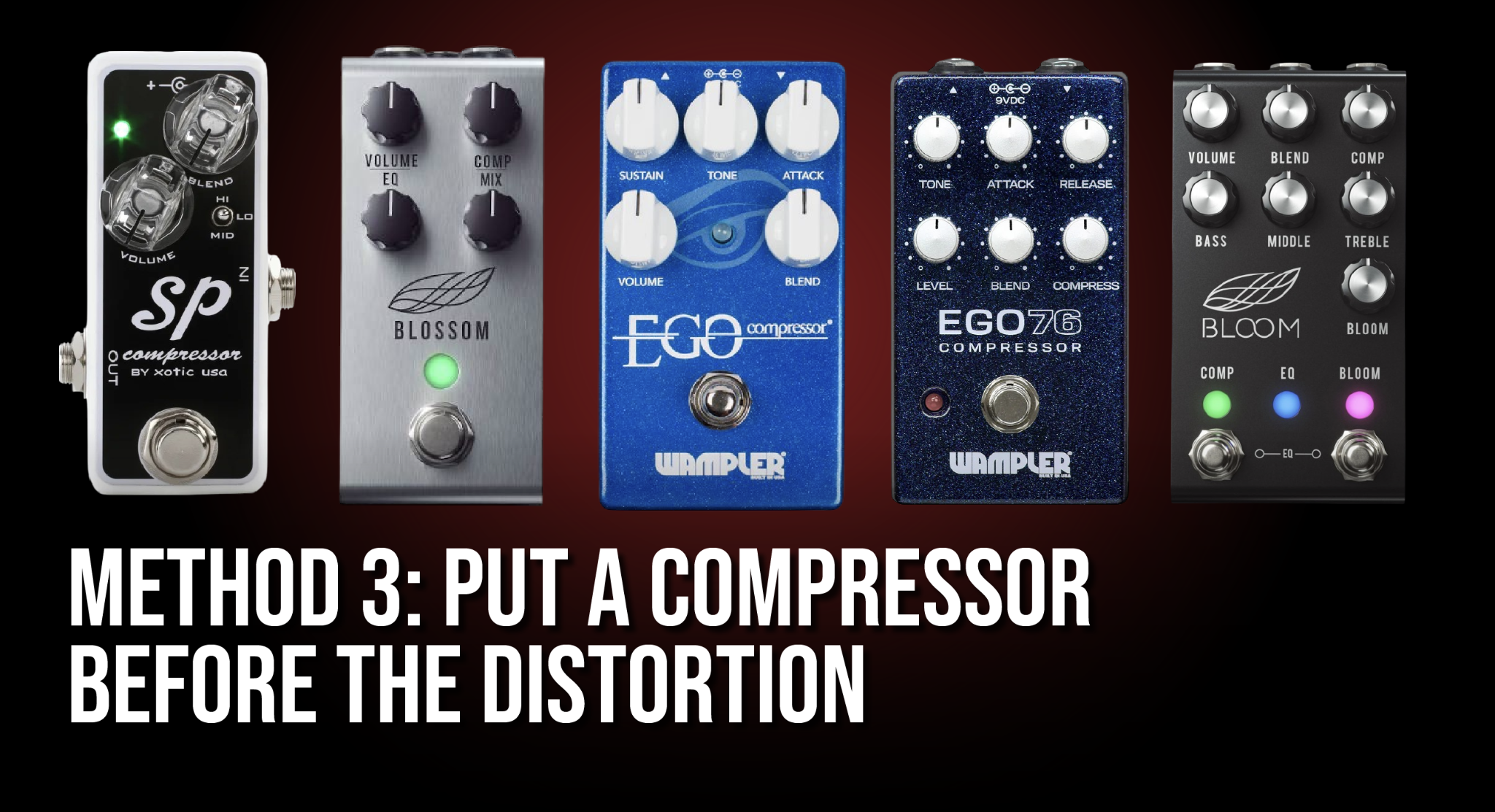

Compression is normally associated with clean guitar, funk, country or sustained lead tones. However, a compressor before a distortion circuit can also make heavy rhythm playing feel more forceful and consistent.

A compressor reduces the difference between louder and quieter parts of the signal. Depending on its attack setting, it can also reshape the beginning of each note.

For heavy chugs, the aim is not to remove all dynamics. The aim is to feed the distortion pedal or amplifier with a more consistent signal while allowing enough initial pick attack to punch through.

The chain is:

Guitar → compressor → overdrive or fuzz → high-gain amp

Why Attack Time Matters

The attack control determines how quickly the compressor reacts after you strike the string.

A very fast attack clamps down on the transient immediately. This can make the note smoother, but it may remove the hard front edge that makes a chug feel percussive.

A slightly slower attack allows the initial pick transient to pass before the compressor begins reducing the level. The result can be a more pronounced “hit” followed by a controlled body.

Start with:

• Compression or sustain: low to moderate
• Attack: medium or moderately slow
• Blend: 40–60% compressed, where available
• Output: slightly above unity
• Release: fast enough to recover before the next chug
• Amplifier gain: reduced slightly if the tone becomes noisy

The compressor’s output can also act as a boost. This is part of the effect: a stronger and more consistent signal hits the overdrive or amplifier harder.

Do Not Overcompress the Guitar

High-gain distortion already compresses the signal significantly. Adding heavy compression before it can produce:

• Increased hiss.
• Excessive feedback.
• Reduced pick dynamics.
• A flat, lifeless response.
• Poor separation between rapid palm-muted notes.

Use less compression than you think you need. The effect should become obvious when bypassed, but it should not make every note the same volume regardless of how you play.

Xotic SP Compressor: Compact Parallel Compression

The Xotic SP Compressor offers a dry blend control, up to 15dB of boost and internal attack adjustment. The blend is useful because it allows some uncompressed pick attack to remain while compressed signal adds density underneath it.

Begin with the compression switch on its lower setting, keep the blend around noon or slightly below, and raise the output enough to drive the next pedal.

This is one of the simplest options for experimenting with compression before high gain without completely replacing the natural response of the guitar.

Jackson Audio Blossom: Smooth Optical Control

The Jackson Audio Blossom Optical Compressor uses an optical compression design. Optical compressors are often valued for a smoother, less abrupt response than some harder-clamping compressor types.

For chugging, this can help even out the signal without making the attack feel obviously squashed. It is a suitable choice when you want more consistency and sustain but still want the rig to respond naturally to changes in picking strength.

Wampler Ego Compressor: Blend the Attack Back In

The Wampler Ego Compressor is another useful parallel-compression option. Its blend control allows the dry signal to retain articulation while the compressed component adds body and consistency.

Keep the sustain control restrained. Higher compression settings can raise the noise floor, particularly when the compressor is feeding overdrive, fuzz and an already high-gain amplifier.

Wampler Ego 76: More Control over the Envelope

The Wampler Ego 76 Compressor is inspired by the behaviour and controls associated with 1176-style studio compression. For this application, its attack and release controls are particularly useful.

Try a medium-slow attack to preserve the pick transient and a medium-fast release so the compressor recovers between notes. If it releases too slowly, several chugs may be pulled into one continuous compressed phrase.

Jackson Audio Bloom: Compression, EQ and Boost in One Pedal

The Jackson Audio Bloom Optical Compressor/EQ/Boost combines several of the techniques in this article in one unit. It provides multiple compression modes alongside EQ and clean boost functions.

That allows you to build a complete breakdown preset from one pedal:

• Compression for more consistent input.
• EQ for a stronger midrange attack.
• Boost to drive the following gain stage.

It is the most flexible option here for players who want one pedal to control dynamics, frequency shape and level together.

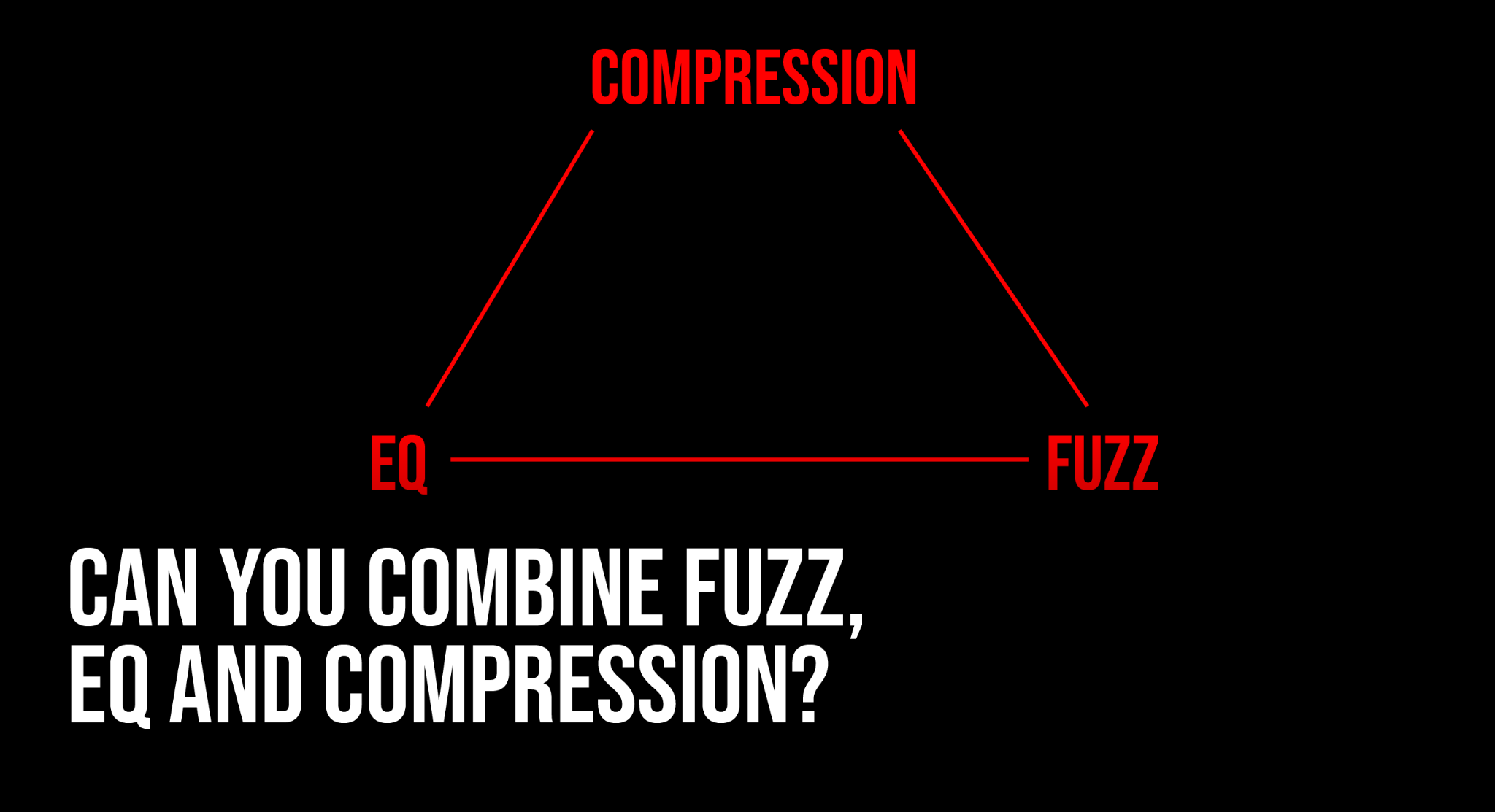

Yes, but adding all three requires restraint.

A complete chain could be:

Guitar → compressor → fuzz → overdrive → high-gain amp → effects-loop EQ

Each pedal has a separate role:

• Compressor: controls the incoming pick signal.
• Fuzz: generates the broken, abrasive texture.
• Overdrive: removes looseness and pushes the amp.
• Amplifier: supplies the main high-gain voice.
• Post-EQ: removes mud or harshness from the final result.

Start by activating one additional pedal at a time. If every stage is heavily saturated, boosted and compressed, troubleshooting becomes difficult.

A safer order is:

1. Build the amp tone.
2. Add the overdrive.
3. Add fuzz at a low setting.
4. Correct the result with EQ.
5. Add only a small amount of compression if the picking still needs more consistency.

Three Starter Chains to Try

Tight but Nastier

Guitar → compressor → overdrive → high-gain amp

Use low compression, a moderately slow attack and a small output boost. This retains the familiar modern metal structure but makes the pick attack more consistent and forceful.

Breakdown Destroy Tone

Guitar → Muff-style fuzz → overdrive → high-gain amp

Keep the fuzz sustain low, raise its output and use the overdrive to tighten the signal before it reaches the amp. Activate the fuzz only for breakdowns or selected accents.

Broken Industrial Chug

Guitar → gated or biased fuzz → overdrive → high-gain amp → effects-loop EQ

Adjust the fuzz bias until the decay becomes abrupt and damaged. Use the post-EQ to remove low-mid congestion and emphasise an aggressive midrange frequency.

The chugs have become too soft

Reduce the fuzz sustain, lower the amplifier gain and increase the overdrive output. You may also need more upper midrange before the amplifier.

The tone is huge alone but disappears with the band

Reduce the bass and add some 400Hz–1.6kHz midrange. A guitar sound needs midrange to remain audible beside bass guitar, kick drum and cymbals.

The rig produces too much noise

Reduce compressor sustain, fuzz level or amplifier gain. Check power supplies and cable routing. A noise gate can help between riffs, but it cannot repair a fundamentally noisy gain structure.

Fast chugs blur together

Use less low-frequency boost before distortion. Shorten the compressor release, reduce fuzz sustain and make sure the amplifier is not using more gain than necessary.

The compressor makes the picking weaker

Use a slower attack or increase the dry blend. The goal is to let part of the initial transient through, not crush it immediately.

The fuzz sounds thin and broken

The bias or gating may be set too aggressively. Move it back towards a fuller response until the chug regains enough body.
