Many bassists build their entire sound around one signal path: bass into pedals, pedals into an amplifier, and the amplifier into a speaker cabinet. They adjust the EQ until it sounds large beside the amp, increase the drive for more aggression, and turn up whenever the guitars begin covering the bass. The result may sound impressive on stage, yet become muddy, thin or strangely absent once it reaches the recording or front-of-house mix.

Professional bass tones are often shaped differently. Instead of asking one signal to provide deep lows, clear notes, attack, distortion and amplifier character at the same time, engineers divide those jobs between different layers. A clean signal preserves the foundation, while a driven or preamp-shaped signal adds attitude and presence. The Tech 21 SansAmp RBI Bass Preamp brings that studio-inspired approach into a rackmount system designed for recording, direct-to-PA setups and serious live bass rigs.

When you listen to a finished record, you are not necessarily hearing one microphone placed in front of one bass cabinet.

The recorded bass may include:

• A clean direct injection, or DI, signal.
• A miked bass amplifier.
• A driven preamp or amplifier simulation.
• Parallel distortion.
• Compression.
• EQ applied to separate frequency ranges.
• Several layers blended into one final sound.

This is done because bass has several jobs to perform at once.

The lowest frequencies give the music weight and connect with the kick drum. The low mids give notes body. The upper mids help the bass remain audible beside distorted guitars. The higher harmonics reveal pick attack, string noise and aggression.

Trying to create all of this by simply turning up the bass control or adding more distortion can cause problems. More low end may become boomy through a large PA. Heavy distortion can reduce the clarity of the fundamental note. Scooped mids may sound enormous alone but disappear once the full band begins playing.

A professional bass sound is therefore less about finding one magical setting and more about controlling the different parts of the signal.

One of the most useful approaches in bass recording is to capture a clean DI signal while also recording or creating a more coloured bass tone.

The basic idea looks like this:

Bass → Clean DI track

and:

Bass → Preamp, drive or amplifier tone → Processed track

The two tracks are then blended.

What the clean DI contributes

The clean DI retains the direct sound of the instrument before amplifier or speaker colouration. It can provide:

• Solid fundamental notes.
• Clear low-frequency information.
• Fast transient response.
• Natural playing dynamics.
• A reliable signal for later processing.
• Additional editing or re-amping options.

This does not mean that a clean DI automatically sounds finished. On its own, it may feel plain, hard or disconnected from the rest of the music. Its value is that it preserves the core of the performance.

What the processed signal contributes

The second signal provides the character that listeners recognise as a finished bass tone.

It may add:

• Amplifier-style saturation.
• Speaker-like high-frequency shaping.
• Midrange growl.
• Harmonic detail.
• Pick or finger attack.
• Compression and density.
• The feeling of air and movement associated with a bass rig.

The clean layer supplies the foundation. The processed layer supplies the personality.

This is why heavily driven bass can still sound deep and controlled on a professional recording. The distorted layer does not always need to carry the entire low end by itself.

Distortion adds harmonics above the original note. These harmonics can make bass more audible through smaller speakers and help it cut through guitars, keyboards and cymbals.

However, distortion also changes the dynamics and frequency balance of the instrument. Depending on the circuit and settings, the low end may feel less focused, the note centre may become harder to identify, and the upper mids may dominate the sound.

The common reaction is to add more bass to the distorted signal. This can create a large but unfocused tone that competes with the kick drum and becomes difficult for a front-of-house engineer to control.

A more effective approach is to preserve some clean signal and add distortion around it.

This can be achieved in several ways:

• Recording a separate clean DI.
• Splitting the bass into clean and driven amplifier channels.
• Using parallel processing in a DAW.
• Using a bass preamp with a Blend control.
• Sending both processed and uneffected outputs to separate mixer channels.

This is where the Tech 21 SansAmp RBI becomes especially useful.

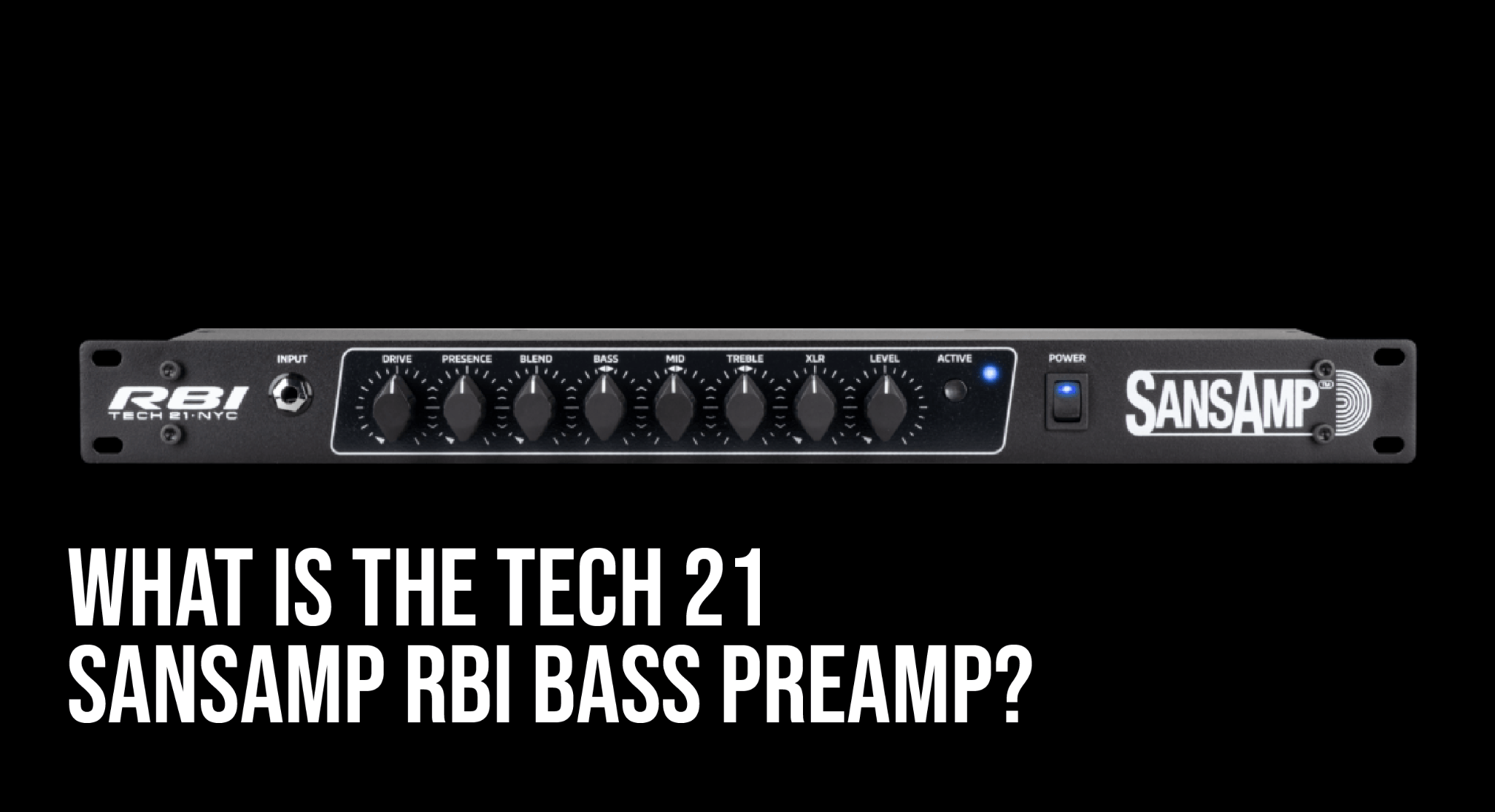

The Tech 21 SansAmp RBI Bass Preamp is a 19-inch rackmount analogue bass preamp based on the company’s SansAmp Bass Driver DI concept.

It is not simply a distortion unit in a larger enclosure. The RBI is designed to serve as the central tone and routing section of a live or studio bass system.

It can be used:

• Directly into a PA mixer.
• Directly into a recording interface or console.
• In front of a conventional bass amplifier.
• As a preamp feeding a power amplifier.
• With a powered full-range monitor.
• As part of a permanent rack or patchbay system.
• Alongside a separate clean DI path.

Its SansAmp circuitry models the broader behaviour of an amplifier signal chain, including preamp drive, power-amplifier-style response and speaker simulation. This allows the RBI to produce an amp-shaped direct signal without requiring a microphone in front of a physical cabinet.

The result is a consistent signal that can travel directly to front of house or a recording system.

Pedal-format preamps are convenient, but rackmount equipment remains useful when the bass rig forms part of a larger touring or production system.

A rack installation can keep the preamp together with:

• Wireless receivers.
• Power conditioners.
• In-ear monitoring equipment.
• Power amplifiers.
• Rack tuners.
• Patch panels.
• Switching systems.
• Recording or broadcast connections.

The RBI provides front and rear input options, making it practical for a permanent rack. A player can keep the normal system connected at the rear while retaining a front-panel input for quick access.

This is the type of equipment that may not attract attention in the same way as a colourful pedalboard, but it solves real professional problems: repeatability, routing, output control and integration with the PA.

The Blend control is one of the most important parts of the RBI.

It mixes the direct instrument signal with the SansAmp Tube Amplifier Emulation signal. Turning Blend towards the SansAmp side introduces more amplifier-style colour, speaker shaping and harmonic character. Reducing it allows more of the direct instrument response to remain.

This gives you a way to balance:

• Clean note definition.
• Low-frequency firmness.
• Amplifier-like drive.
• Upper harmonic attack.
• Speaker-shaped high frequencies.

However, there is an important distinction.

The Blend control mixes clean and SansAmp character inside the RBI’s processed output. It does not replace the separate uneffected output when an engineer wants a completely independent dry track or mixer channel.

For maximum front-of-house or studio flexibility, you can use both:

SansAmp XLR Output → Processed mixer channel

Uneffected XLR Output → Clean mixer channel

The engineer can then control the level, EQ and compression of each signal separately.

The RBI provides more control than a basic DI box because each front-panel control performs a different job in the finished bass sound.

Drive: Add saturation and density

The Drive control adjusts the amount of gain and overdrive generated by the SansAmp circuit.

At lower settings, it can add subtle thickness and amplifier-like response. At higher settings, it produces stronger saturation and a more aggressive upper-midrange character.

Increasing Drive does not simply make the sound louder. It changes how the signal clips and compresses. As Drive rises, you may need to reduce Presence or Blend to prevent the sound from becoming too abrasive.

Presence: Control attack and upper harmonics

The Presence control brings forward upper harmonic content and attack.

This can help the bass remain audible through dense guitars, particularly when using a pick. It can also make fingerstyle articulation clearer through a PA.

Too much Presence may emphasise fret noise, string clank or harshness. Set it while listening through the full speaker system rather than judging only through a bass cabinet beside you.

Blend: Balance direct response and SansAmp colour

The Blend control determines how much of the SansAmp emulation enters the processed signal.

A higher setting gives you more of the SansAmp character. A lower setting keeps the response closer to the direct bass.

There is no universal correct position. A cleaner pop, worship or R&B setting may use less Drive and a more restrained Blend. Rock, punk and metal players may increase both controls for more grind and density.

Bass: Shape the low-frequency foundation

The RBI’s active Bass control is centred at 80Hz and can boost or cut by up to 12dB.

This region contributes weight and impact, but it must be handled carefully. What sounds modest through a small rehearsal cabinet may become enormous through subwoofers at a venue.

Begin at noon. Add only enough bass to provide the required foundation. If the sound becomes loose or competes with the kick drum, reduce it rather than increasing the overall volume.

Mid: Decide whether the bass is heard

The active Mid control is centred at 1kHz and provides up to 12dB of boost or cut.

This is a crucial area for bass audibility. A modest boost can bring out note shape, growl and definition. A large cut may create a smooth or spacious solo tone, but it can also allow guitars to cover the bass in a full arrangement.

Many players think their bass needs more low end when it actually needs more usable midrange.

Treble: Control brightness and definition

The active Treble control is centred at 3.2kHz.

This range affects string detail, attack and brightness. Boosting it can improve clarity, while cutting it can soften noisy strings, excessive pick click or harsh drive.

Treble and Presence overlap in perceived function but do not behave identically. Use Treble for broader high-frequency shaping and Presence for the character of the upper harmonic attack.

Level and XLR controls: Feed each destination correctly

The RBI includes separate level controls for its quarter-inch and XLR outputs.

This is useful when the onstage amplification and front-of-house system require different signal levels. You can feed a stage amplifier or power amplifier from the quarter-inch output while controlling the PA feed independently through the XLR section.

The aim is not to send the loudest possible signal. The aim is to send a healthy level that does not overload the next device.

One of the RBI’s most valuable professional features is its buffered uneffected XLR output.

This output carries the direct bass signal without SansAmp processing. It allows the same performance to reach a second recording or mixer channel while the main SansAmp output provides the shaped tone.

A live setup could look like this:

Bass → SansAmp RBI

RBI SansAmp XLR Out → FOH Channel 1: driven and shaped tone

RBI Uneffected XLR Out → FOH Channel 2: clean bass tone

The front-of-house engineer can then use the clean channel for stable low end and note definition, while blending the SansAmp channel for grit, midrange and character.

This is the live version of the studio technique discussed earlier.

It is also useful during recording. Even when the RBI tone sounds finished, capturing the uneffected signal gives the engineer a backup. The clean track can be compressed differently, processed with plugins or re-amped later.

The SansAmp RBI includes an effects loop with a Mix 50/50 switch.

In series operation, the full RBI signal passes through the connected processor before reaching the output.

The path is:

Bass → RBI processing → External effect → Output

This is suitable when the effect needs to process the complete signal.

With the Mix 50/50 function engaged, half of the RBI signal passes through the effects processor while the other half continues directly to the outputs.

The simplified path becomes:

RBI signal → Dry RBI path + Effected path → Output

This can help preserve the body and definition of the bass while adding effects in parallel.

It is particularly useful for effects that may weaken the centre of the bass sound, such as:

• Heavy distortion.
• Modulation.
• Delays.
• Reverbs.
• Some digital multi-effects.
• Aggressive filtering.

When using the parallel loop, set the external effect to fully wet where possible. You can then control the effect level from the processor without mixing another dry signal into the return path.

A professional live setup does not need to be complicated. Each signal path simply needs a clear purpose.

Option 1: One shaped output to the PA

Bass → RBI → SansAmp XLR Output → PA

Use this when you need a simple, consistent direct tone and the front-of-house engineer has limited channels.

Set Blend, Drive and EQ to produce a finished sound that already works through the main PA.

Option 2: Separate clean and driven channels

Bass → RBI SansAmp XLR → FOH Channel 1

RBI Uneffected XLR → FOH Channel 2

This provides the engineer with maximum control. The clean signal can carry the lows while the processed channel supplies the character.

Option 3: PA feed plus stage amplification

RBI SansAmp XLR → FOH

RBI quarter-inch output → Power amplifier, powered monitor or bass amplifier

This lets the audience receive the consistent SansAmp signal while the bassist retains a physical stage monitor or cabinet.

Option 4: RBI with parallel external effects

Bass → RBI → Parallel effects loop → XLR to PA

Use the RBI’s 50/50 loop when you want effects without handing the entire signal over to the external processor.

Three RBI Starting Points

These settings are intended as starting points. Active and passive basses, pickup output, strings, technique, PA systems and musical arrangements will all change the result.

Clean and full live tone

• Drive: 9 o’clock
• Presence: 10–11 o’clock
• Blend: 11 o’clock
• Bass: noon
• Mid: 12–1 o’clock
• Treble: 11 o’clock

This keeps the sound controlled while adding subtle amplifier character.

Rock and punk grind

• Drive: 1–2 o’clock
• Presence: noon
• Blend: 1–2 o’clock
• Bass: 11 o’clock
• Mid: 1–2 o’clock
• Treble: noon

The reduced bass and stronger midrange can help the instrument remain audible beside distorted guitars.

Heavy driven tone with a clean FOH layer

• Drive: 2–3 o’clock
• Presence: 1 o’clock
• Blend: 2–3 o’clock
• Bass: 10–11 o’clock
• Mid: 1–2 o’clock
• Treble: 11 o’clock

Send the SansAmp output to one mixer channel and the uneffected XLR output to another. Let the clean channel carry the fundamental while the RBI channel supplies the aggression.

Geddy Lee is strongly associated with layered and parallel bass tones. His rigs have often treated clean depth and aggressive upper-midrange character as separate but complementary elements.

Tech 21 states that Lee used the SansAmp RBI and SansAmp RPM in live and studio rigs from 2001. The company later worked with him on the GED-2112 rackmount preamp, which formalised his parallel approach through separate internal preamp paths.

The importance of that example is not that every bassist should copy Geddy Lee’s exact tone. It demonstrates the larger principle behind many professional bass rigs:

deep clean foundation plus aggressive processed character.

The RBI gives players a practical way to work towards that philosophy without constructing two complete amplifier systems.

Adding more bass whenever the instrument disappears

The bass may be disappearing because it lacks midrange, not because it lacks low-frequency level. Try adding a controlled amount around the RBI’s Mid region before increasing Bass.

Sending extreme stage EQ to front of house

A tone adjusted beside a bass cabinet may behave very differently through a full-range PA. Build the direct tone while monitoring through suitable full-range speakers whenever possible.

Using too much drive on the only signal

If the entire bass signal is heavily saturated, the lowest notes may lose definition. Reduce Drive, reduce Blend or provide a separate clean output.

Cutting the mids for a bigger solo sound

A deep mid scoop can sound wide and polished alone. In the band mix, those missing mids may be exactly where the bass needs to speak.

Assuming the cabinet sound is what the audience hears

If the bass is sent directly to the PA, the audience may primarily hear the DI or preamp output rather than the stage cabinet. Treat the direct signal as part of the main instrument, not merely a backup connection.

Ignoring input and output levels

Active basses, pedals and rack processors can produce very different signal levels. Match the RBI input appropriately and avoid overloading the mixer or recording interface.
