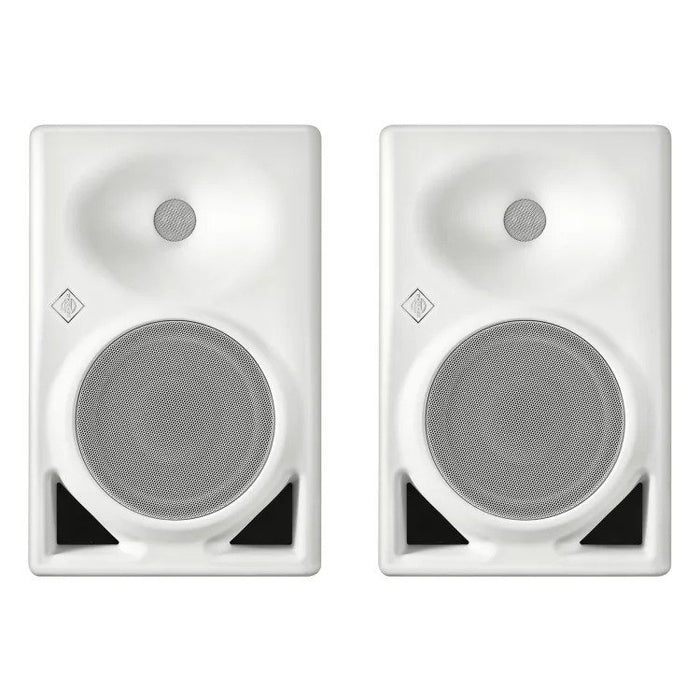

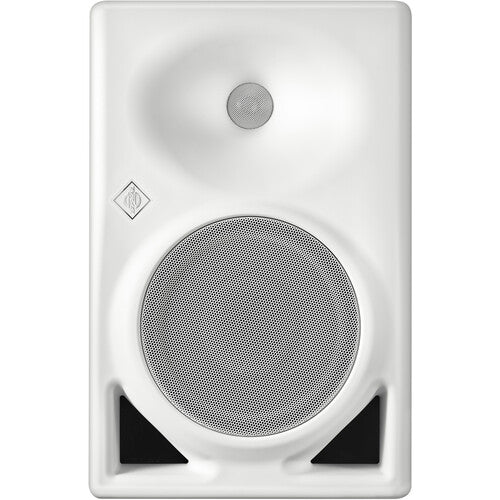

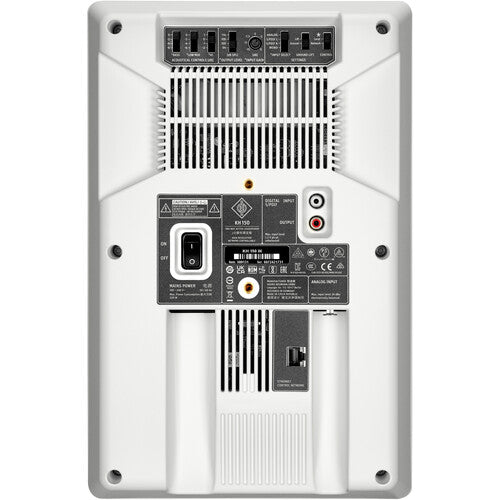

Neumann KH 150 6.5-inch 2-way Powered Studio Monitor (KH150 / KH 150 A W UK)

The Neumann KH 150 is a bi-amplified studio monitor with reference-grade performance that belies its compact size. This makes it ideal for both nearfield and midfield deployment in small-to-mid-sized control rooms. Neumann’s new 6.5-inch woofer, the result of over three years of intensive research and development, is integrated into a meticulously engineered 20-liter bass reflex cabinet, allowing this state-of-the-art monitor to achieve impressively deep and tight bass response down to 39Hz and a maximum SPL of 118dB; meanwhile, a specially designed 1-inch tweeter serves up crystalline clarity extending up to 21kHz. Powered, respectively, by 145 watts and 100 watts of energy-efficient Class D bi-amplification and assisted by Neumann’s Mathematically Modeled Dispersion (MMD) waveguide, these drivers deliver unerring accuracy over a broad sweet spot, while minimizing desk reflections.

FEATURES

• Deep, tight low end; smooth, extended highs

• Razor-sharp stereo soundstaging

• Linear frequency response 39Hz–21kHz (±3dB)

• Efficient Class D bi-amplification: 145W (LF), 100W (HF); consumes only 17W at idle

• High-precision custom drivers

• Mathematically Modeled Dispersion (MMD) waveguide

• DSP engine for optimized performance and room adaptive calibration via optional MA 1

• Linear phase response, 105Hz–16kHz (±45°), with latency <2.6ms

• Advanced crossover and protection limiters

• Engineered to extremely tight (±0.8dB) tolerances

• Robust maximum SPL rating of 118dB at 1 meter

• Meticulously engineered 20-liter bass reflex cabinet

• Analog and S/PDIF connectivity (optional: AES67)

• May be combined with other KH series speakers in immersive/surround configurations

SPECIFICATIONS

• Powered:    Yes

• Power Configuration:    Bi-amped

• Quantity:    Single

• LF Driver Size:    6.5" Woofer

• HF Driver Size:    1" Tweeter

• LF Driver Power Amp:    145W

• HF Driver Power Amp:    100W

• Total Power:    245W Class D

• Frequency Response:    36Hz-21kHz

• Crossover Frequency:    48 dB/octave @ 1700Hz

• Maximum Peak SPL:    118.7 dB SPL @ 1m

• Input Types:    1 x XLR, 1 x Coax (S/PDIF)

• Output Types:    1 x Coax (S/PDIF)

• Other I/O:    1 x RJ45 (Ethernet Control Network)

• Features:    DIP switches, Tilt, Input Gain, Input Selector

• Software:    Neumann MA 1 Monitor Alignment App

• Enclosure Type:    Front Ported

• Enclosure Material:    Composite polycarbonate front and rear, wooden sleeve

• Height:    13.58"

• Width:    8.86"

• Depth:    10.75"

• Weight:    17.63 lbs.
