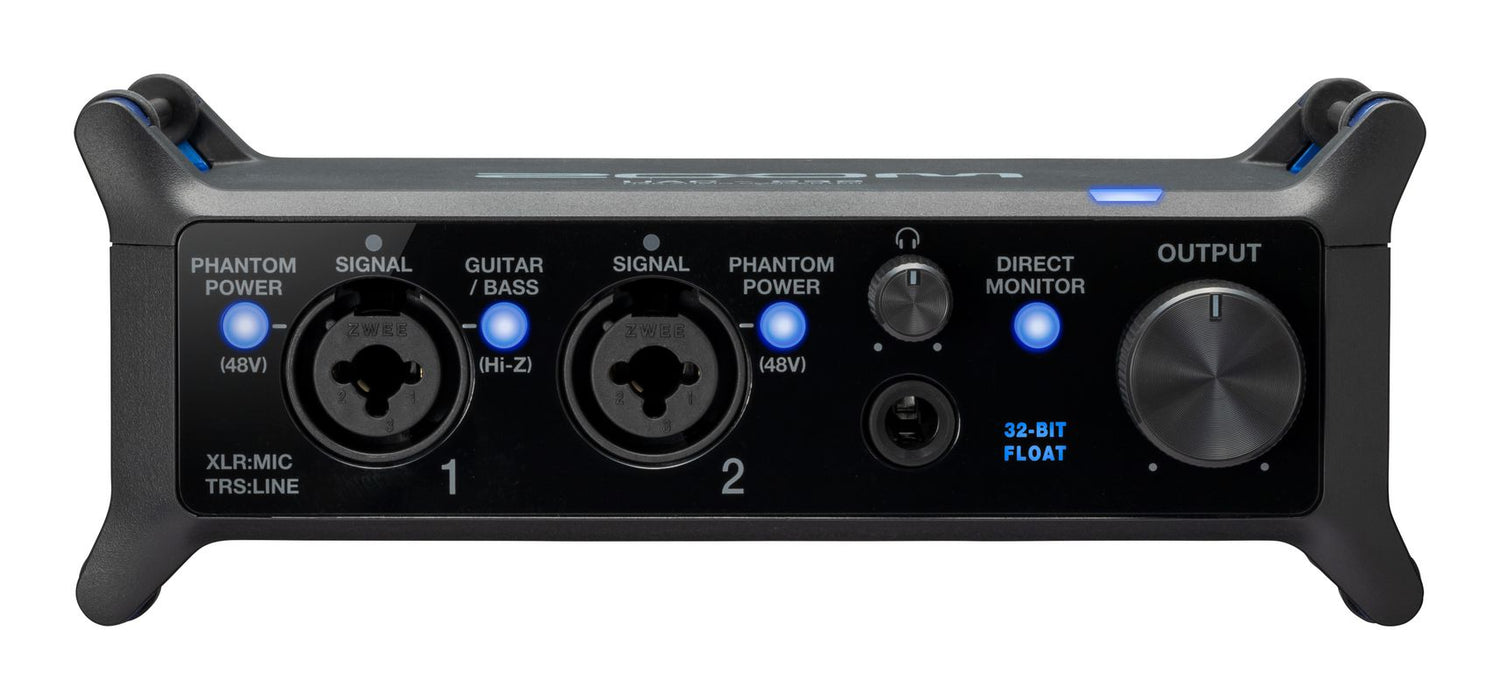

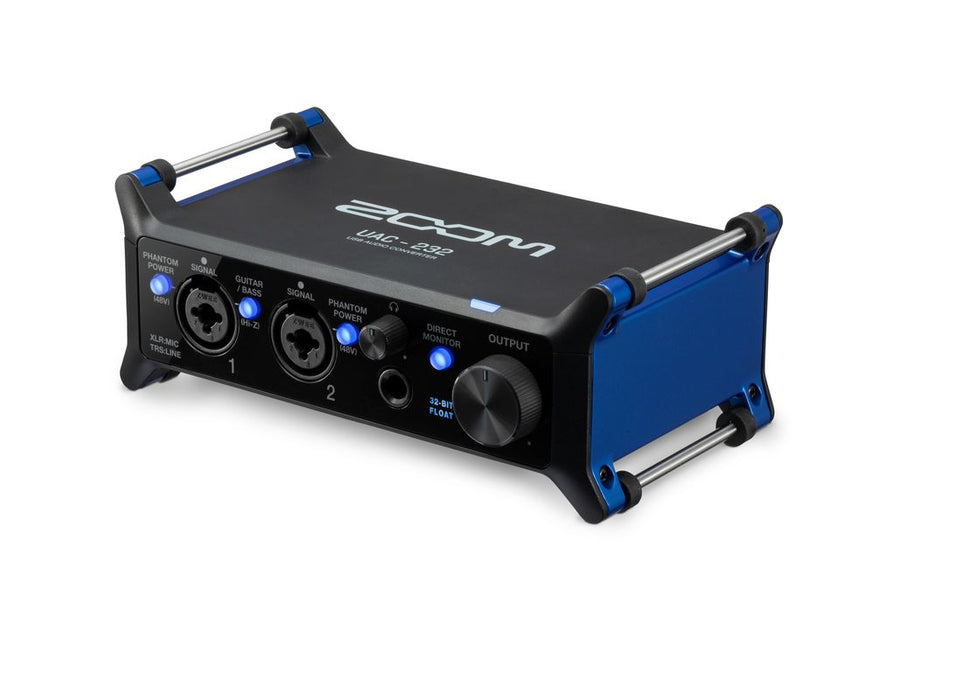

Zoom UAC-232 USB 2.0 Audio Interface (UAC232)

The Zoom UAC-232 USB 2.0 Audio Interface is tailor-made for podcasters, musicians, streamers, and recording artists of all stripes. The UAC-232 builds on the success of the UAC-2 but ups the ante with an incredible 32-bit/192kHz A/D resolution, USB-C 2.0 connectivity, and a more lightweight chassis design. This low-latency recording interface combines microphone preamps equivalent to those in the F6, direct instrument inputs, and line-level support with onboard MIDI I/O to give you a wide range of workflow options. Whatever you need to record, the Zoom UAC-232 has you covered. Plus, each input stands ready with a +48V phantom power switch available for condenser mics. Lastly, users can activate the hi-Z by clicking the Guitar/Bass button to record directly.

FEATURES

• Incredibly clear, low-latency 32-bit float technology

• Dual A/D circuitry for exceptional sound

• Dual XLR/TRS combo inputs, headphone output for monitoring, and 2 TRS outputs

• USB C 2.0 connectivity, bus-powered input

• Lightweight chassis is easily positioned anywhere you need

• Mic preamps equivalent to the high-quality preamps in Zoom's F6
  +48V phantom power available on each input

• Use the Guitar/Bass button to activate hi-Z for recording guitar

• Mix Control software makes it easy to route signals, monitor levels, and more

• Can use with Windows, Mac, and even iOS devices

SPECIFICATIONS

• Computer Connectivity:    USB 2.0

• Form Factor:    Desktop

• Simultaneous I/O:    2 x 2

• Number of Preamps:    2 x mic

• Phantom Power:    Yes

• A/D Resolution:    Up to 32-bit float/192kHz

• Analog Inputs:    2 x XLR-1/4" combo (mic/line)

• Analog Outputs:    2 x 1/4" TRS

• Headphones:    1 x 1/4"

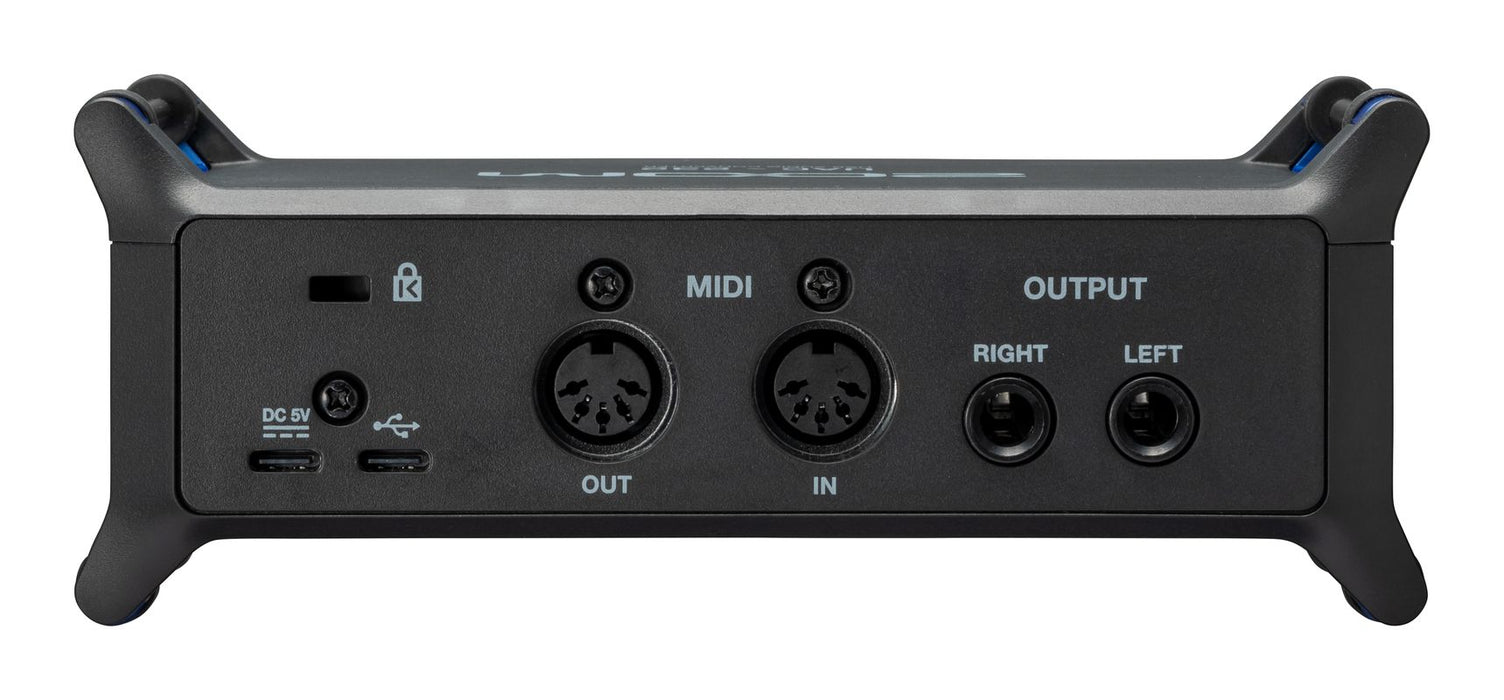

• MIDI I/O:    In/Out/USB

• USB:    1 x Type C

• Software:    Zoom Mix Control

• Bus Powered:    Yes

• Power Supply:    5V DC power supply / USB bus powered

• Height:    2.55"

• Width:    6.45"

• Depth:    4.15"

• Weight:    0.78 lbs.
